18765 - Toro 60" Z Master Revolution Zero-Turn Mower (SN: 415000000 - 416499999) Battery Assembly Parts Diagram

60" Z Master Revolution Zero-Turn Mower

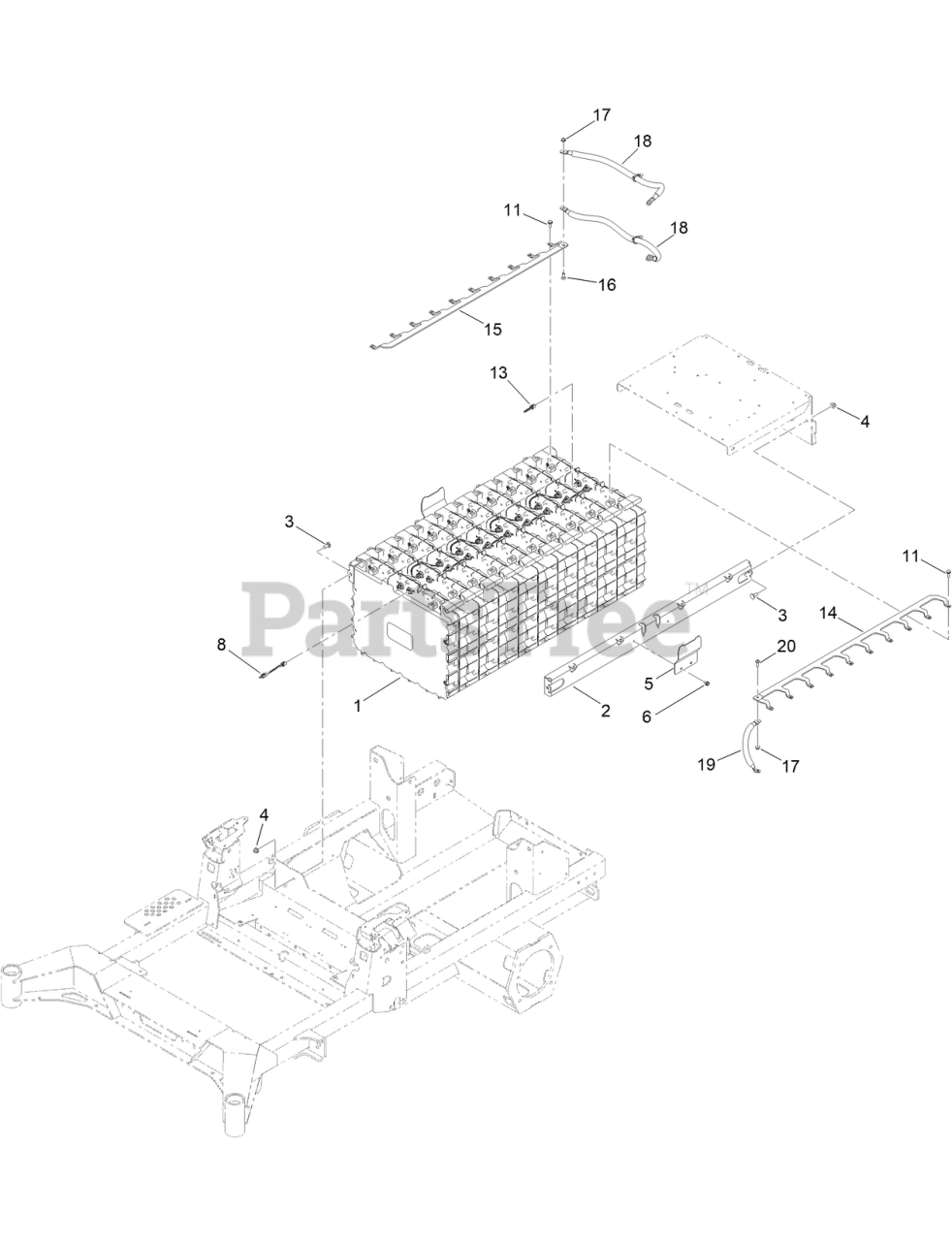

Battery Assembly Parts Diagram

  • Title

1

Toro 145-5320

BATTERY ASM

$2456.99

$

Usually ships in 3-6 days

0

2

Toro 147-7809-03

PLATE-RETAINER

$44.99

$

Usually ships in 3-6 days

0

3

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 147-7773-03

PLATE-COVER

$15.99

$

Usually ships in 3-6 days

0

6

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

8

Toro 140-9565

HARNESS-WIRE, DATA INTERFACE

$61.99

$

Usually ships in 3-6 days

0

11

Toro 145-5783

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

13

Toro 122-2323

HARNESS-WIRE, CAN TERMINATOR

$36.99

$

Usually ships in 3-6 days

0

14

Toro 147-1666

BUSBAR-10, BK

$231.99

$

Usually ships in 3-6 days

0

15

Toro 147-1632

BUSBAR-10, RD

$231.99

$

Usually ships in 3-6 days

0

16

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

17

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 147-4560

CABLE-BATTERY, RD ASM

$70.99

$

Usually ships in 3-6 days

0

19

Toro 147-4570

CABLE-BATTERY, BK ASM

$45.99

$

Usually ships in 3-6 days

0

20

Toro 138-0689

SCREW-PH

$1.49

$

Usually ships in 3-6 days

0

99

Toro 145-1070

CHARGER-3300W

Note: Not illustrated

$1979.99

$

Usually ships in 3-6 days

0
