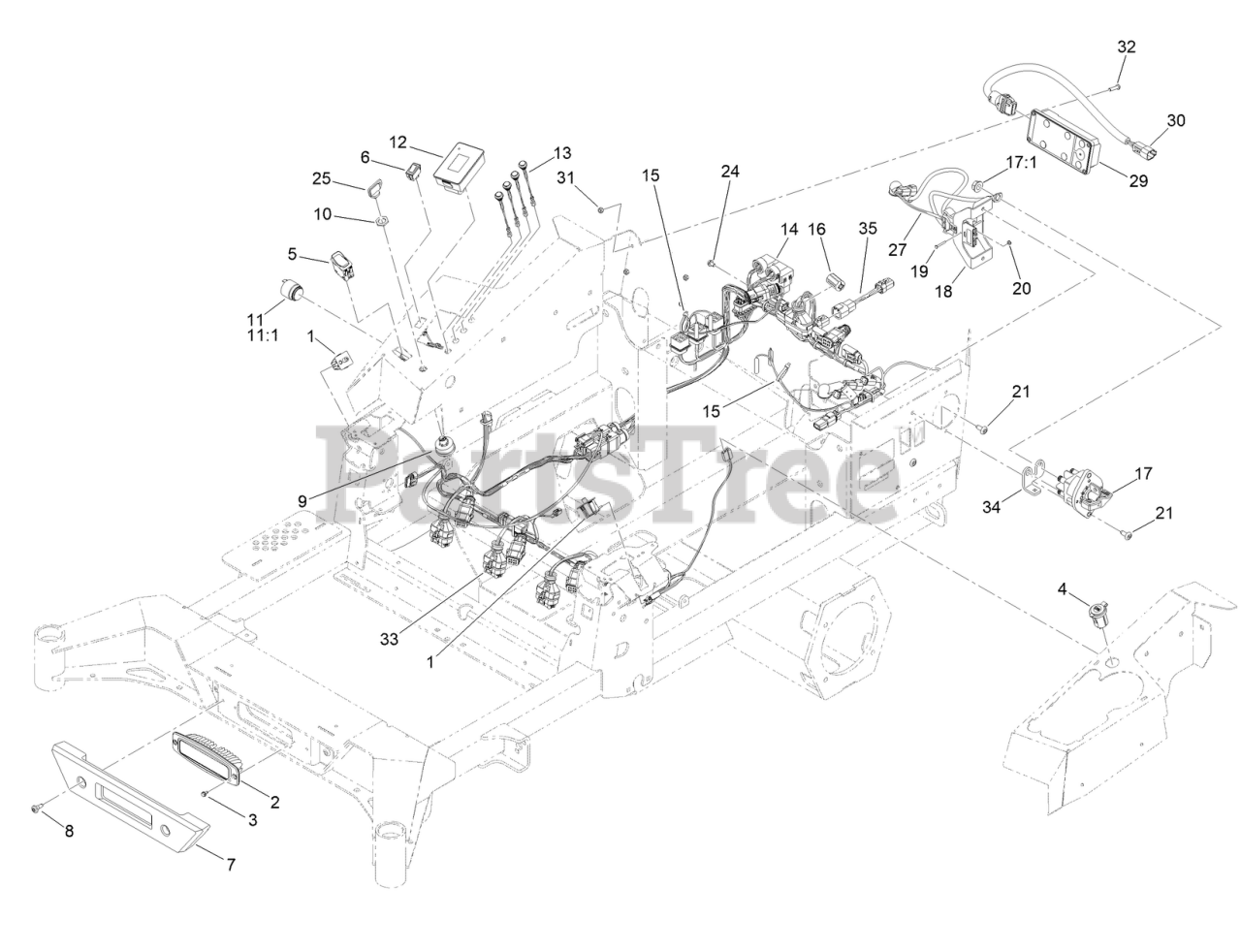

18765 - Toro 60" Z Master Revolution Zero-Turn Mower (SN: 415000000 - 416499999) Electrical and Wire Harness Assembly Parts Diagram

60" Z Master Revolution Zero-Turn Mower

Electrical and Wire Harness Assembly Parts Diagram

  • Title

1

Toro 145-3520

SWITCH-PLUNGER, ON-(ON)

$26.99

$

Usually ships in 3-6 days

0

2

Toro 139-8089

MOUNT-FLUSH, LIGHT

$108.99

$

Usually ships in 3-6 days

0

3

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

4

Toro 140-7955

PORT-POWER, USB

$39.99

$

Usually ships in 3-6 days

0

5

Toro 139-6368

SWITCH-ROCKER, ON-NONE-ON

$37.99

$

In Stock, Qty 12

0

6

Toro 92-8875

SWITCH-ROCKER

$18.99

$

In Stock, only 2 left!

0

7

Toro 140-4993

BUMPER-FRONT
(Superseded to 147-7853)

$41.99

$

Usually ships in 3-6 days

0

8

Toro 135-2015

SCREW-SHOULDER

$3.99

$

In Stock, only 1 left!

0

9

Toro 139-7716

SWITCH-KEY, SPST

$43.99

$

Usually ships in 3-6 days

0

10

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

11

Toro 80-9330

AUDIO ALARM ASM

$161.99

$

Usually ships in 3-6 days

0

11:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$6.49

$

Usually ships in 3-6 days

0

12

Toro 122-1201

TDM 2002

$229.99

$

Usually ships in 3-6 days

0

13

Toro 136-9678

SWITCH-PUSHBUTTON

$63.99

$

Usually ships in 3-6 days

0

14

Toro 144-2673

HARNESS-WIRE, MAIN

$1817.99

$

Usually ships in 3-6 days

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 139-7720

FERRITE, SNAP-ON

$9.99

$

Usually ships in 3-6 days

0

17

Toro 122-0603

SWITCH-DISCONNECT

$302.99

$

Usually ships in 3-6 days

0

17:1

Toro 33006-00

NUT-HF

$1.99

$

Usually ships in 3-6 days

0

18

Toro 145-3597-03

BRACKET-CHARGER, DUAL

$31.99

$

Usually ships in 3-6 days

0

19

Toro 32105-9

SCREW

$1.49

$

In Stock, Qty 11

0

20

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

21

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

24

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

25

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

27

Toro 145-4800

HARNESS-WIRE, CHARGER PORT

$395.99

$

Usually ships in 3-6 days

0

29

Toro 139-8189

CONTROLLER, CALAMP-NA

$885.99

$

Usually ships in 3-6 days

0

30

Toro 147-0250

HARNESS-WIRE

$99.99

$

Usually ships in 3-6 days

0

31

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

32

Toro 112-9356

SCREW-HSBH

$3.99

$

Usually ships in 3-6 days

0

33

Toro 145-4807

HARNESS-WIRE, DECK

$1286.99

$

Usually ships in 3-6 days

0

34

Toro 147-0370

BUSBAR-2, SWITCH

$88.99

$

Usually ships in 3-6 days

0

35

Toro 161-3544

HARNESS-WIRE, JUMPER

$103.99

$

Usually ships in 3-6 days

0
