18765 - Toro 60" Z Master Revolution Zero-Turn Mower (SN: 415000000 - 416499999) Electrical Components Assembly Parts Diagram

60" Z Master Revolution Zero-Turn Mower

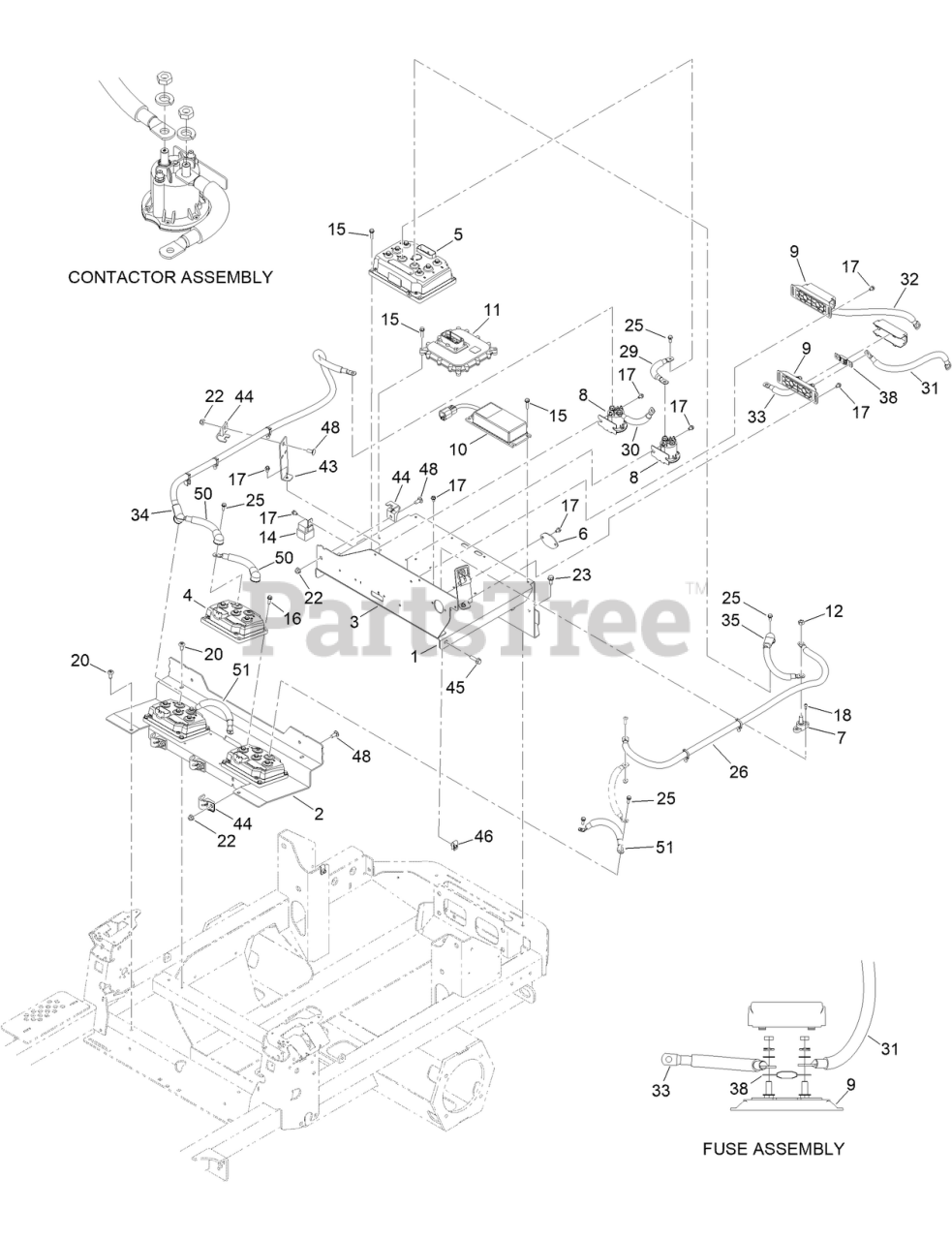

Electrical Components Assembly Parts Diagram

  • Title

1

Toro 147-1606-03

BRACKET-CHASSIS

$152.99

$

Usually ships in 3-6 days

0

2

Toro 147-1611-03

PLATE-CONTROLLER, DECK

$132.99

$

Usually ships in 3-6 days

0

3

Toro 161-3577-03

PLATE-MOUNT, FUSE

$32.99

$

Usually ships in 3-6 days

0

4

Toro 145-7270

INV/CTRLR-48V

$1754.99

$

Usually ships in 3-6 days

0

5

Toro 138-8984

INV/CTRLR-48V,DUAL 94Arms

$2534.99

$

Usually ships in 3-6 days

0

6

Toro 161-3548-03

PLATE-COVER

$1.99

$

Usually ships in 3-6 days

0

7

Toro 110-8823

BLOCK-JUNCTION

$52.99

$

Usually ships in 3-6 days

0

8

Toro 145-3542

CONTACTOR-DC, 12V

$96.99

$

Usually ships in 3-6 days

0

9

Toro 145-4958

HOLDER-FUSE

$31.99

$

Usually ships in 3-6 days

0

10

Toro 144-6975

CONVERTER DC-DC

$488.99

$

Usually ships in 3-6 days

0

11

Toro 127-2770

CONTROLLER

$1790.99

$

Usually ships in 3-6 days

0

12

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

14

Toro 70-1480

RELAY

$123.99

$

Usually ships in 3-6 days

0

15

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

16

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

17

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

18

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

20

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

25

Toro 145-5782

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

26

Toro 147-4567

CABLE-BATTERY, BK ASM

$93.99

$

Usually ships in 3-6 days

0

29

Toro 147-4564

CABLE-BATTERY, RD ASM

$25.99

$

Usually ships in 3-6 days

0

30

Toro 147-4563

CABLE-BATTERY, RD ASM

$30.99

$

Usually ships in 3-6 days

0

31

Toro 147-4561

CABLE-BATTERY, RD ASM

$54.99

$

Usually ships in 3-6 days

0

32

Toro 147-4562

CABLE-BATTERY, RD ASM

$63.99

$

Usually ships in 3-6 days

0

33

Toro 147-4563

CABLE-BATTERY, RD ASM

$30.99

$

Usually ships in 3-6 days

0

34

Toro 147-4565

CABLE-BATTERY, RD ASM

$104.99

$

Usually ships in 3-6 days

0

35

Toro 147-4568

CABLE-BATTERY, BK ASM

$34.99

$

Usually ships in 3-6 days

0

38

Toro 122-2561

FUSE-200A

$20.99

$

Usually ships in 3-6 days

0

43

Toro 147-1610-03

BRACKET-CABLE

$14.99

$

Usually ships in 3-6 days

0

44

Toro 145-6985

MOUNT-CABLE

$7.99

$

Usually ships in 3-6 days

0

45

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

46

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

48

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

50

Toro 147-0238

CABLE-BATTERY, RD ASM

$70.99

$

Usually ships in 3-6 days

0

51

Toro 147-0239

CABLE-BATTERY, BK ASM

$90.99

$

Usually ships in 3-6 days

0
