18765 - Toro 60" Z Master Revolution Zero-Turn Mower (SN: 415000000 - 416499999) Seat Suspension Assembly Parts Diagram

60" Z Master Revolution Zero-Turn Mower

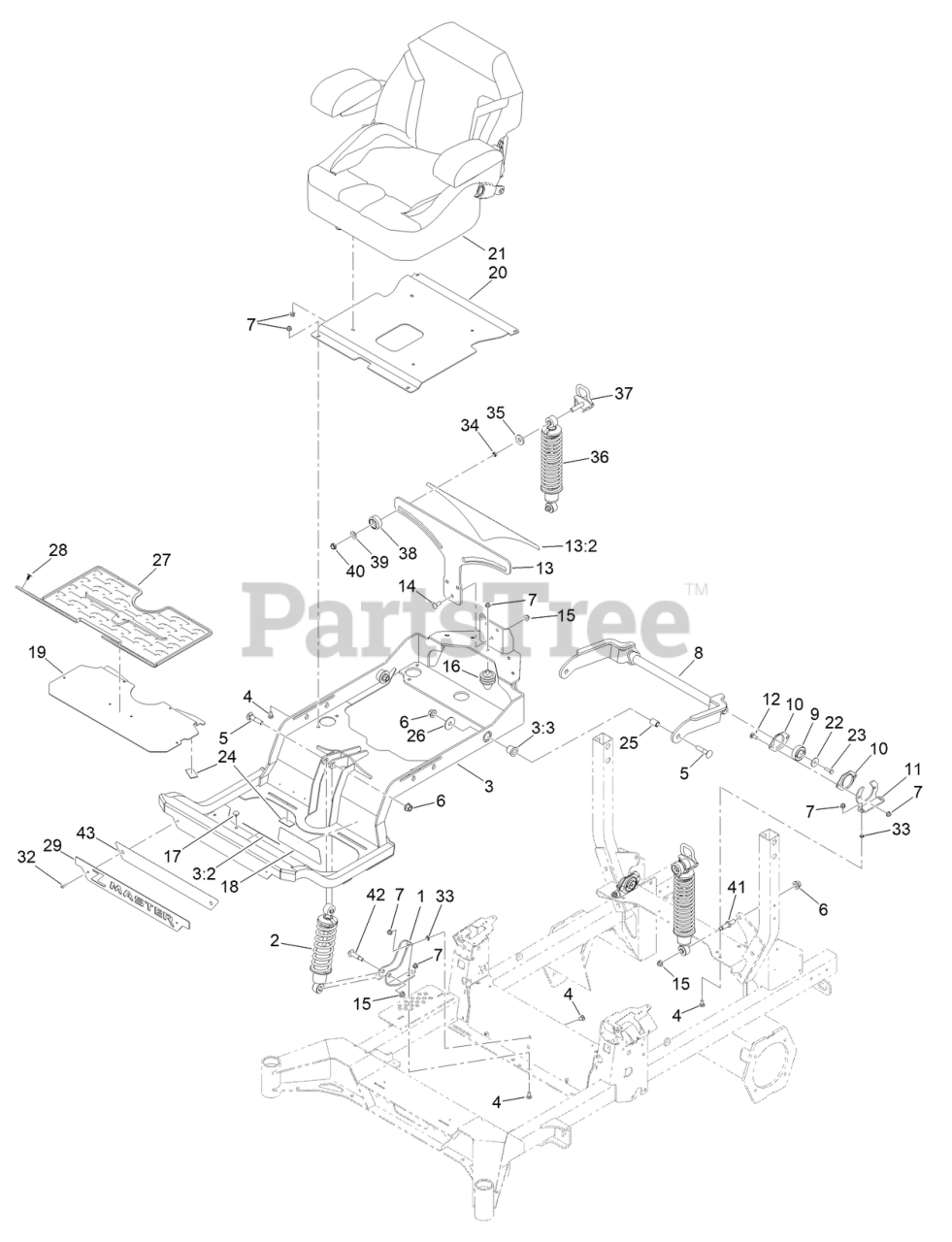

Seat Suspension Assembly Parts Diagram

  • Title

1

Toro 145-1925-03

BRACKET-SHOCK, FRONT LOWER

$31.99

$

Usually ships in 3-6 days

0

2

Toro 136-9193

HD SHOCK/SPRING ASM

$194.99

$

Usually ships in 3-6 days

0

3

Toro 145-3667

SUBFRAME ASM W/DECAL

$

$

Currently unavailable

3:2

Toro 145-3665

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

3:3

Toro 127-6745

BUSHING-FLANGE

$12.99

$

Usually ships in 3-6 days

0

4

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 127-6768

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

6

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 127-6754-03

ARM-TRAILING

$306.99

$

Usually ships in 3-6 days

0

9

Toro 1-653346

BEARING

$82.99

$

In Stock, Qty 11

0

10

Toro 127-6743

HOUSING-BEARING, FLANGE

$5.99

$

Usually ships in 3-6 days

0

11

Toro 127-6759-03

BRACKET-BEARING

$26.99

$

Usually ships in 3-6 days

0

12

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

13

Toro 144-2602

BRACKET-MOUNTING

$111.99

$

Usually ships in 3-6 days

0

13:2

Toro 132-5067

DECAL-ADJUSTMENT, RIDE

$28.99

$

Usually ships in 3-6 days

0

14

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 126-5491

ISOLATOR

$22.99

$

Usually ships in 3-6 days

0

17

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

18

Toro 144-0437

DECAL-MYRIDE

$15.99

$

Usually ships in 3-6 days

0

19

Toro 144-0381-01

FLOORPAN

$49.99

$

Usually ships in 3-6 days

0

20

Toro 140-1197-03

PAN-SEAT

$91.99

$

Usually ships in 3-6 days

0

21

Toro 145-8421

STANDARD SEAT ASM

$1064.99

$

Usually ships in 3-6 days

0

22

Toro 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 20+

0

23

Toro 116-0648

SCREW-HH, THREAD LOCKING

$1.49

$

In Stock, Qty 20+

0

24

Toro 130-0733

PAD-RUBBER

$1.99

$

Usually ships in 3-6 days

0

25

Toro 127-6751

SPACER-ALUMINUM

$10.99

$

Usually ships in 3-6 days

0

26

Toro 86-1990

WASHER-THRUST

$4.49

$

In Stock, only 2 left!

0

27

Toro 144-0355

FLOORMAT-MYRIDE

$51.99

$

Usually ships in 3-6 days

0

28

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

29

Toro 147-4956-03

PLATE-BADGE [BLACK]

$20.99

$

Usually ships in 3-6 days

0

32

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0

33

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 133-5109

BEARING-SLEEVE

$2.99

$

In Stock, only 1 left!

0

35

Toro 131-4699

WASHER-PLASTIC

$5.99

$

Usually ships in 3-6 days

0

36

Toro 133-1815

SHOCK/SPRING ASM

$148.99

$

In Stock, only 2 left!

0

37

Toro 136-9017

CAM LOCK ASM

$42.99

$

Usually ships in 3-6 days

0

38

Toro 136-5636

KNOB-LOCK, CAM

$13.99

$

Usually ships in 3-6 days

0

39

Toro 3-6803

WASHER-ADJUSTING

$9.49

$

Usually ships in 3-6 days

0

40

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

41

Toro 133-4401

BOLT-SHOULDER

$15.99

$

Usually ships in 3-6 days

0

42

Toro 136-9028

BOLT-SHOULDER, HWH

$1.99

$

In Stock, only 3 left!

0

43

Toro 147-4992

DECAL-BACKER PLATE

$15.99

$

Usually ships in 3-6 days

0
