20012 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) Engine Assembly No.2 Tecumseh LV195EA-362003D Parts Diagram

22" Recycler Walk-Behind Mower

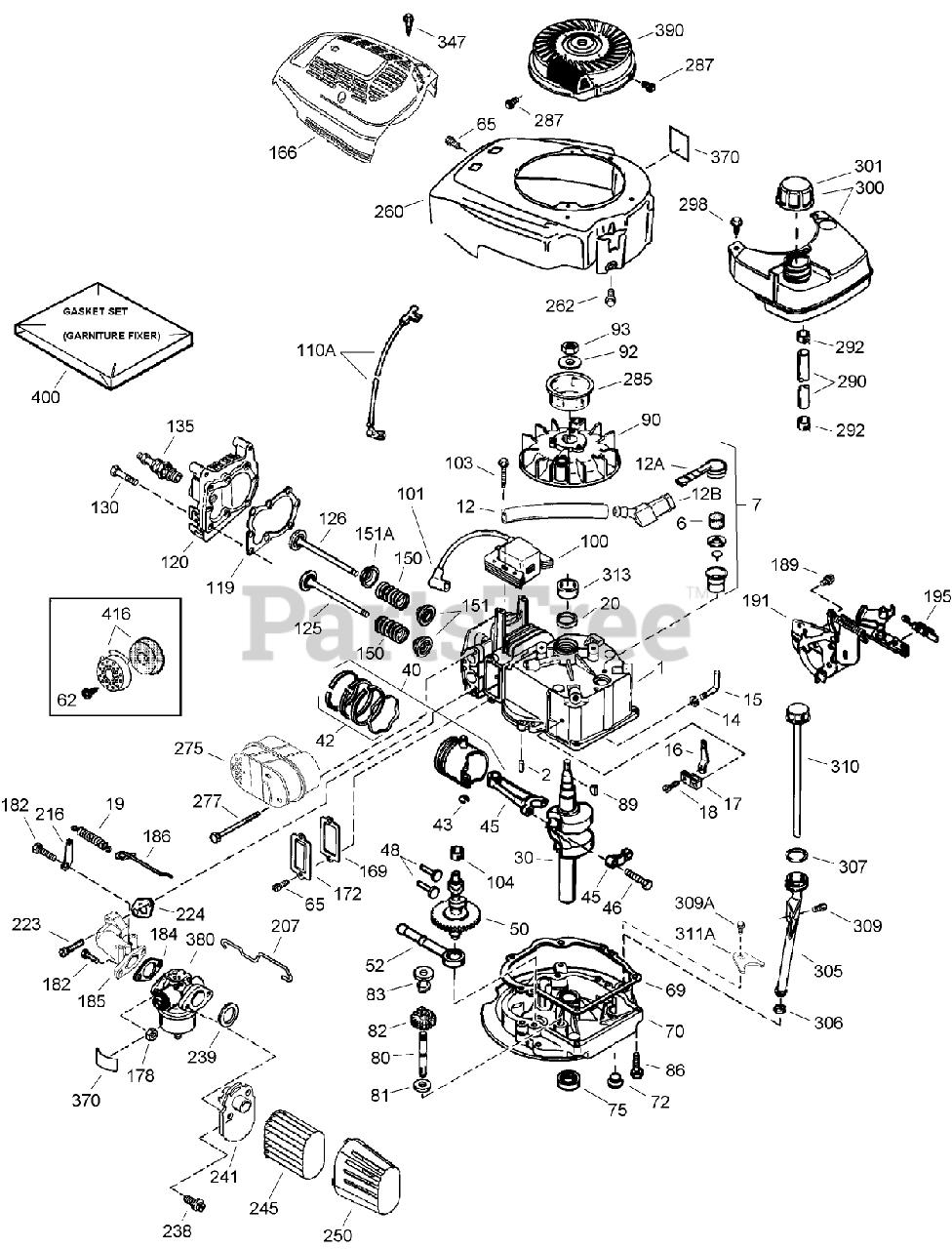

Engine Assembly No.2 Tecumseh LV195EA-362003D Parts Diagram

  • Title
370

Tecumseh 35977

Decal-Warning

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

In Stock, Qty 6

0

370

Tecumseh 37695

Decal-Primer
(Superseded to 37318)

Note: Obtain parts from www.tecumsehpower.com

$2.49

$

Usually ships in 3-12 days

0

370

Tecumseh 36261

Decal-Lubrication

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

380

Tecumseh 640350

Carburetor ASM

Note: Obtain parts from www.tecumsehpower.com

$109.99

$

In Stock, only 3 left!

0

390

Tecumseh 590739

Rewind Starter ASM

Note: Obtain parts from www.tecumsehpower.com

$62.99

$

In Stock, Qty 10

0

400

Tecumseh 37613A

Gasket Set

Note: Obtain parts from www.tecumsehpower.com

$16.99

$

In Stock, only 3 left!

0

416

Tecumseh 37530

Spark Arrestor Kit

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

Tecumseh 806173B

ENGINE-REPLACEMENT

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

Tecumseh 806173B

ENGINE-REPLACEMENT

Note: Not illustrated

$

$

Not available

Tecumseh 750876

Shortblock-Replacement

Note: Not illustrated

$270.99

$

Usually ships in 3-12 days

0

Tecumseh 750876

Shortblock-Replacement

Note: Obtain parts from www.tecumsehpower.com

$270.99

$

Usually ships in 3-12 days

0
