20039 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 230000001 - 230999999) (2003) Engine Assembly Parts Diagram

Super Recycler Walk-Behind Mower with Bag

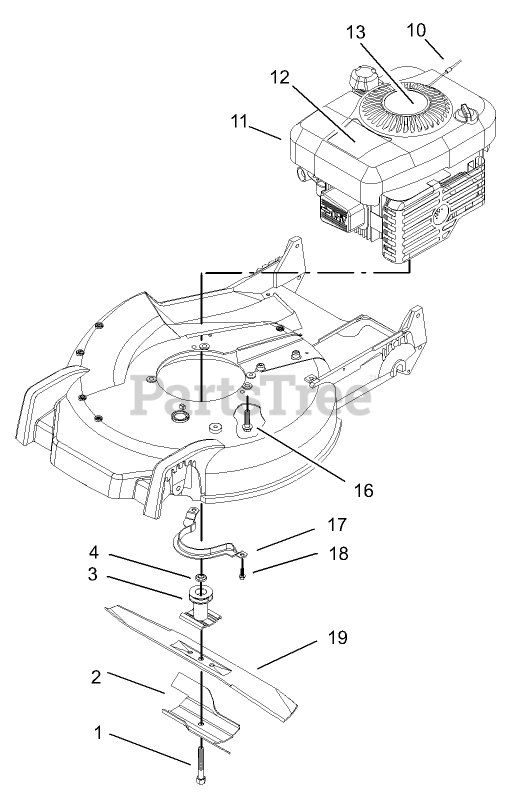

Engine Assembly Parts Diagram

  • Title

1

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

2

Toro 105-6848-03

ACCELERATOR-BLADE

$19.99

$

In Stock, only 3 left!

0

3

Toro 106-3987

DRIVER-BLADE

$36.99

$

In Stock, Qty 20+

0

4

Toro 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

10

Toro 2210-316

STOP-ROPE

$8.99

$

Usually ships in 3-6 days

0

11

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

11

Loose Parts Package

Note: Not serviced separately

$

$

Not available

12

Toro 99-6015

DECAL-RECOIL

$

$

Not available

13

Toro 105-8571

DECAL-RECOIL

$28.99

$

Usually ships in 3-6 days

0

16

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

17

Toro 66-0570-03

BRACKET-GUIDE, BELT

$15.99

$

In Stock, only 1 left!

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 93-4106-03

See Supercession: 133-8183-03
(Superseded to 133-8183-03)

$25.99

$

In Stock, Qty 20+

0
