20053 - Toro Super Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) Handle Assembly Parts Diagram

Super Recycler Walk-Behind Mower

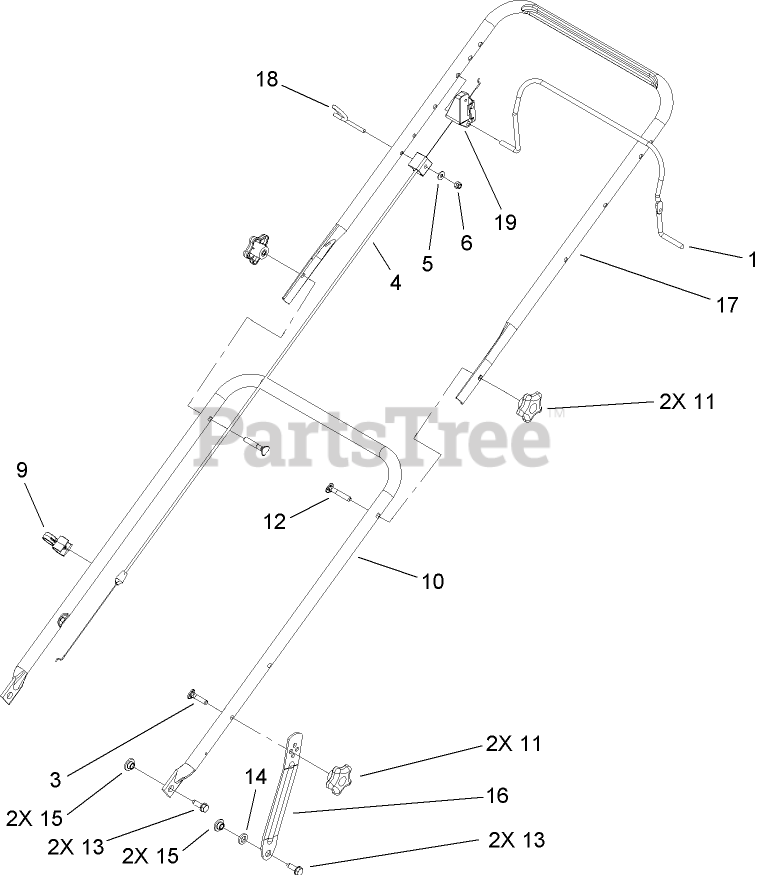

Handle Assembly Parts Diagram

  • Title

1

Toro 105-6800-03

BAIL-BRAKE

$53.99

$

Usually ships in 3-6 days

0

3

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

4

Toro 108-8156

CABLE-BRAKE

$63.99

$

In Stock, only 2 left!

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

9

Toro 106-6805

See Supercession: 114-7988
(Superseded to 114-7988)

$3.49

$

In Stock, Qty 20+

0

10

Toro 107-7476-05

HANDLE-LOWER

$146.99

$

Usually ships in 3-6 days

0

11

Toro 108-8162

See Supercession: 117-5976
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 20+

0

12

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

13

Toro 701243

SCREW-THD ROLL, HWH

$3.49

$

In Stock, Qty 20+

0

14

Toro 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0

15

Toro 27-6600

See Supercession: 125-9249
(Superseded to 125-9249)

$3.49

$

In Stock, only 1 left!

0

16

Toro 108-8145-03

SUPPORT-HANDLE

$

$

Not available

17

Toro 107-3783-05

HANDLE-UPPER

$

$

Not available

18

Toro 106-8330

GUIDE-ROPE

$6.49

$

In Stock, only 1 left!

0

19

Toro 107-0757

STOP-PIVOT

$5.99

$

In Stock, Qty 12

0
