20093 C - Toro Super Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) Front Wheel Assembly Parts Diagram

Super Recycler Walk-Behind Mower

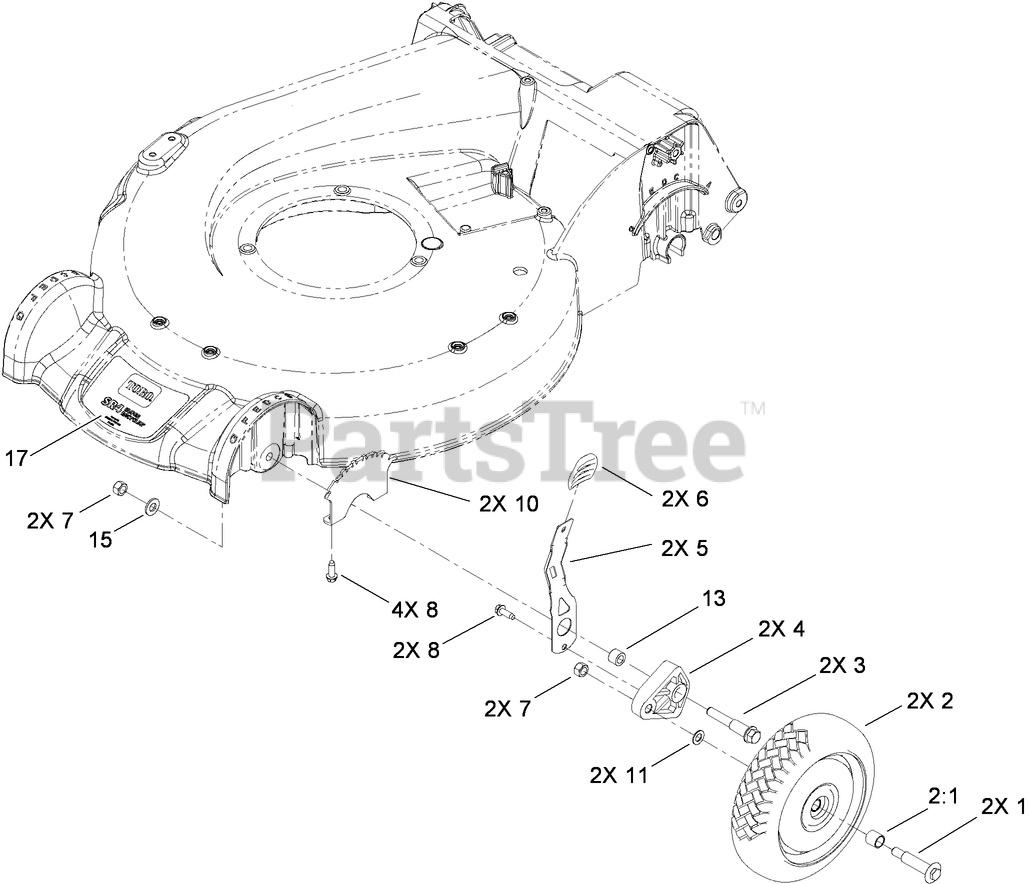

Front Wheel Assembly Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Toro 14-9989

WHEEL AND TIRE ASM

$50.99

$

In Stock, only 2 left!

0

2:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

3

Toro 114-3467

SCREW-SHOULDER

$8.99

$

In Stock, Qty 20+

0

4

Toro 107-7492

ARM-PIVOT

$18.99

$

In Stock, Qty 5

0

5

Toro 107-7491

ARM-SPRING

$13.99

$

In Stock, Qty 15

0

6

Toro 105-3042

KNOB-LEVER, HOC

$4.99

$

In Stock, Qty 20+

0

7

Toro 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

10

Toro 107-7478

PLATE-HOC

$

$

Not available

11

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

13

Toro 52-2480

SPACER-WHEEL

$6.99

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 108-8168

DECAL-SUPERCARE

$8.99

$

Usually ships in 3-6 days

0
