20180 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Handle Throttle Control Assembly Parts Diagram

Walk-Behind Mower

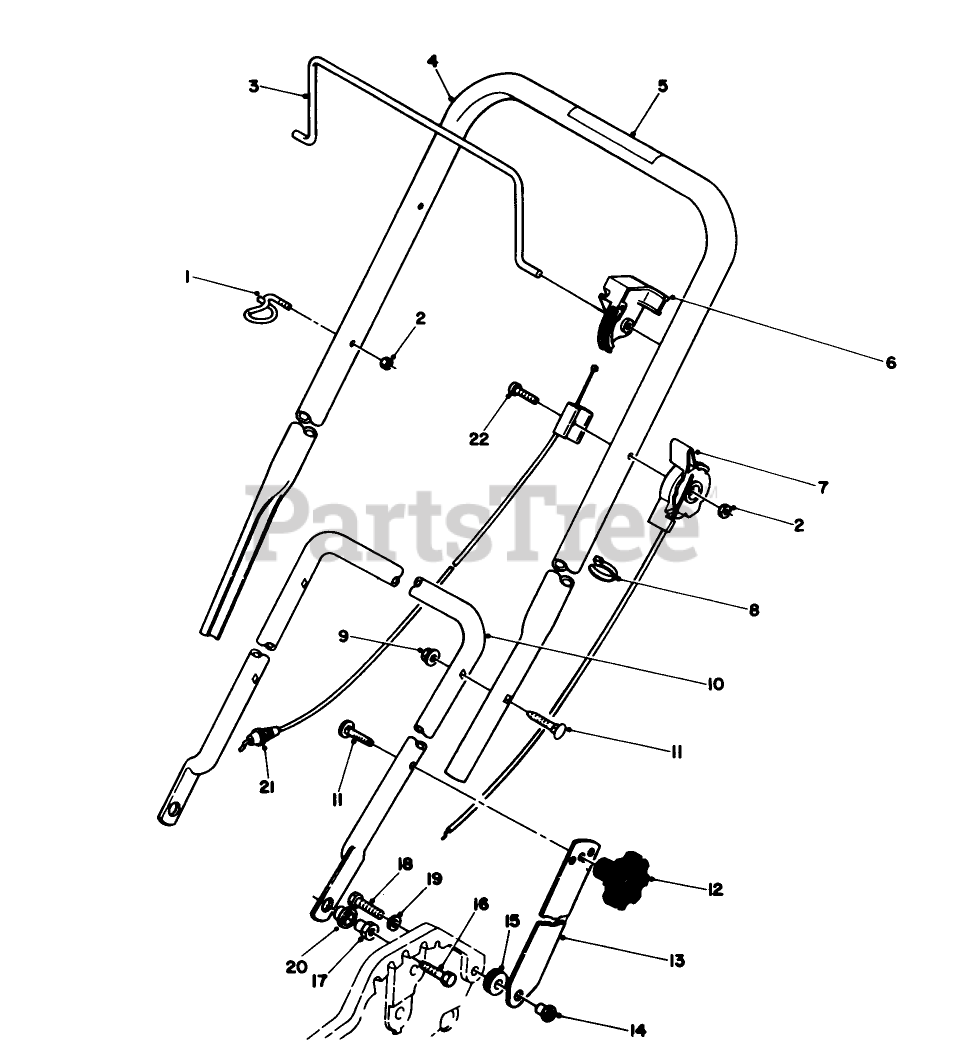

Handle Throttle Control Assembly Parts Diagram

  • Title

1

Toro 86-9670

DISCONTINUED

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 86-9740

See Supercession: 86-9740-03
(Superseded to 86-9740-03)

$

$

Not available

4

Toro 14-7379

HANDLE W/DECAL

$159.99

$

Usually ships in 3-6 days

0

5

Toro 88-3340

DISCONTINUED

$

$

Not available

6

Toro 86-9440

BAIL STOP/LEVER

$

$

Not available

7

Toro 86-9430

DISCONTINUED

$

$

Not available

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 50-9921

DISCONTINUED

$

$

Not available

11

Toro 17-9424

DISCONTINUED
(Superseded to 6-6330)

$

$

Not available

12

Toro 19-4050

KNOB

$18.99

$

In Stock, Qty 5

0

13

Toro 43-1372

HANDLE LATCH

$

$

Not available

14

Toro 47-4990

POST-MOUNTING, LINKAGE

$29.99

$

Usually ships in 3-6 days

0

15

Toro 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 12-2080

HANDLE PIVOT NUT

$28.99

$

Usually ships in 3-6 days

0

18

Toro 321-8

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

19

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 86-7960

FLANGE BUSHING

$

$

Not available

21

Toro 86-9420

DISCONTINUED

$

$

Not available

22

Toro 321-9

SCREW-HH

$5.49

$

In Stock, Qty 5

0
