20311 - Toro 21" Whirlwind Implement (SN: 008000001 - 008999999) (1968) Gear Case Assembly Parts Diagram

21" Whirlwind Implement

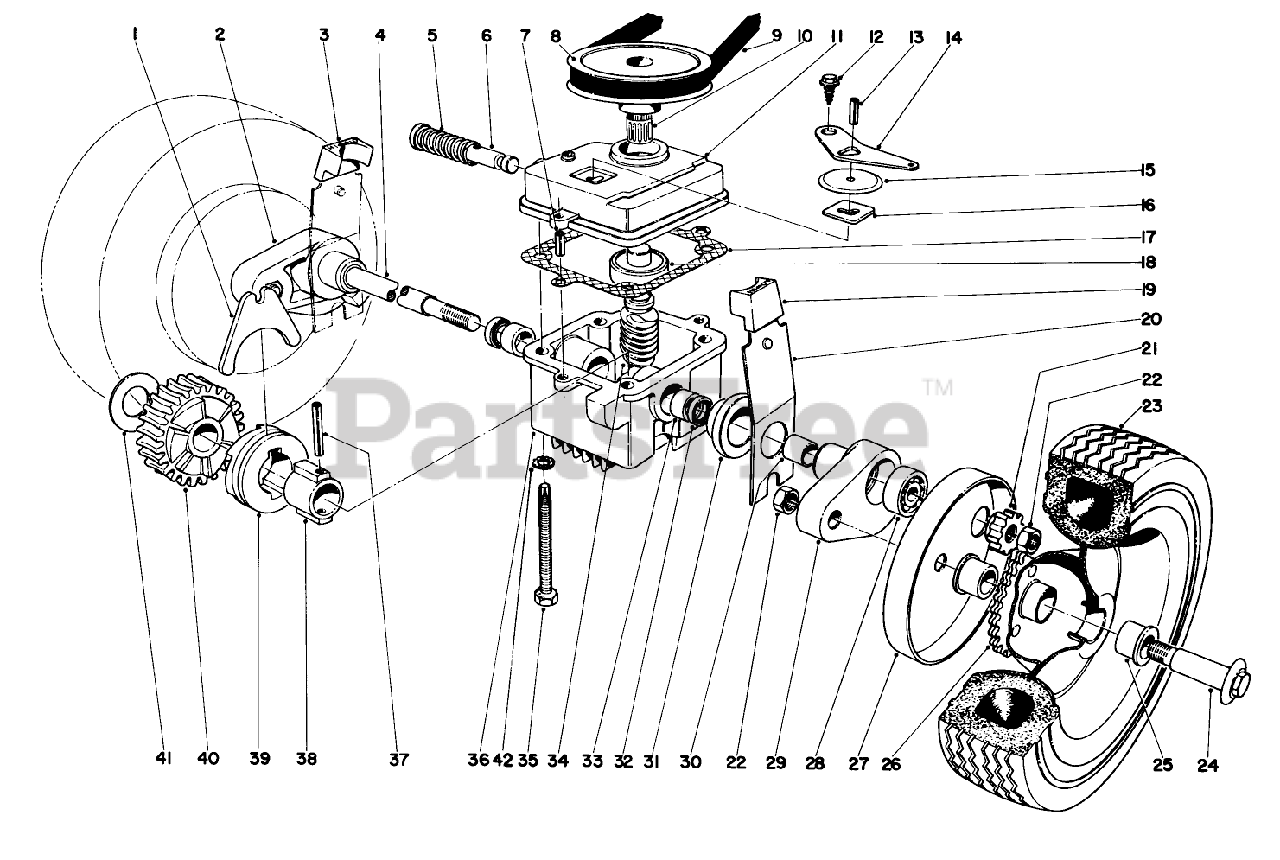

Gear Case Assembly Parts Diagram

  • Title

1

Toro 5-3247

SHIFTER FORK

$

$

Not available

2

Toro 2-6359

DISCONTINUED

$

$

Not available

3

Toro 5-0656

DISCONTINUE

$

$

Not available

4

Toro 3-0720

DRIVE SHAFT

$

$

Not available

5

Toro 3-0731

SPRING

$

$

Not available

6

Toro 5-3248

See Supercession: 46-8240
(Superseded to 46-8240)

$51.99

$

Usually ships in 3-6 days

0

7

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.99

$

In Stock, Qty 5

0

8

Toro 5-1615

DISCONTINUED

$

$

Not available

9

Toro 3-7274

See Supercession: 5-4505
(Superseded to 5-4505)

$25.99

$

In Stock, only 1 left!

0

10

Toro 3290-286

DISCONTINUED

$

$

Not available

11

Toro 5-3283

DISCONTINUED

$

$

Not available

12

Toro 32140-64

See Supercession: 32144-112
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

13

Toro 32121-23

PIN-ROLL

$

$

Not available

14

Toro 5-3252

SHIFTER ARM

$40.99

$

Usually ships in 3-6 days

0

15

Toro 3-2615

TRANS DUST COVER

$

$

Not available

16

Toro 3-0681

LATCH PLATE

$

$

Not available

17

Toro 3-0734

GASKET

$

$

Not available

18

Toro 251-144

See Supercession: 47-7460
(Superseded to 47-7460)

$72.99

$

Usually ships in 3-6 days

0

19

Toro 5-0657

ARM KNOB

$

$

Not available

20

Toro 3-2640

DISCONTINUED

$

$

Not available

21

Toro 3-0738

PINION GEAR

$60.99

$

Usually ships in 3-6 days

0

22

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

23

Toro 4-2600

DISCONTINUED

$

$

Not available

24

Toro 3-5117

See Supercession: 26-4430
(Superseded to 26-4430)

$64.99

$

Usually ships in 3-6 days

0

25

Toro 3-5234

See Supercession: 5-4504
(Superseded to 5-4504)

$

$

Not available

26

Toro 3-7570

DISCONTINUED XREF

$

$

Not available

27

Toro 3-5235

WHEEL COVER

$49.99

$

Usually ships in 3-6 days

0

28

Toro 251-183

.375 RPP BALL BEARING

$

$

Not available

29

Toro 2-6369

LH PIVOT ARM & BSHG

$113.99

$

Usually ships in 3-6 days

0

30

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

31

Toro 5-0745

See Supercession: 92-5714
(Superseded to 92-5714)

$

$

Not available

32

Toro 253-86

See Supercession: 47-7260
(Superseded to 47-7260)

$10.99

$

In Stock, only 2 left!

0

33

Toro 256-110

Bushing
(Superseded to 47-2890)

$4.49

$

Usually ships in 3-6 days

0

34

Toro 5-1616

Worm Shaft

$

$

Currently unavailable

35

Toro 32140-63

Sems Screw

$

$

Currently unavailable

36

Toro 3-1079

DISCONTINUED
(Superseded to 5-8339)

$

$

Not available

37

Toro 32121-40

See Supercession: 32121-88
(Superseded to 32121-88)

$9.49

$

Usually ships in 3-6 days

0

38

Toro 3-0721

SLEEVE

$

$

Not available

39

Toro 3-0722

See Supercession: 19-5660
(Superseded to 19-5660)

$

$

Not available

40

Toro 3-0723

Worm Gear

$

$

Currently unavailable

41

Toro 3-0724

THRUST WASHER

$

$

Not available

42

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0
