20320 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Housing Assembly Parts Diagram

Walk-Behind Mower

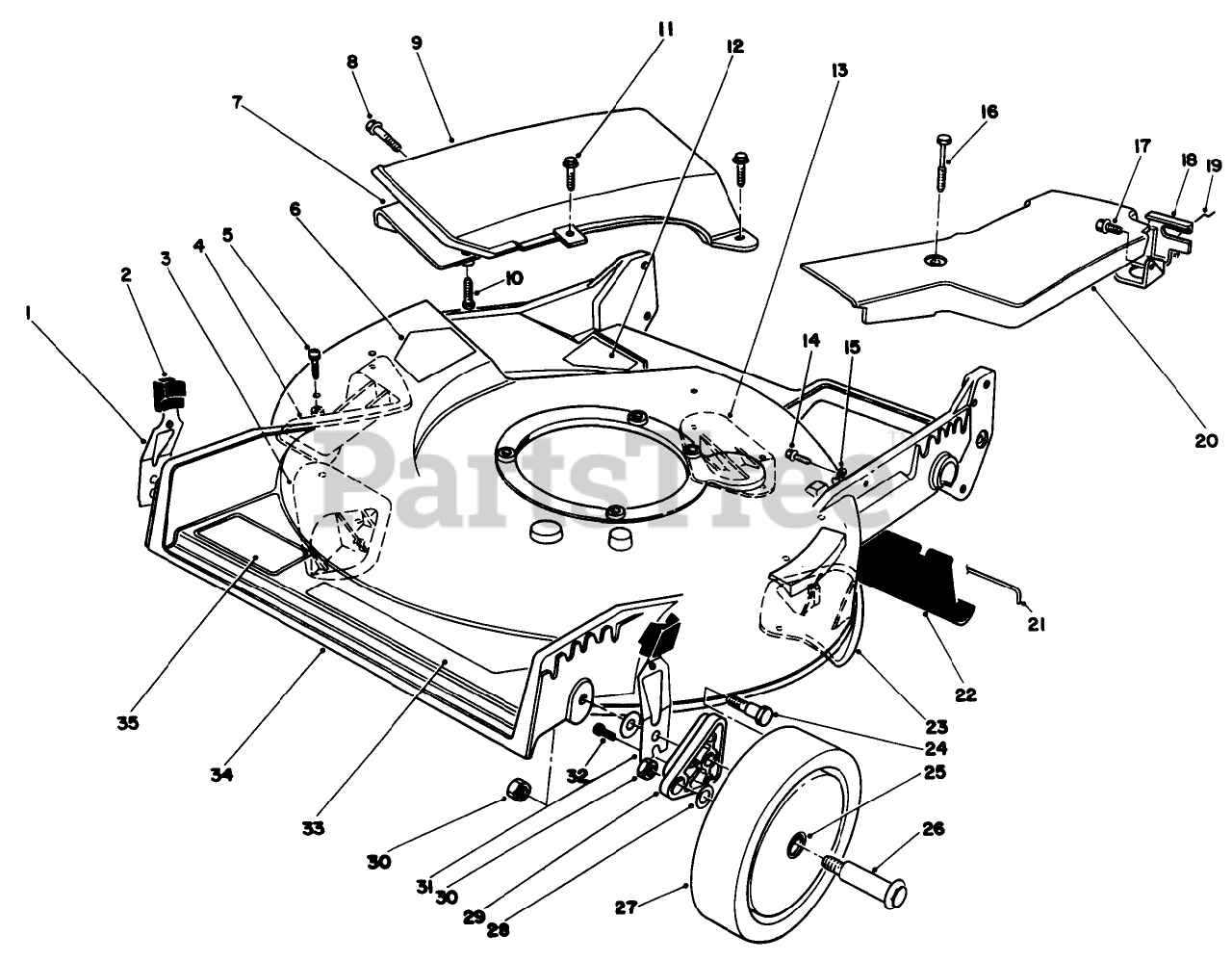

Housing Assembly Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$20.99

$

Usually ships in 3-6 days

0

2

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

3

Toro 76-2120

KICKER

$33.99

$

Usually ships in 3-6 days

0

4

Toro 76-2130

KICKER

$33.99

$

Usually ships in 3-6 days

0

5

Toro 32104-130

#8 X .625" PHILPS PAN H

$2.49

$

Usually ships in 3-6 days

0

6

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 5

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.99

$

In Stock, Qty 20+

0

9

Toro 14-4069

DISCONTINUED
(Superseded to 17-5179)

$

$

Not available

10

Screw-Plastite

$

$

Not available

11

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

12

Toro 82-8450

DECAL - DANGER

$

$

Not available

13

Toro 76-2150

KICKER

$33.99

$

Usually ships in 3-6 days

0

14

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

15

Toro 2412-83

CLAMP-CABLE

$

$

Not available

16

Toro 37-7260

SCREW-HWH

$6.99

$

In Stock, Qty 9

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 82-5680

See Supercession: 82-5680-03
(Superseded to 82-5680-03)

$

$

Not available

19

Toro 46-7030

RETAINER-CABLE

$6.99

$

Usually ships in 3-6 days

0

20

Toro 82-9911

DISCONTINUED

$

$

Not available

21

Toro 33-3208

ROD-SHIELD

$17.99

$

In Stock, Qty 7

0

22

Toro 44-0580

See Supercession: 112-9989
(Superseded to 112-9989)

$31.99

$

In Stock, only 1 left!

0

23

Toro 76-2140

KICKER

$

$

Not available

24

Toro 66-0561

SCREW-SHOULDER

$6.49

$

In Stock, only 1 left!

0

25

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

26

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 4 left!

0

27

Toro 11-9509

See Supercession: 51-2751
(Superseded to 51-2751)

$38.99

$

Usually ships in 3-6 days

0

28

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

29

Toro 66-0580

ARM-PIVOT, FRONT

$19.99

$

In Stock, only 3 left!

0

30

Toro 52-3620

See Supercession: 32153-11
(Superseded to 32153-11)

$4.99

$

In Stock, only 3 left!

0

31

Toro 71-0570

LH SPRING ARM ASSEMBLY

$

$

Not available

32

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

33

Toro 76-1950

DECAL - DECK

$

$

Not available

34

Toro 14-3519

See Supercession: 16-1599
(Superseded to 16-1599)

$1084.99

$

Usually ships in 3-6 days

0

35

Toro 71-0600

DECAL

$16.99

$

Usually ships in 3-6 days

0
