20323 - Toro 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) Engine and Blade Assembly Parts Diagram

20" Walk-Behind Mower

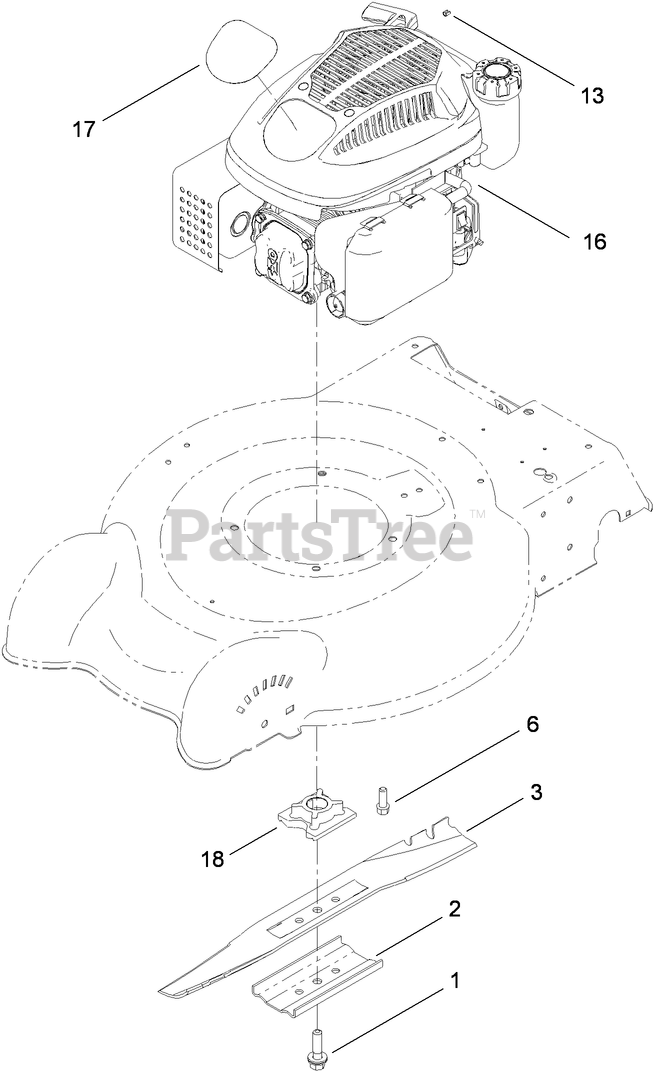

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, Qty 20+

0

3

Toro 112-8841-03

See Supercession: 133-8181-03
(Superseded to 133-8181-03)

$30.99

$

In Stock, Qty 20+

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$8.99

$

Usually ships in 3-6 days

0

16

Toro 119-1964

ENGINE-LC1P65FGAS
(Superseded to 139-0607)

$597.99

$

Usually ships in 3-6 days

0

17

Toro 119-7009

DECAL-SHROUD

$

$

Not available

18

Toro 104-1007

RETAINER-BLADE

$82.99

$

Usually ships in 3-6 days

0
