20461 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Engine Assembly Parts Diagram

Super Recycler Walk-Behind Mower

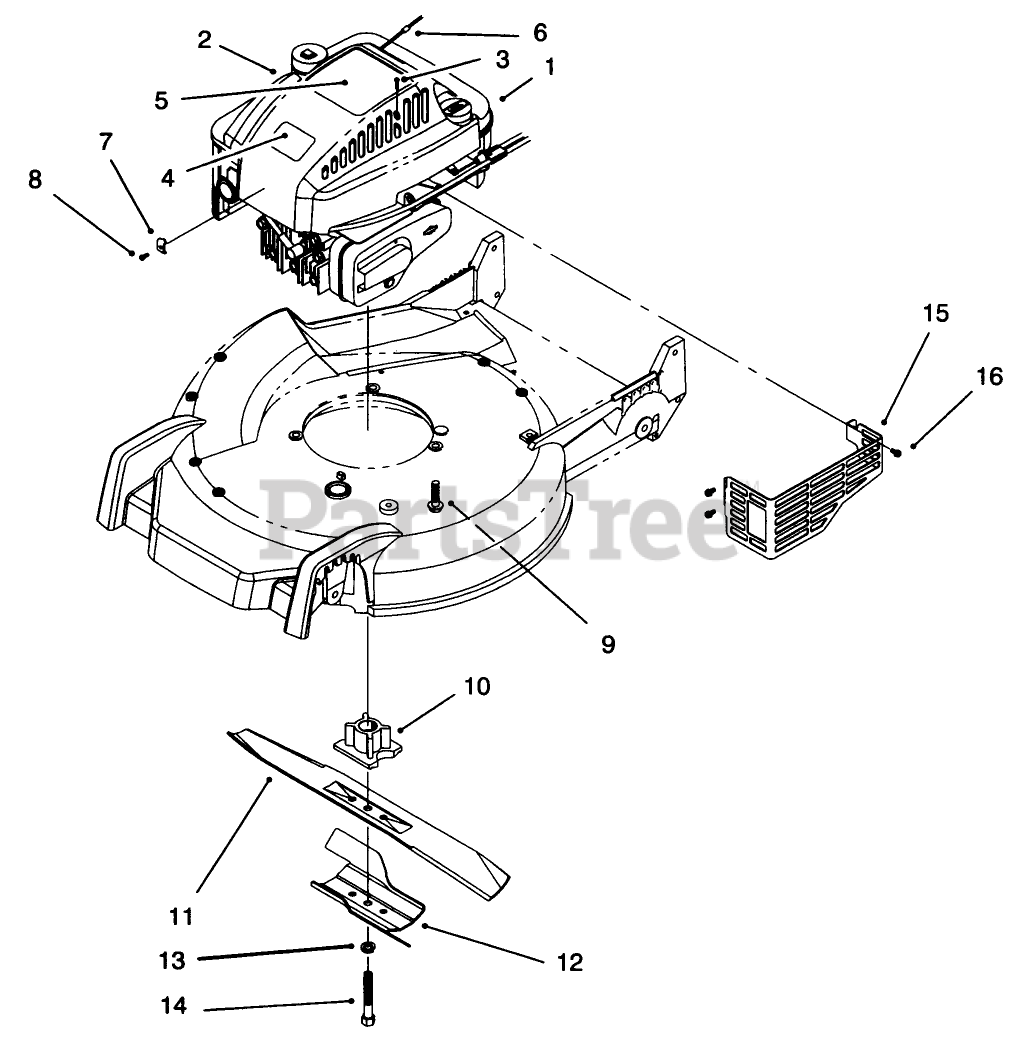

Engine Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Toro 93-0243

SHROUD-ENGINE

$

$

Not available

3

Toro 32144-121

See Supercession: 32144-88
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

4

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

5

Toro 93-3698

DECAL - RECOIL

$

$

Not available

6

Toro 2210-316

STOP-ROPE

$8.99

$

Usually ships in 3-6 days

0

7

Toro 2210-249

CLAMP-CASING

$

$

Not available

8

Toro 93-8470

SCREW-CLAMP

$

$

Not available

9

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

10

Toro 93-4107

RETAINER - BLADE

$94.99

$

Usually ships in 3-6 days

0

11

Toro 93-4106

See Supercession: 133-8183-03
(Superseded to 133-8183-03)

$25.99

$

In Stock, Qty 20+

0

12

Toro 94-1608

See Supercession: 94-1608-03
(Superseded to 94-1608-03)

$19.99

$

In Stock, only 3 left!

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

14

Toro 26-0670

SCREW-BLADE

$

$

Not available

15

Toro 82-8550

See Supercession: 104-7577-03
(Superseded to 104-7577-03)

$29.99

$

In Stock, only 2 left!

0

16

Toro 32144-73

See Supercession: 104-2065
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0
