20464 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Handle Assembly Parts Diagram

Super Recycler Walk-Behind Mower

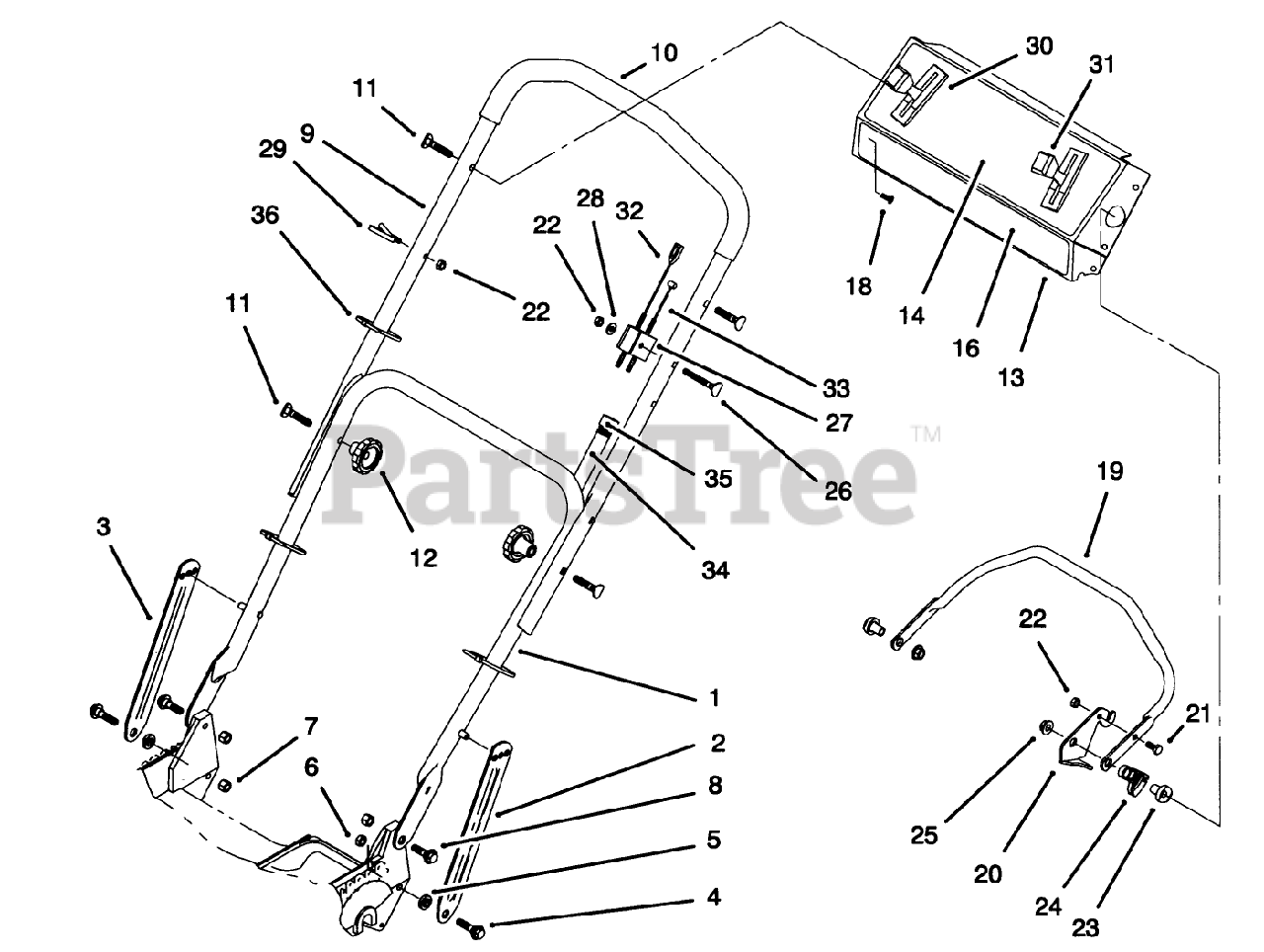

Handle Assembly Parts Diagram

  • Title

1

Toro 82-5531

See Supercession: 82-5530
(Superseded to 82-5530)

$

$

Not available

2

Toro 84-8361

See Supercession: 100-3298-03
(Superseded to 100-3298-03)

$22.99

$

In Stock, Qty 9

0

3

Toro 84-8401

See Supercession: 100-3297-03
(Superseded to 100-3297-03)

$9.49

$

In Stock, only 2 left!

0

4

Toro 27-7210

SCREW-SHOULDER

$8.99

$

In Stock, Qty 6

0

5

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

6

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

7

Toro 3272-72

Nut-Lock

$

$

Currently unavailable

8

Toro 27-7211

SCREW-SHOULDER

$

$

Not available

9

Toro 92-2277

See Supercession: 94-4922
(Superseded to 94-4922)

$

$

Not available

10

Toro 92-4086

DISCONTINUED

$

$

Not available

11

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

12

Toro 19-4050

KNOB

$18.99

$

In Stock, Qty 5

0

13

Toro 16-9479

DISCONTINUED

$

$

Not available

14

Toro 93-7166

DISCONTINUED

$

$

Not available

16

Toro 93-3697

DECAL - CONSOLE

$

$

Not available

18

Toro 92-9665

SCREW-TAP

$7.49

$

In Stock, Qty 17

0

19

Toro 52-7430

DISCONTINUED
(Superseded to 52-7430-03)

$

$

Not available

20

Toro 66-5351

See Supercession: 66-5351-03
(Superseded to 66-5351-03)

$12.99

$

Usually ships in 3-6 days

0

21

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

23

Toro 49-1630

SPACER-SUPPORT

$10.99

$

Usually ships in 3-6 days

0

24

Toro 46-5520

LEVER-TRACTION

$

$

Not available

25

Toro 3296-74

See Supercession: 3296-72
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

26

Toro 92-2269

SCREW-HANDLE
(Superseded to 137-3108)

$4.99

$

In Stock, only 2 left!

0

27

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

28

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 86-9671

GUIDE-ROPE

$4.99

$

In Stock, Qty 15

0

30

Toro 76-2712

CONTROL-SPEED, GROUND

$55.99

$

In Stock, only 2 left!

0

31

Toro 71-8391

THROTTLE CONTROL

$126.99

$

Usually ships in 3-6 days

0

32

Toro 76-4331

BRAKE CONTROL

$107.99

$

Usually ships in 3-6 days

0

33

Toro 46-5481

CABLE-TRACTION

$74.99

$

In Stock, only 2 left!

0

34

Toro 46-6440

DISCONTINUED

$

$

Not available

35

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
