20465 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Engine Assembly Parts Diagram

Super Recycler Walk-Behind Mower

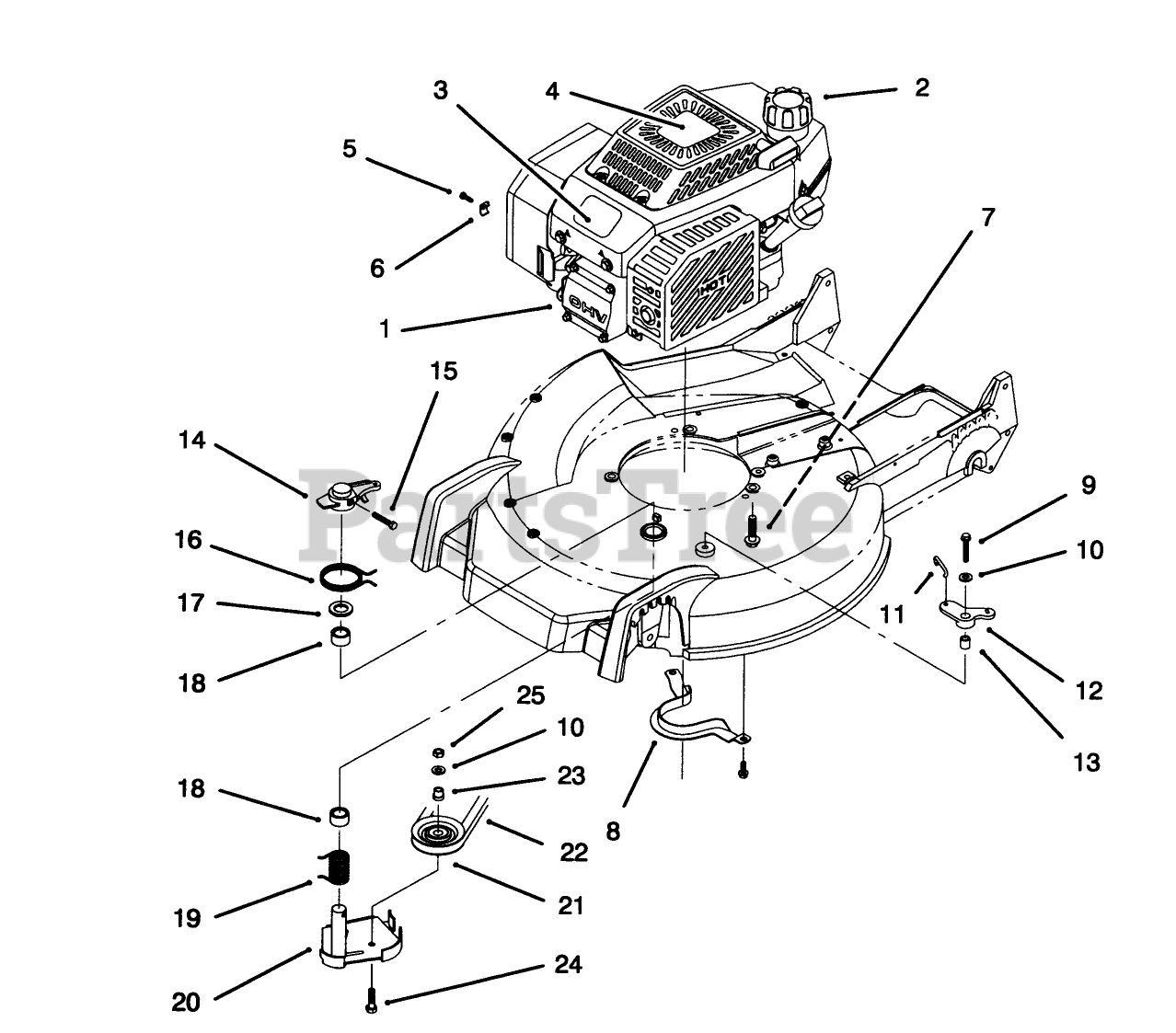

Engine Assembly Parts Diagram

  • Title

1

Toro 77-8981

See Supercession: 77-9280
(Superseded to 77-9280)

$1315.99

$

Usually ships in 3-6 days

0

1

Toro 94-1605

See Supercession: 77-9280
(Superseded to 77-9280)

$1315.99

$

Usually ships in 3-6 days

0

1

Toro 77-8991

ENG ASM/GTS 150 KE BBC

$1790.99

$

Usually ships in 3-6 days

0

1

Toro 94-1606

See Supercession: 77-9280
(Superseded to 77-9280)

$1315.99

$

Usually ships in 3-6 days

0

2

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0

3

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

4

Toro 93-3699

DISCONTINUED

$

$

Not available

5

Toro 93-8470

SCREW-CLAMP

$

$

Not available

6

Toro 2210-249

CLAMP-CASING

$

$

Not available

7

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

8

Toro 66-0570

See Supercession: 66-0570-03
(Superseded to 66-0570-03)

$15.99

$

In Stock, only 1 left!

0

9

Toro 32104-107

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 49-2810

LINK-CONTROL

$3.99

$

In Stock, only 1 left!

0

12

Toro 49-7960

BELLCRANK

$13.99

$

Usually ships in 3-6 days

0

13

Toro 49-7950

SLEEVE-BELLCRANK

$5.99

$

Usually ships in 3-6 days

0

14

Toro 49-2820

LEVER

$13.99

$

In Stock, only 2 left!

0

15

Toro 32104-96

SCREW-HH

$6.99

$

In Stock, Qty 5

0

16

Toro 49-7970

SPRING-TORSION

$16.99

$

Usually ships in 3-6 days

0

17

Toro 70-1160

WASHER

$4.49

$

Usually ships in 3-6 days

0

18

Toro 68-9780

BEARING

$28.99

$

Usually ships in 3-6 days

0

19

Toro 46-5670

SPRING-TORSION

$12.99

$

Usually ships in 3-6 days

0

20

Toro 49-7920

See Supercession: 94-1601
(Superseded to 94-1601)

$

$

Not available

21

Toro 46-5650

See Supercession: 117-5299
(Superseded to 117-5299)

$45.99

$

In Stock, Qty 13

0

22

Toro 42-0884

V-BELT

$18.99

$

In Stock, Qty 20+

0

23

Toro 46-5630

HUB-PULLEY, IDLER

$20.99

$

In Stock, only 2 left!

0

24

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

25

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

Toro 77-9280

BBC SHORT BLOCK

Note: Not illustrated

$1315.99

$

Usually ships in 3-6 days

0
