20465 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Handle Assembly (model No. 20466 Only) Parts Diagram

Super Recycler Walk-Behind Mower

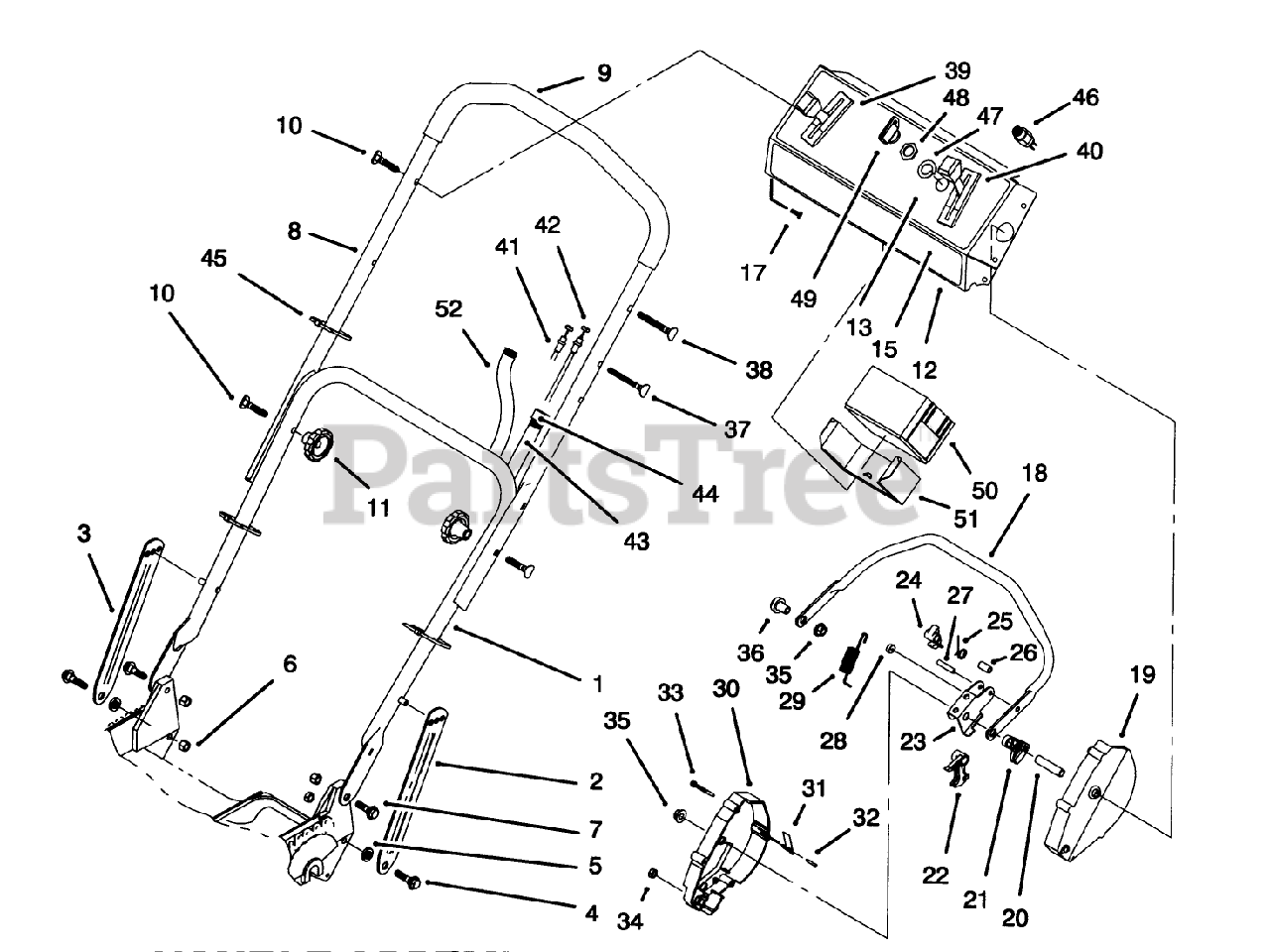

Handle Assembly (model No. 20466 Only) Parts Diagram

  • Title

1

Toro 82-5531

See Supercession: 82-5530
(Superseded to 82-5530)

$

$

Not available

2

Toro 84-8361

See Supercession: 100-3298-03
(Superseded to 100-3298-03)

$22.99

$

In Stock, Qty 9

0

3

Toro 84-8401

See Supercession: 100-3297-03
(Superseded to 100-3297-03)

$9.49

$

In Stock, only 2 left!

0

4

Toro 27-7210

SCREW-SHOULDER

$8.99

$

In Stock, Qty 6

0

5

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

6

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 27-7211

SCREW-SHOULDER

$

$

Not available

8

Toro 92-2277

See Supercession: 94-4922
(Superseded to 94-4922)

$

$

Not available

9

Toro 92-4086

DISCONTINUED

$

$

Not available

10

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

11

Toro 19-4050

KNOB

$18.99

$

In Stock, Qty 5

0

12

Toro 16-9579

PANEL W/DECAL

$134.99

$

Usually ships in 3-6 days

0

13

Toro 93-7168

DISCONTINUED

$

$

Not available

15

Toro 92-3146

DISCONTINUED

$

$

Not available

17

Toro 92-9665

SCREW-TAP

$7.49

$

In Stock, Qty 17

0

18

Toro 52-7430

DISCONTINUED
(Superseded to 52-7430-03)

$

$

Not available

19

Toro 46-5460

DISCONTINUED

$

$

Not available

20

Toro 46-5590

TUBING-SPACER

$

$

Not available

21

Toro 46-5520

LEVER-TRACTION

$

$

Not available

22

Toro 66-0180

DISCONTINUED

$

$

Not available

23

Toro 46-5540

LEVER-CABLE

$20.99

$

In Stock, only 2 left!

0

24

Toro 46-5530

HOOK-CONTROL

$

$

Not available

25

Toro 46-5510

SPRING-TORSION

$

$

Not available

26

Toro 46-5550

SPACER

$

$

Not available

27

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, only 3 left!

0

28

Toro 66-0170

WASHER-NYLON

$5.99

$

In Stock, only 4 left!

0

29

Toro 66-0190

SPRING-DETENT

$34.99

$

Usually ships in 3-6 days

0

30

Toro 66-0160

DISCONTINUED
(Superseded to 12-3429)

$

$

Not available

31

Toro 52-7410

SPRING-LEAF

$

$

Not available

32

Toro 57-6290

PIN-INSERT

$

$

Not available

33

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

34

Toro 3296-75

NUT-LOCK NI

$

$

Not available

35

Toro 3296-74

See Supercession: 3296-72
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

36

Toro 49-1630

SPACER-SUPPORT

$10.99

$

Usually ships in 3-6 days

0

37

Toro 92-2267

SCREW-HANDLE

$6.99

$

In Stock, only 1 left!

0

38

Toro 92-2261

*OBS* MATERIAL EXCEPT FOR SERVICE

$

$

Not available

39

Toro 76-2712

CONTROL-SPEED, GROUND

$55.99

$

In Stock, only 2 left!

0

40

Toro 71-8391

THROTTLE CONTROL

$126.99

$

Usually ships in 3-6 days

0

41

Toro 83-6600

CLUTCH CABLE

$

$

Not available

42

Toro 46-5480

TRACTION CABLE

$120.99

$

Usually ships in 3-6 days

0

43

Toro 46-6440

DISCONTINUED

$

$

Not available

44

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

45

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

46

Toro 46-5780

STARTER SWITCH ASM

$33.99

$

In Stock, Qty 10

0

47

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

48

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

49

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

50

Toro 55-7520

BATTERY ASSEMBLY,WET

$

$

Not available

51

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$

$

Not available

52

Toro 80-4790

See Supercession: 80-4793
(Superseded to 80-4793)

$

$

Not available

Toro 92-1743

See Supercession: 131-0848
(Superseded to 131-0848)

Note: Not illustrated

$86.99

$

Usually ships in 3-6 days

0
