20487 (SR-21 OSBB) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Engine Blade Assembly Parts Diagram

21" Super Recycler Walk-Behind Mower

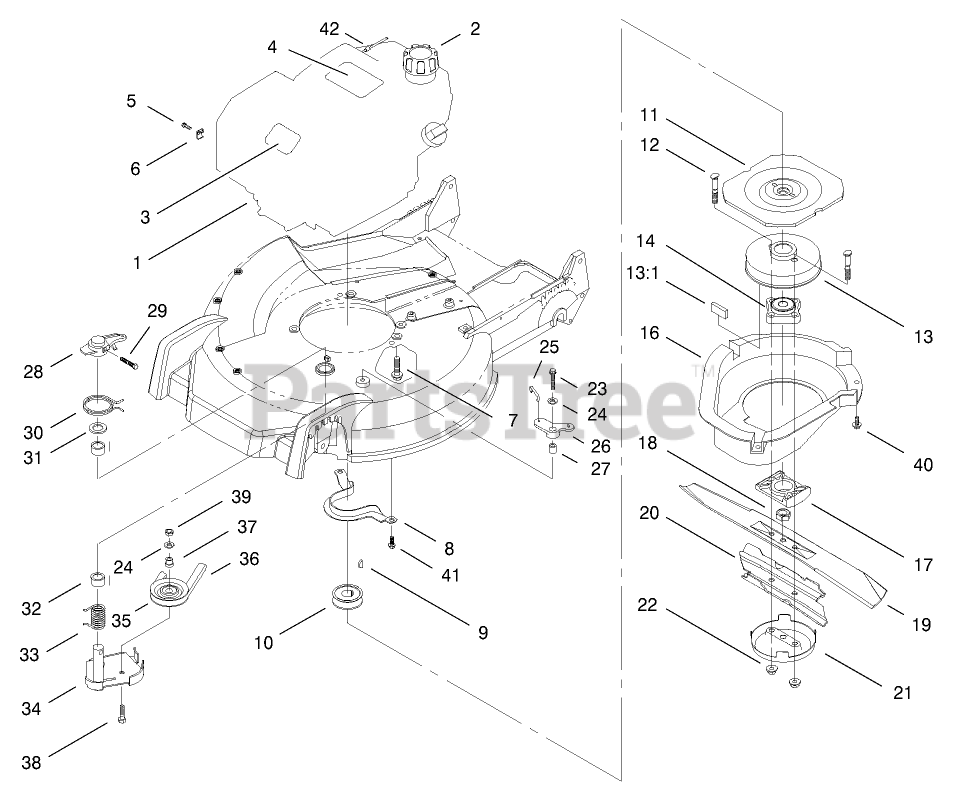

Engine Blade Assembly Parts Diagram

  • Title

1

Toro 98-1426

DISCONTINUED

$

$

Not available

2

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0

3

Toro 98-3206

DECAL

$2.49

$

In Stock, only 1 left!

0

4

Toro 99-6012

DECAL - RECOIL

$

$

Not available

5

Toro 93-8470

SCREW-CLAMP

$

$

Not available

6

Toro 2210-249

CLAMP-CASING

$

$

Not available

7

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

8

Toro 66-0570-03

BRACKET-GUIDE, BELT

$15.99

$

In Stock, only 1 left!

0

9

Toro 3257-17

KEY-WOODRUFF

$

$

Not available

10

Toro 62-7560

PULLEY

$51.99

$

In Stock, only 2 left!

0

11

Toro 56-6160

See Supercession: 56-6160-03
(Superseded to 56-6160-03)

$119.99

$

In Stock, only 2 left!

0

12

Toro 42-3190

BOLT-BLADE

$13.99

$

In Stock, only 2 left!

0

13

Toro 94-9431

BRAKE DRUM ASM

$55.99

$

In Stock, Qty 18

0

13:1

Toro 52-3480

DAMPENER-VIBRATION

$1.99

$

Usually ships in 3-6 days

0

14

Toro 42-6890

HUB ASM

$113.99

$

In Stock, only 1 left!

0

16

Toro 46-5693

SHIELD

$41.99

$

In Stock, Qty 8

0

17

Toro 93-4126

SPACER - BLADE

$18.99

$

Usually ships in 3-6 days

0

18

Toro 3296-33

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

19

Toro 93-4106

See Supercession: 133-8183-03
(Superseded to 133-8183-03)

$25.99

$

In Stock, Qty 20+

0

20

Toro 93-4181-03

STIFFENER-BLADE

$

$

Not available

21

Toro 80-2770

CUP-SCALP, ANTI

$

$

Not available

22

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

23

Toro 32104-107

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 49-2810

LINK-CONTROL

$3.99

$

In Stock, only 1 left!

0

26

Toro 49-7960

BELLCRANK

$13.99

$

Usually ships in 3-6 days

0

27

Toro 49-7950

SLEEVE-BELLCRANK

$5.99

$

Usually ships in 3-6 days

0

28

Toro 49-2820

LEVER

$13.99

$

In Stock, only 2 left!

0

29

Toro 32104-96

SCREW-HH

$6.99

$

In Stock, Qty 5

0

30

Toro 49-7970

SPRING-TORSION

$16.99

$

Usually ships in 3-6 days

0

31

Toro 70-1160

WASHER

$4.49

$

Usually ships in 3-6 days

0

32

Toro 68-9780

BEARING

$28.99

$

Usually ships in 3-6 days

0

33

Toro 46-5670

SPRING-TORSION

$12.99

$

Usually ships in 3-6 days

0

34

Toro 94-1601

BRAKE PLATE ASM

$

$

Not available

35

Toro 46-5650

See Supercession: 117-5299
(Superseded to 117-5299)

$45.99

$

In Stock, Qty 13

0

36

Toro 42-0884

V-BELT

$18.99

$

In Stock, Qty 20+

0

37

Toro 46-5630

HUB-PULLEY, IDLER

$20.99

$

In Stock, only 2 left!

0

38

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

39

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

40

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

41

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

42

Toro 2210-316

STOP-ROPE

$8.99

$

Usually ships in 3-6 days

0
