20487 (SR-21 OSBB) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Handle Assembly Parts Diagram

21" Super Recycler Walk-Behind Mower

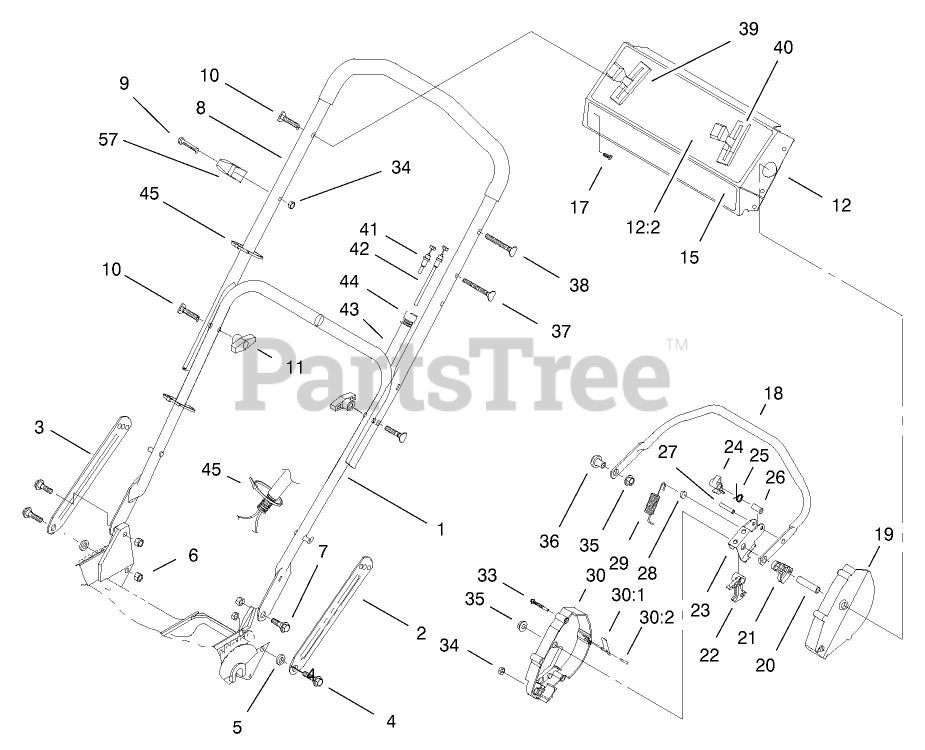

Handle Assembly Parts Diagram

  • Title

1

Toro 82-5531-03

See Supercession: 82-5530
(Superseded to 82-5530)

$

$

Not available

2

Toro 84-8361-03

See Supercession: 100-3298-03
(Superseded to 100-3298-03)

$22.99

$

In Stock, Qty 9

0

3

Toro 84-8401-03

See Supercession: 100-3297-03
(Superseded to 100-3297-03)

$9.49

$

In Stock, only 2 left!

0

4

Toro 27-7210

SCREW-SHOULDER

$8.99

$

In Stock, Qty 6

0

5

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

6

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 27-7211

SCREW-SHOULDER

$

$

Not available

8

Toro 100-2895-03

HANDLE-UPPER

$121.99

$

Usually ships in 3-6 days

0

9

Toro 321-51

SCREW-HH

$1.49

$

In Stock, Qty 5

0

10

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

11

Toro 98-7134

KNOB-HANDLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 98-9242

DISCONTINUED

$

$

Not available

12:2

Toro 98-1523

DISCONTINUED

$

$

Not available

15

Toro 99-6312

DECAL - CONSOLE

$

$

Not available

17

Toro 92-9665

SCREW-TAP

$7.49

$

In Stock, Qty 17

0

18

Toro 52-7430-03

DISCONTINUED

$

$

Not available

19

Toro 46-5460

DISCONTINUED

$

$

Not available

20

Toro 46-5590

TUBING-SPACER

$

$

Not available

21

Toro 46-5520

LEVER-TRACTION

$

$

Not available

22

Toro 66-0180

DISCONTINUED

$

$

Not available

23

Toro 46-5540

LEVER-CABLE

$20.99

$

In Stock, only 2 left!

0

24

Toro 46-5530

HOOK-CONTROL

$

$

Not available

25

Toro 46-5510

SPRING-TORSION

$

$

Not available

26

Toro 46-5550

SPACER

$

$

Not available

27

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, only 3 left!

0

28

Toro 66-0170

WASHER-NYLON

$5.99

$

In Stock, only 4 left!

0

29

Toro 66-0190

SPRING-DETENT

$34.99

$

Usually ships in 3-6 days

0

30

Toro 12-3429

DISCONTINUED

$

$

Not available

30:1

Toro 52-7410

SPRING-LEAF

$

$

Not available

30:2

Toro 57-6290

PIN-INSERT

$

$

Not available

33

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

34

Toro 3296-75

NUT-LOCK NI

$

$

Not available

35

Toro 3296-74

See Supercession: 3296-72
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

36

Toro 49-1630

SPACER-SUPPORT

$10.99

$

Usually ships in 3-6 days

0

37

Toro 92-2267

SCREW-HANDLE

$6.99

$

In Stock, only 1 left!

0

38

Toro 17-9429

SCREW - HANDLE

$

$

Not available

39

Toro 100-5979

CONTROL-SPEED, GROUND

$

$

Not available

40

Toro 100-5988

DISCONTINUED

$

$

Not available

41

Toro 100-5980

CONTROL-CLUTCH

$93.99

$

Usually ships in 3-6 days

0

42

Toro 100-5977

DISCONTINUED

$

$

Not available

43

Toro 100-8776

COVER-CABLES, CONTROL

$

$

Not available

44

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

45

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

57

Toro 93-7383

See Supercession: 86-9671
(Superseded to 86-9671)

$4.99

$

In Stock, Qty 14

0
