20581 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Control Assembly Parts Diagram

Walk-Behind Mower

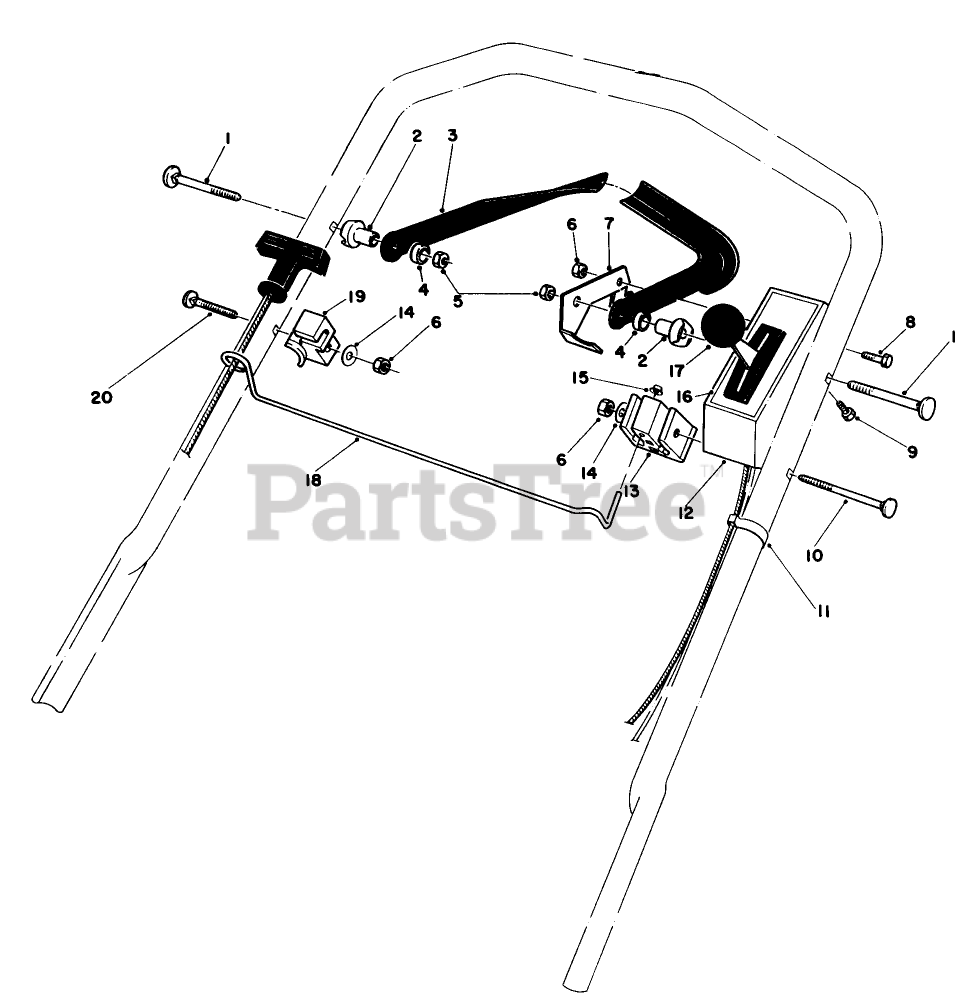

Control Assembly Parts Diagram

  • Title

1

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

2

Toro 49-1630

SPACER-SUPPORT

$10.99

$

Usually ships in 3-6 days

0

3

Toro 46-5560

DISCONTINUED
(Superseded to 52-7430-03)

$

$

Not available

4

Toro 256-276

SPACER-NYLON

$3.49

$

Usually ships in 3-6 days

0

5

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 329G42

Nut-Lock

$

$

Currently unavailable

7

Toro 46-7950

See Supercession: 66-5350
(Superseded to 66-5350)

$16.99

$

Usually ships in 3-6 days

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 46-6432

SCREW-HANDLE

$15.99

$

Usually ships in 3-6 days

0

11

Toro 218-465

BOWDEN CLIP

$

$

Not available

12

Toro 11-6749

DISCONTINUED

$

$

Not available

13

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

16

Toro 49-7790

DISCONTINUED

$

$

Not available

17

Toro 49-4193

THROTTLE CONT-SERVICE

$93.99

$

Usually ships in 3-6 days

0

18

Toro 46-7970

DISCONTINUED

$

$

Not available

19

Toro 46-7960

ROD CATCH

$20.99

$

Usually ships in 3-6 days

0

20

Toro 46-6430

SCREW-HANDLE

$13.99

$

Usually ships in 3-6 days

0
