20584 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) Carburetor Assembly Parts Diagram

Walk-Behind Mower

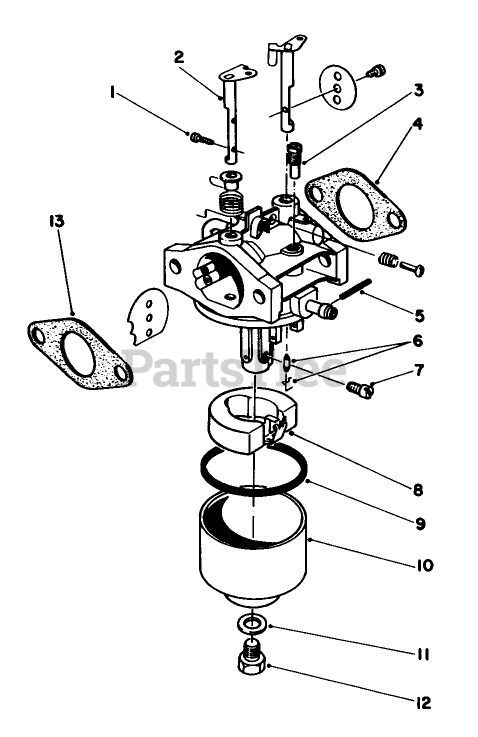

Carburetor Assembly Parts Diagram

  • Title

1

Toro 81-2160

SCREW

$5.49

$

Usually ships in 3-6 days

0

2

Toro 81-1950

SHAFT-CHOKE

$

$

Not available

3

Toro 81-1030

PILOT JET

$37.99

$

Usually ships in 3-6 days

0

4

Toro 81-0780

GASKET-CARB

$

$

Not available

5

Toro 81-0980

See Supercession: 81-2600
(Superseded to 81-2600)

$8.99

$

Usually ships in 3-6 days

0

6

Toro 81-1600

NEEDLE VALVE ASM

$

$

Not available

7

Toro 81-1940

DISCONTINUED

$

$

Not available

Toro 81-2340

JET-HIGH ALTITUDE

$21.99

$

Usually ships in 3-6 days

0

8

Toro 81-0970

FLOAT

$65.99

$

Usually ships in 3-6 days

0

9

Toro 81-1010

GASKET

$

$

Not available

10

Toro 81-1610

See Supercession: 81-5660
(Superseded to 81-5660)

$77.99

$

Usually ships in 3-6 days

0

11

Toro 81-1020

GASKET

$

$

Not available

12

Toro 81-1000

See Supercession: 81-5670
(Superseded to 81-5670)

$15.99

$

Usually ships in 3-6 days

0

13

Toro 81-0090

GASKET-AIR CLEANER

$8.99

$

In Stock, only 4 left!

0

Toro 81-1960

CARBURETOR KIT

Note: Not Illustrated.

$

$

Not available

Toro 81-1930

See Supercession: 81-4900
(Superseded to 81-4900)

Note: Not Illustrated.

$

$

Not available
