20624 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) Handle Assembly Parts Diagram

Walk-Behind Mower

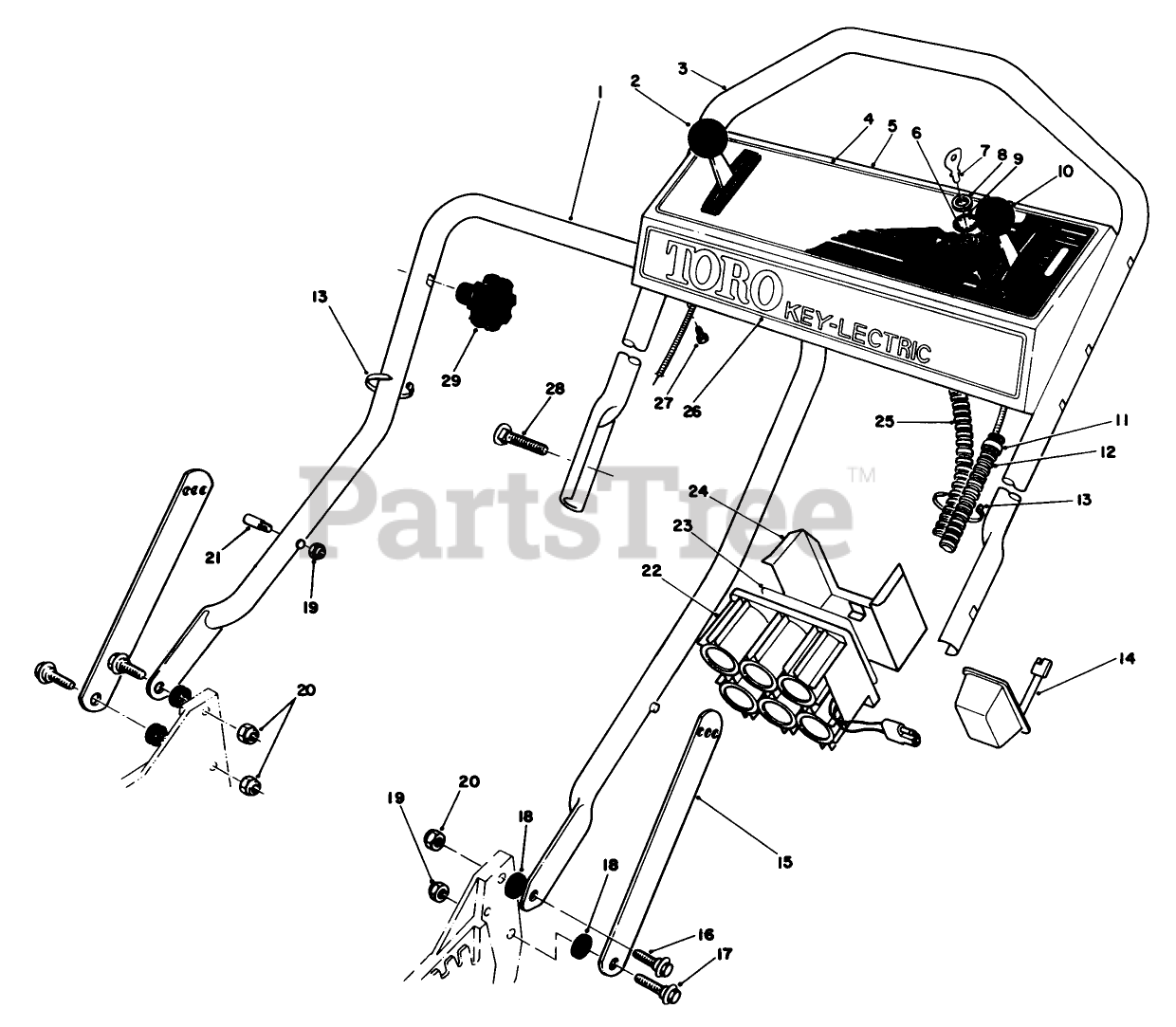

Handle Assembly Parts Diagram

  • Title

1

Toro 43-1361

DISCONTINUED

$

$

Not available

2

Toro 46-6010

SERVICE THROTTLE CONTRO

$

$

Not available

3

Toro 46-5411

DISCONTINUED
(Superseded to 84-8332)

$

$

Not available

4

Toro 53-4780

DISCONTINUED

$

$

Not available

5

Toro 12-2369

DISCONTINUED

$

$

Not available

6

Toro 46-5780

STARTER SWITCH ASM

$33.99

$

In Stock, Qty 10

0

7

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 20+

0

8

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

9

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

10

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

11

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

12

Toro 46-6440

DISCONTINUED

$

$

Not available

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 6-9780

See Supercession: 131-0848
(Superseded to 131-0848)

$86.99

$

Usually ships in 3-6 days

0

15

Toro 43-1370

See Supercession: 98-7138
(Superseded to 98-7138)

$

$

Not available

16

Toro 27-7211

SCREW-SHOULDER

$

$

Not available

17

Toro 27-7210

SCREW-SHOULDER

$8.99

$

In Stock, Qty 6

0

18

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

19

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$40.99

$

Usually ships in 3-6 days

0

22

Toro 55-7520

BATTERY ASSEMBLY,WET

$

$

Not available

23

Toro 55-8190

See Supercession: 92-8659
(Superseded to 92-8659)

$

$

Not available

24

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$

$

Not available

25

Toro 49-8311

WIRE HARNESS

$178.99

$

Usually ships in 3-6 days

0

26

Toro 46-8460

DISCONTINUED

$

$

Not available

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

29

Toro 19-4050

KNOB

$18.99

$

In Stock, Qty 5

0
