20638 - Toro 48cm Multicycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) Upper Handle Assembly Parts Diagram

48cm Multicycler Walk-Behind Mower

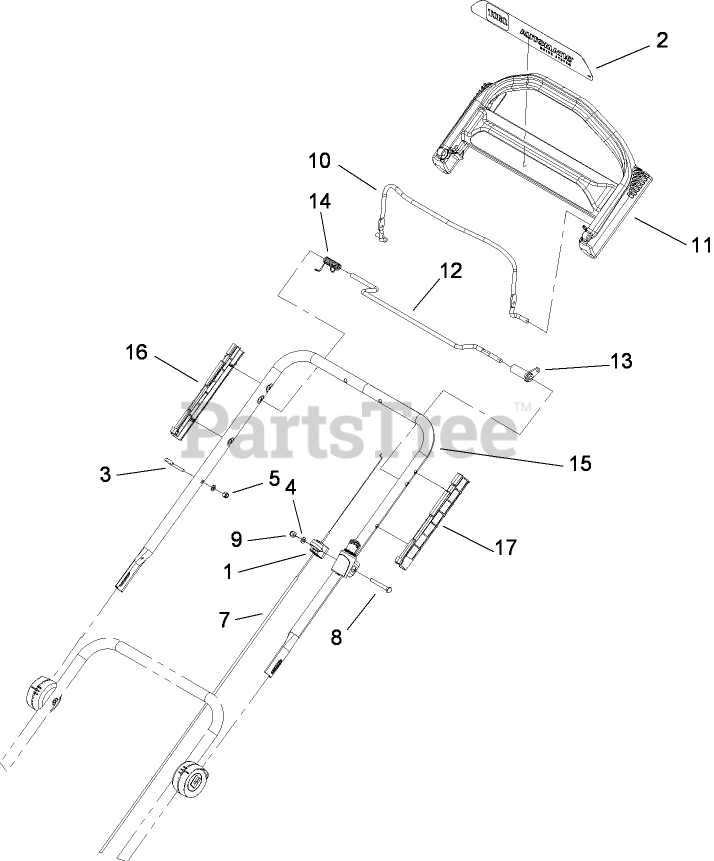

Upper Handle Assembly Parts Diagram

  • Title

1

Toro 99-5239

See Supercession: 136-5864
(Superseded to 136-5864)

$3.49

$

In Stock, Qty 20+

0

2

Toro 110-7056

DECAL-HANDLE

$

$

Not available

3

Toro 110-7186

GUIDE-CORD

$

$

Not available

4

Toro 110-8450

WASHER

$

$

Currently unavailable

5

Toro 110-8451

NUT-HEX, NI

$

$

Currently unavailable

7

Toro 110-9162

CABLE-TRACTION

$34.99

$

Usually ships in 3-6 days

0

8

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

9

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

10

Toro 104-8679-03

See Supercession: 131-0880-03
(Superseded to 131-0880-03)

$28.99

$

Usually ships in 3-6 days

0

11

Toro 104-8678

HANDLE-CONTROL

$92.99

$

In Stock, Qty 10

0

12

Toro 99-1588

See Supercession: 136-7150
(Superseded to 136-7150)

$18.99

$

In Stock, only 2 left!

0

13

Toro 99-1589

LEVER-TRACTION

$8.49

$

In Stock, Qty 15

0

14

Toro 104-8690

See Supercession: 136-7166
(Superseded to 136-7166)

$3.99

$

In Stock, Qty 20+

0

15

Toro 114-5369

HANDLE-UPPER
(Superseded to 110-7084)

$

$

Not available

16

Toro 105-6841

GUIDE-RH

$9.49

$

In Stock, only 2 left!

0

17

Toro 105-6842

GUIDE-LH

$9.49

$

In Stock, only 2 left!

0
