20656 - Toro 55cm Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) Electrical Assembly Parts Diagram

55cm Recycler Walk-Behind Mower

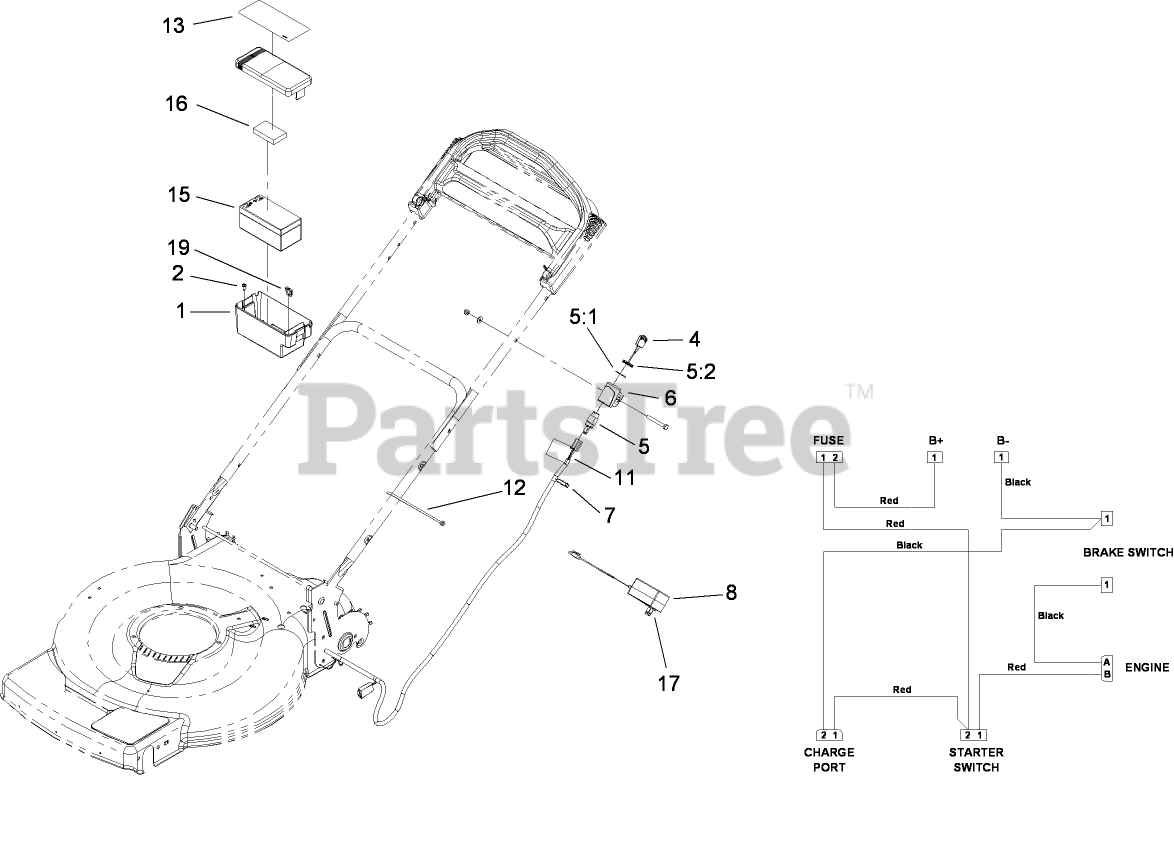

Electrical Assembly Parts Diagram

  • Title

1

Toro 108-4844

BATTERY BOX ASM

$

$

Not available

2

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

4

Toro 700918

KEY

$6.99

$

In Stock, Qty 11

0

5

Toro 46-5780

STARTER SWITCH ASM

$33.99

$

In Stock, Qty 10

0

5:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

5:2

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

6

Toro 108-9760

MOUNT-SWITCH

$6.49

$

In Stock, Qty 9

0

7

Toro 106-8378

HARNESS-WIRE

$116.99

$

In Stock, only 2 left!

0

8

Toro 98-2391

CHARGER-EUROPEAN, 12V DC

$

$

Not available

11

Toro 104-7953

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

13

Toro 108-4791

DECAL-INSTRUCTIONAL

$

$

Not available

15

Toro 106-8397

BATTERY-WET

$82.99

$

In Stock, only 3 left!

0

16

Toro 107-3774

FOAM-BATTERY, TOP

$5.49

$

In Stock, Qty 10

0

17

Toro 107-3749

ADAPTER-CHARGER

$29.99

$

Usually ships in 3-6 days

0

19

Toro 99-6124

FUSE-40 AMP

$5.99

$

In Stock, Qty 9

0
