20695 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) Handle Assembly Parts Diagram

Walk-Behind Mower

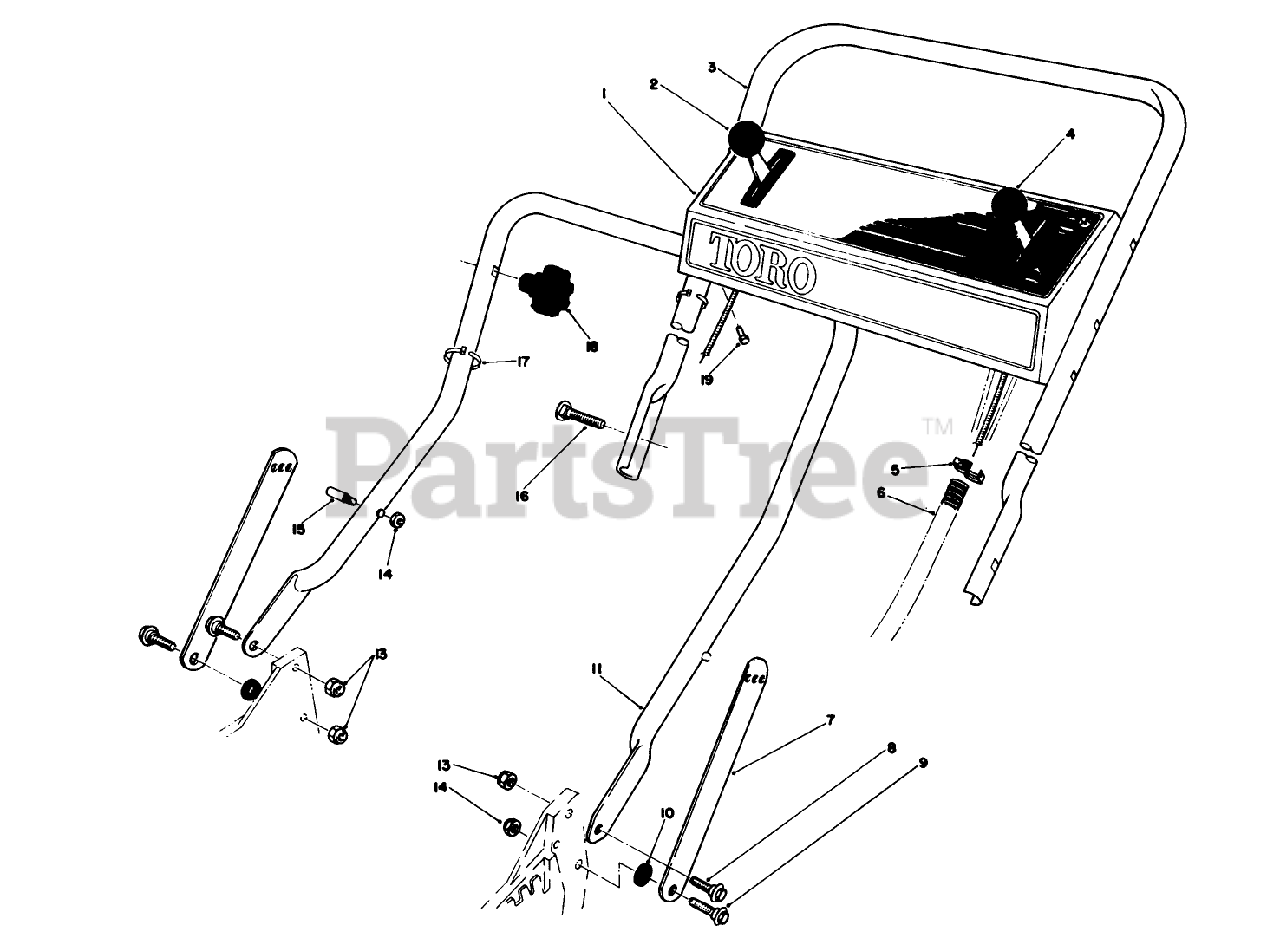

Handle Assembly Parts Diagram

  • Title

1

Toro 61

4320 Panel-Control

$

$

Currently unavailable

2

Toro 46-5430

GROUND SPEED CONTROL

$108.99

$

Usually ships in 3-6 days

0

3

Toro 494234

Handle-Upper

$

$

Currently unavailable

4

Toro 46-5447

THROTTLE CONTROL

$205.99

$

Usually ships in 3-6 days

0

5

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

6

Toro 46-6440

DISCONTINUED

$

$

Not available

7

Toro 43-1370

See Supercession: 98-7138
(Superseded to 98-7138)

$

$

Not available

8

Toro 27-7211

SCREW-SHOULDER

$

$

Not available

9

Toro 27-7210

SCREW-SHOULDER

$8.99

$

In Stock, Qty 6

0

10

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

11

Toro 43-1361

DISCONTINUED

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 329647

Locknut

$

$

Currently unavailable

15

Toro 49-2750

HANDLE PIN

$40.99

$

Usually ships in 3-6 days

0

16

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 194050

Horn

$

$

Currently unavailable

19

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
