20716 - Toro Walk-Behind Mower (SN: 099000001 - 099999999) (1999) Gear Case Assembly Parts Diagram

Walk-Behind Mower

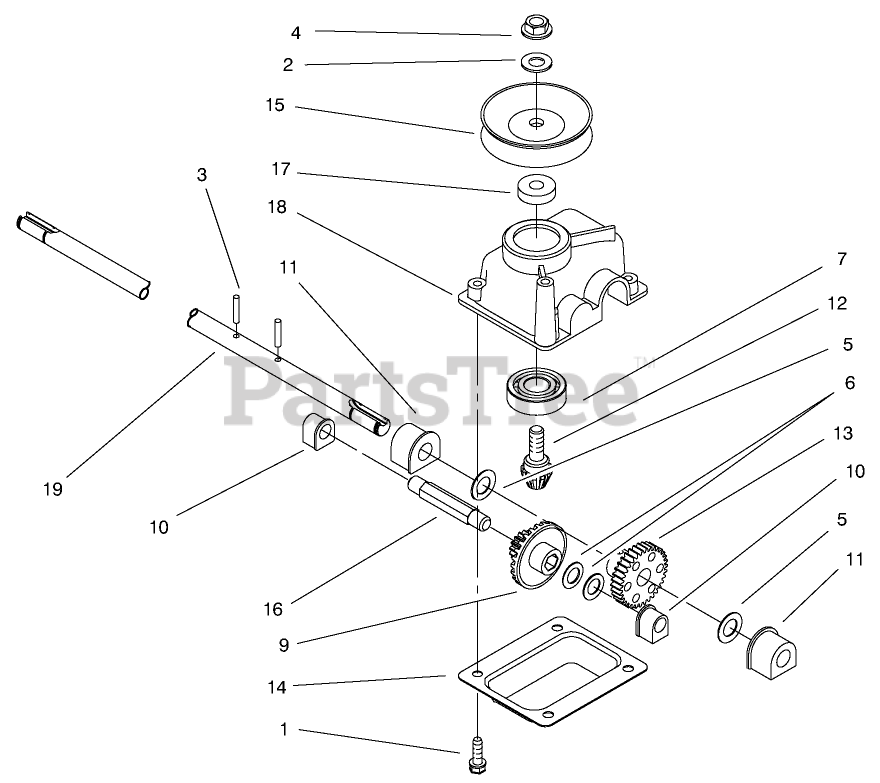

Gear Case Assembly Parts Diagram

  • Title

1

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 20+

0

4

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

5

Toro 36-4780

WASHER-PLAIN

$8.99

$

In Stock, Qty 20+

0

6

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

7

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

9

Toro 55-3760

See Supercession: 104-7668
(Superseded to 104-7668)

$38.99

$

In Stock, Qty 9

0

10

Toro 60-8750

BUSHING

$7.49

$

In Stock, only 2 left!

0

11

Toro 60-8850

BUSHING

$8.99

$

In Stock, Qty 7

0

12

Toro 60-8890

See Supercession: 104-7667
(Superseded to 104-7667)

$19.99

$

In Stock, Qty 7

0

13

Toro 614596

GEAR

$59.99

$

In Stock, only 3 left!

0

14

Toro 614668-03

COVER-CASE, GEAR

$10.99

$

In Stock, only 2 left!

0

15

Toro 614669

HALF-PULLEY

$27.99

$

In Stock, only 2 left!

0

16

Toro 614696

SHAFT-INTERMEDIATE

$124.99

$

Usually ships in 3-6 days

0

17

Toro 62-6660

SPACER

$0.99

$

In Stock, Qty 5

0

18

Toro 92-7727

See Supercession: 104-7619
(Superseded to 104-7619)

$49.99

$

In Stock, only 2 left!

0

19

Toro 93-0239

See Supercession: 104-7670
(Superseded to 104-7670)

$159.99

$

In Stock, only 1 left!

0
