20730 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) Engine Assembly Parts Diagram

Walk-Behind Mower

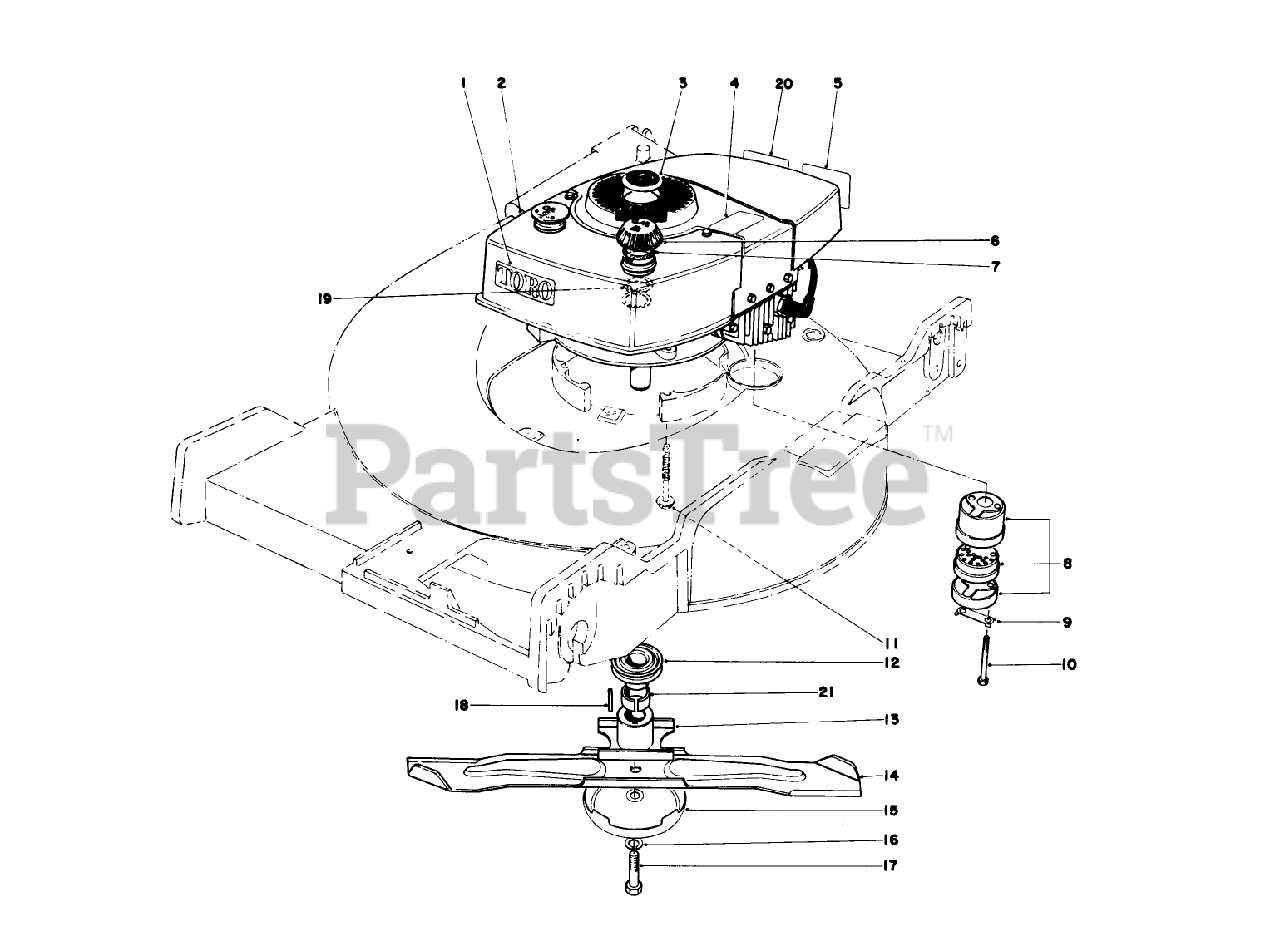

Engine Assembly Parts Diagram

  • Title

1

Toro 18-8960

Decal Toro

$

$

Currently unavailable

2

Toro 221-543

Engine

$

$

Currently unavailable

3

Toro 23-0600

See Supercession: 38-1480
(Superseded to 38-1480)

$16.99

$

Usually ships in 3-6 days

0

4

Toro 36-7820

DISCONTINUED

$

$

Not available

5

Toro 20-2710

DISCONTINUED

$

$

Not available

6

Toro 27-7870

See Supercession: 42-0682
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$

$

Not available

8

Toro 5-4769

MUFFLER ASM

$68.99

$

Usually ships in 3-6 days

0

Toro 36-3200

See Supercession: 39-5930
(Superseded to 39-5930)

Note: Not illustrated

$

$

Not available

9

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

11

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$

$

Not available

12

Toro 24-6580

DISCONTINUED

$

$

Not available

13

Toro 24-6560

BLADE RETAINER WA

$169.99

$

Usually ships in 3-6 days

0

14

Toro 26-0880

See Supercession: 107-4276-03
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 2 left!

0

15

Toro 8-4240

See Supercession: 80-2770
(Superseded to 80-2770)

$

$

Not available

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

17

Toro 23-0080

BLADE SCREW

$

$

Not available

18

Toro 21-5070

KEY-SQUARE

$

$

Not available

19

Toro 2210-143

DISCONTINUED

$

$

Not available

20

Toro 36-7840

Decal-Maintenance

$

$

Currently unavailable

21

Toro 24-8880

DISCONTINUED

$

$

Not available
