20745 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) Handle Assembly Parts Diagram

Walk-Behind Mower

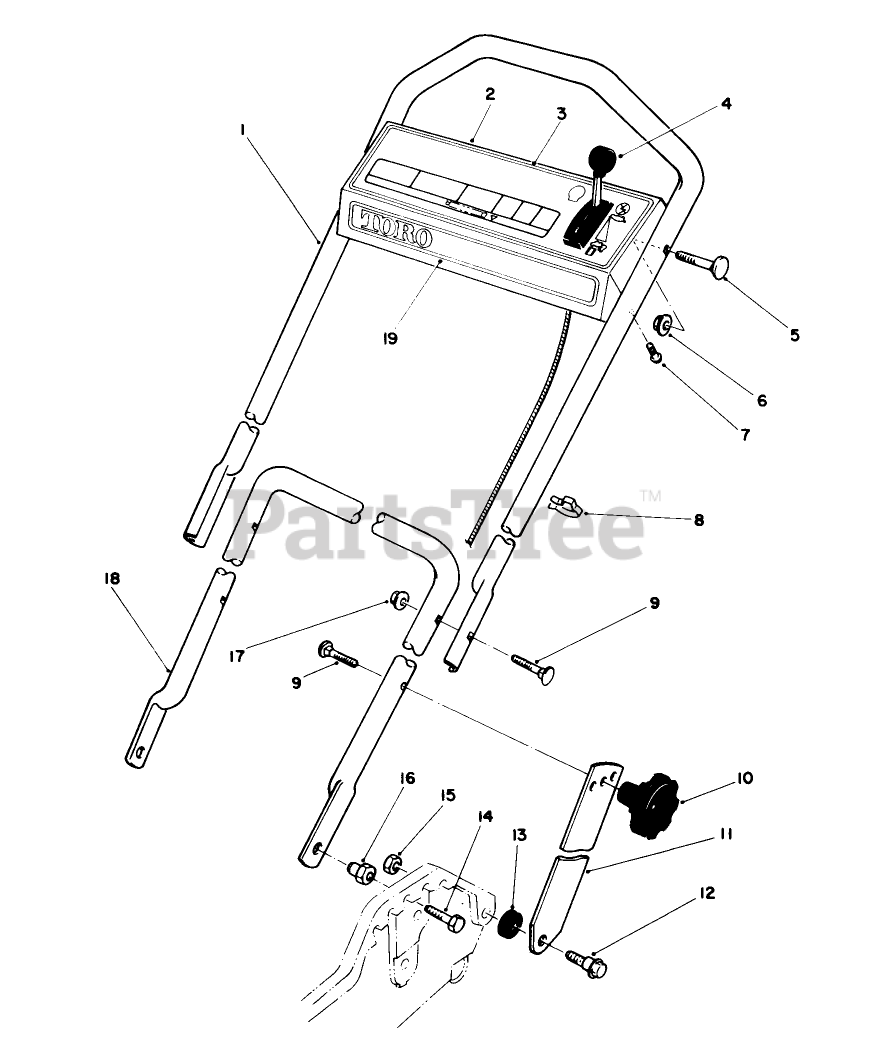

Handle Assembly Parts Diagram

  • Title

1

Toro 52-7420

UPPER HANDLE

$179.99

$

Usually ships in 3-6 days

0

2

Toro 12-6579

DISCONTINUED

$

$

Not available

3

Toro 62-4220

DISCONTINUED

$

$

Not available

4

Toro 49-4183

THROTTLE CONT-SERVICE

$

$

Not available

5

Toro 46-6433

HANDLE SCREW

$

$

Not available

6

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 7

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 218-466

DISCONTINUED

$

$

Not available

9

Toro 17-9424

DISCONTINUED
(Superseded to 6-6330)

$

$

Not available

10

Toro 19-4050

KNOB

$18.99

$

In Stock, Qty 5

0

11

Toro 43-1370

See Supercession: 98-7138
(Superseded to 98-7138)

$

$

Not available

12

Toro 27-7210

SCREW-SHOULDER

$8.99

$

In Stock, Qty 6

0

13

Toro 3-3287

SPACER

$5.99

$

In Stock, Qty 11

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 12-2080

HANDLE PIVOT NUT

$28.99

$

Usually ships in 3-6 days

0

17

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 50-9920

DISCONTINUED

$

$

Not available

19

Toro 62-4180

DISCONTINUED

$

$

Not available

Toro 12-5839

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
