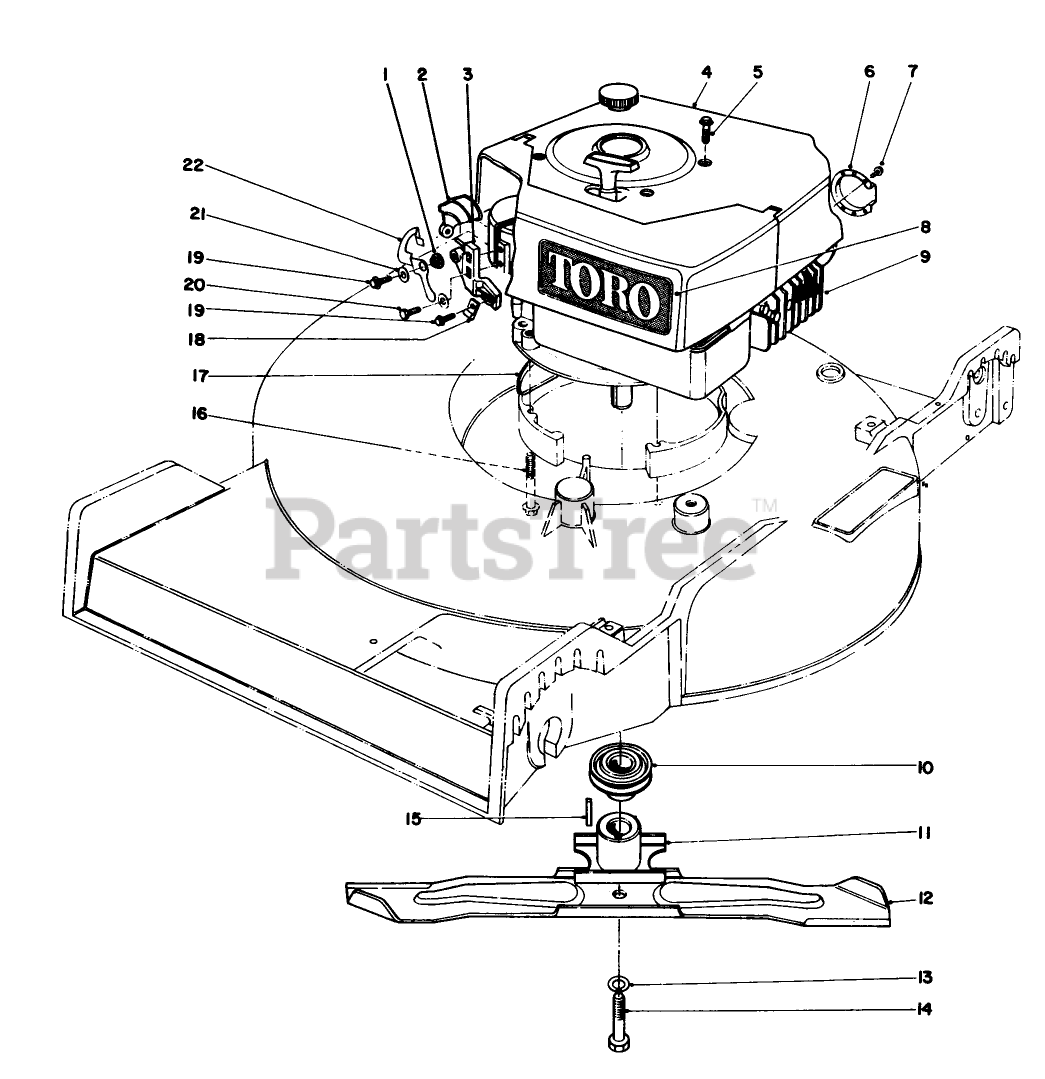

20755 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) Engine Assembly Parts Diagram

Walk-Behind Mower

Engine Assembly Parts Diagram

  • Title

1

Toro 25-0520

BUSHING

$38.99

$

Usually ships in 3-6 days

0

2

Toro 25-0350

INTERLOCK LEVER

$

$

Not available

3

Toro 27-9280

DISCONTINUED

$

$

Not available

4

Toro 37-9830

SHROUD

$218.99

$

Usually ships in 3-6 days

0

5

Toro 32144-60

DISCONTINUED

$

$

Not available

6

Toro 2210-184

DISCONTINUED

$

$

Not available

7

Toro 2210-173

DISCONTINUED

$

$

Not available

8

Toro 44-0510

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 4 left!

0

9

Toro 221-549

Engine

$

$

Currently unavailable

10

Toro 23-0130

See Supercession: 93-0278
(Superseded to 93-0278)

$54.99

$

Usually ships in 3-6 days

0

11

Toro 23-0110

See Supercession: 23-0110-03
(Superseded to 23-0110-03)

$

$

Not available

12

Toro 26-0880

See Supercession: 107-4276-03
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 2 left!

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

14

Toro 23-0080

BLADE SCREW

$

$

Not available

15

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

16

Toro 11-0581

3/8-16 X 2 CAPSCREW

$

$

Not available

17

Toro 27-7470

HOUSING CAP

$

$

Not available

18

Toro 2412-63

DISCONTINUED

$

$

Not available

19

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 25-8150

DISCONTINUED

$

$

Not available
