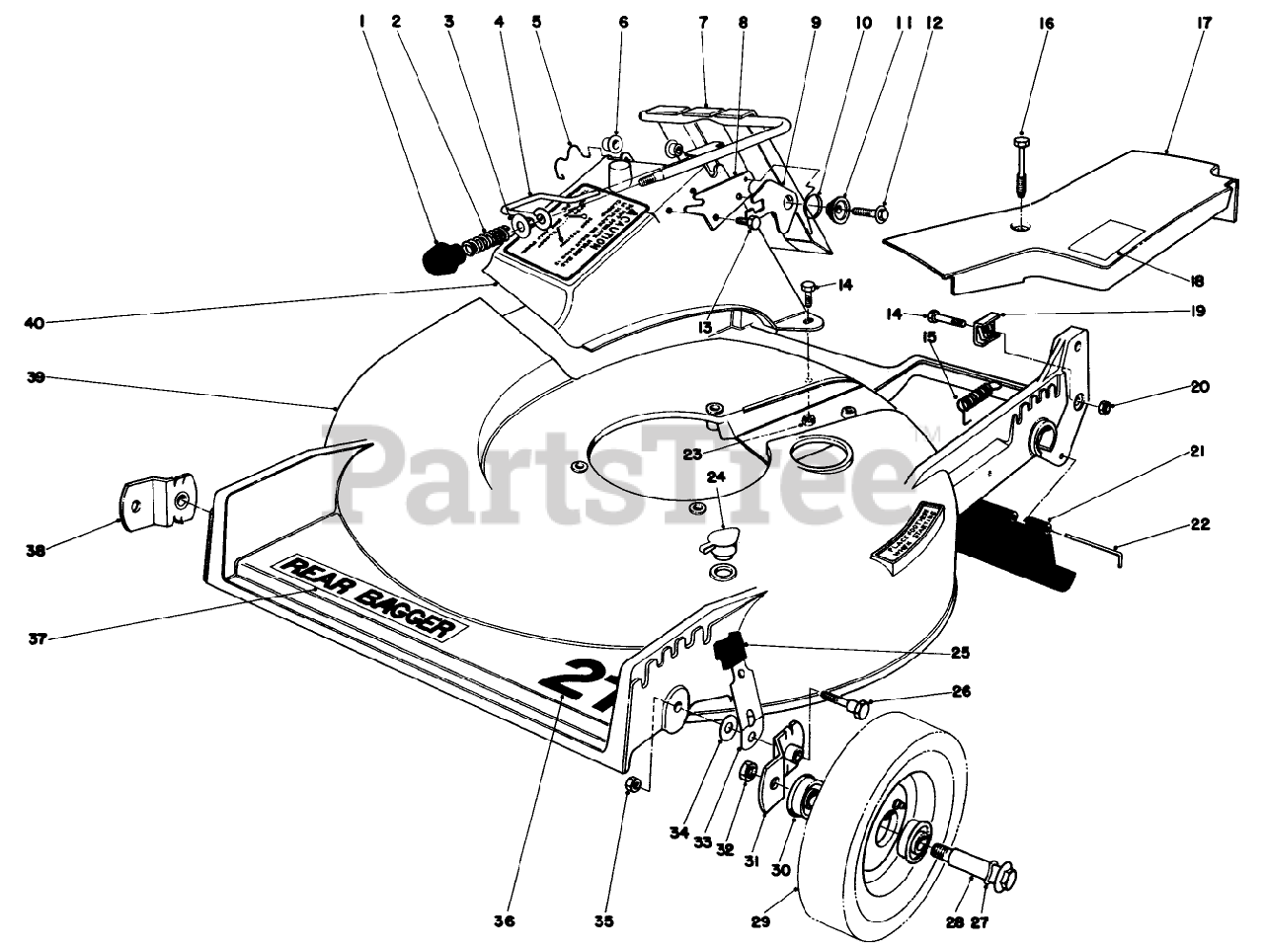

20775 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 233-37

KNOB

$37.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$

$

Not available

3

Toro 23-1120

WASHER

$21.99

$

Usually ships in 3-6 days

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 33-4830

DOOR RETAINER

$

$

Not available

6

Toro 23-0880

BUSHING-NYLON

$

$

Not available

7

Toro 33-5660

DISCONTINUED

$

$

Not available

8

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

9

Toro 23-1190

See Supercession: 42-4010
(Superseded to 42-4010)

$

$

Not available

10

Toro 33-4860

TORSION SPRING

$82.99

$

Usually ships in 3-6 days

0

11

Toro 23-1180

DISCONTINUED

$

$

Not available

12

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

13

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

14

Toro 321-7

SCREW-HH

$5.99

$

In Stock, Qty 5

0

15

Toro 38-0040

IDLER SPRING

$32.99

$

Usually ships in 3-6 days

0

16

Toro 37-7260

SCREW-HWH

$6.99

$

In Stock, Qty 9

0

17

Toro 29-9710

See Supercession: 52-7405
(Superseded to 52-7405)

$259.99

$

Usually ships in 3-6 days

0

18

Toro 3311-299

DISCONTINUED

$

$

Not available

19

Toro 29-9550

CLAMP-CABLE

$

$

Not available

20

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 3 left!

0

21

Toro 29-9180

SHIELD - TRAILING

$80.99

$

Usually ships in 3-6 days

0

22

Toro 33-3203

DISCONTINUED
(Superseded to 47-4682)

$

$

Not available

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 6-4500

WASHOUT PLUG

$

$

Not available

25

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

26

Toro 25-3440

PIVOT SCREW

$

$

Not available

27

Toro 3290-393

SPRING WASHER

$

$

Not available

28

Toro 3-2652

Bolt

$

$

Not available

29

Toro 38-6000

DISCONTINUED

$

$

Not available

30

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$

$

Not available

31

Toro 24-7710

PIVOT ARM ASM A

$177.99

$

Usually ships in 3-6 days

0

32

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

33

Toro 33-4850

DISCONTINUED

$

$

Not available

34

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

35

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

36

Toro 36-1030

DISCONTINUED

$

$

Not available

37

Toro 33-2320

DISCONTINUED

$

$

Not available

38

Toro 23-9120

PIVOT ARM ASM

$

$

Not available

39

Toro 29-4880

DISCONTINUED

$

$

Not available

40

Toro 36-1350

DISCHARGE CHUTE *B

$466.99

$

Usually ships in 3-6 days

0

Toro 8-2289

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
