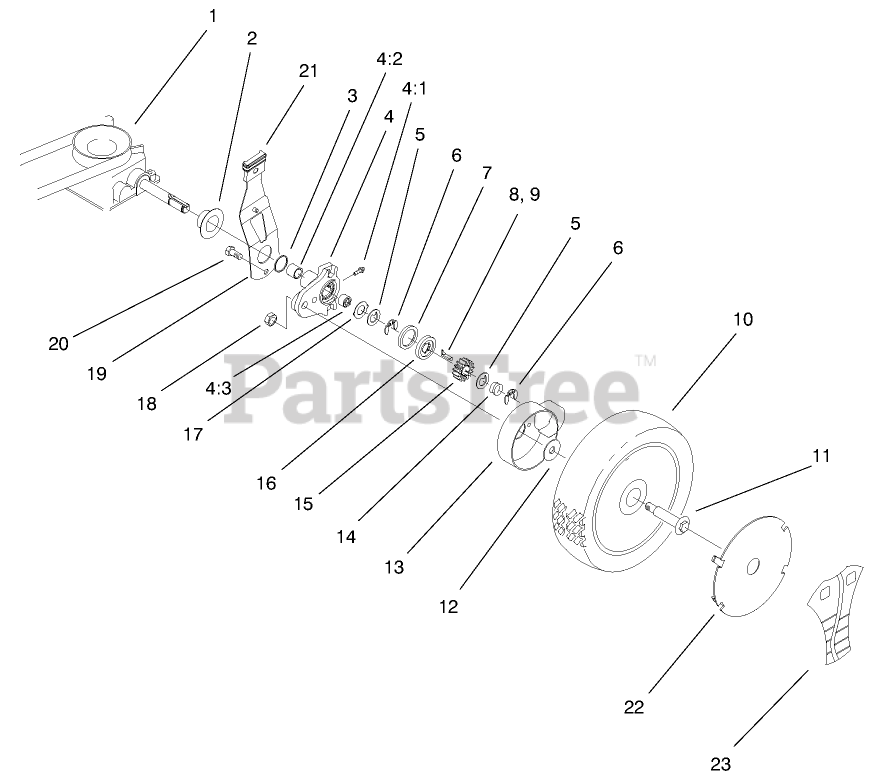

20779 - Toro 53cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Gear Case Wheel Assembly Parts Diagram

53cm Recycler Walk-Behind Mower

Gear Case Wheel Assembly Parts Diagram

  • Title

1

Toro 99-1598

V-BELT

$28.99

$

In Stock, only 2 left!

0

2

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

3

Toro 237-153

O-RING

$4.99

$

In Stock, Qty 10

0

4

Toro 63-8701

PIVOT ARM ASM

$56.99

$

In Stock, only 3 left!

0

4:1

Toro 302-56

FITTING-GREASE

$5.99

$

In Stock, Qty 8

0

4:2

Toro 48-2060

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 20+

0

4:3

Toro 70-9760

BUSHING

$5.49

$

In Stock, Qty 20+

0

5

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

6

Toro 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 20+

0

7

Toro 65-4710

RING-FRICTION

$3.99

$

In Stock, Qty 20+

0

8

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$8.49

$

In Stock, Qty 8

0

9

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$8.49

$

In Stock, Qty 20+

0

10

Toro 100-5955

WHEEL ASM

$63.99

$

Usually ships in 3-6 days

0

11

Toro 92-1057

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

12

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0

13

Toro 74-1660

COVER-WHEEL

$9.49

$

In Stock, Qty 20+

0

14

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

15

Toro 65-4750

GEAR-PINION

$12.99

$

In Stock, Qty 20+

0

16

Toro 65-4760

WASHER-CLUTCH

$2.49

$

In Stock, Qty 20+

0

17

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

18

Toro 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

19

Toro 63-8721

SPRING ARM ASM

$25.99

$

In Stock, only 2 left!

0

20

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

21

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

22

Toro 100-6351

COVER-WHEEL

$25.99

$

Usually ships in 3-6 days

0

23

Toro 100-1519

LABEL-WHEEL, SMART

$8.49

$

Usually ships in 3-6 days

0
