20829 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Engine And Blade Assembly Parts Diagram

48cm Recycler Walk-Behind Mower

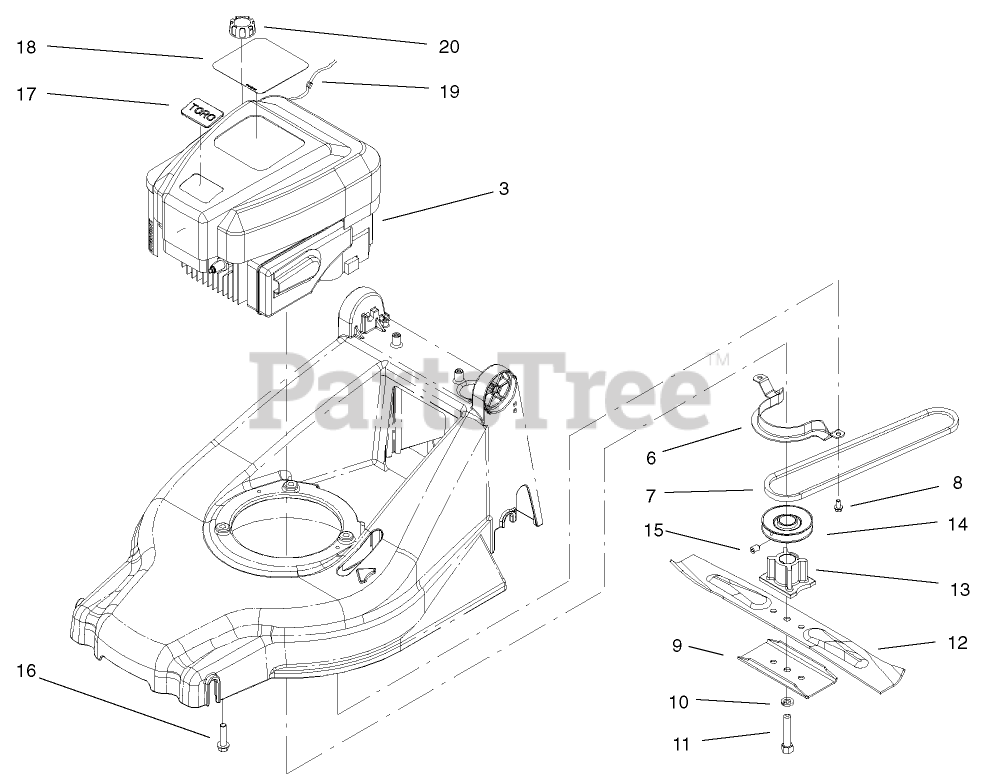

Engine And Blade Assembly Parts Diagram

  • Title

3

Engine-GTS 200

$

$

Not available

6

Toro 100-1523-03

GUIDE-BELT, ENGINE

$20.99

$

Usually ships in 3-6 days

0

7

Toro 93-0232

V-BELT

$18.99

$

In Stock, only 2 left!

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 80-0510-03

STIFFENER-BLADE

$20.99

$

In Stock, Qty 5

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 100-4368

BOLT-BLADE

$22.99

$

Usually ships in 3-6 days

0

12

Toro 71-9260-03

BLADE-48 CM

$

$

Not available

13

Toro 104-7554

RETAINER-BLADE

$

$

Not available

14

Toro 100-1102

PULLEY ASM

$129.99

$

Usually ships in 3-6 days

0

15

Toro 104-0214

See Supercession: 105-8875
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

16

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

17

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 1 left!

0

18

Toro 100-5951

DECAL-ENGINE

$

$

Not available

19

Toro 2210-316

STOP-ROPE

$8.99

$

Usually ships in 3-6 days

0

20

Toro 93-7198

CAP-GAS

$17.99

$

In Stock, Qty 6

0
