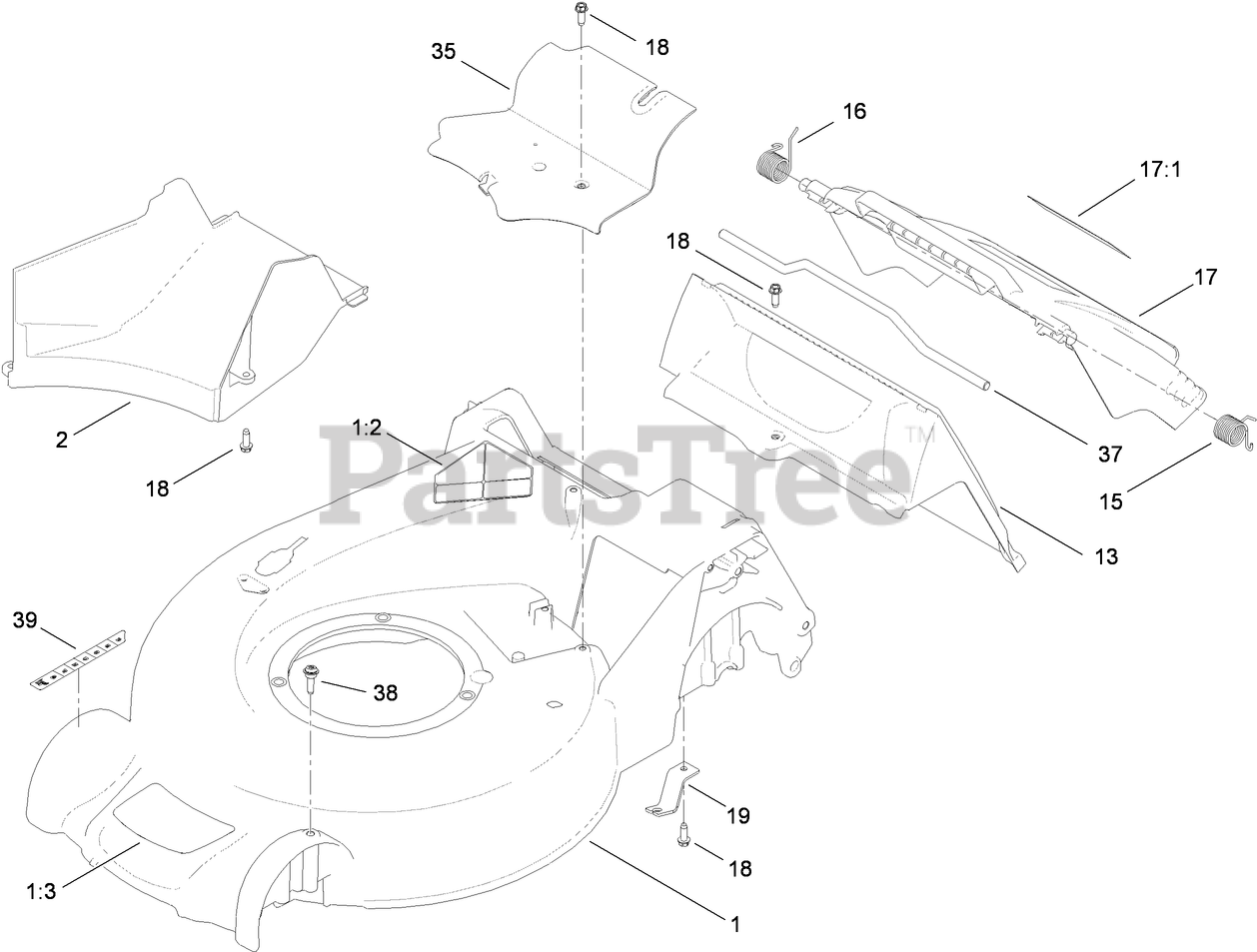

20835 - Toro 48cm Super Bagger Walk-Behind Mower (SN: 314000001 - 314999999) (2014) Housing and Rear Door Assembly Parts Diagram

48cm Super Bagger Walk-Behind Mower

Housing and Rear Door Assembly Parts Diagram

  • Title

1

Toro 117-9379

HOUSING ASM

$

$

Not available

1:2

Toro 112-8760

DECAL-DANGER

$12.99

$

In Stock, only 4 left!

0

1:3

Toro 119-2256

See Supercession: 120-3909
(Superseded to 120-3909)

$19.99

$

Usually ships in 3-6 days

0

2

Toro 117-4063

RAMP-DISCHARGE

$31.99

$

Usually ships in 3-6 days

0

13

Toro 114-2668

CHUTE

$43.99

$

Usually ships in 3-6 days

0

15

Toro 115-2859

SPRING-TORSION

$5.99

$

In Stock, Qty 8

0

16

Toro 114-7924

SPRING-TORSION

$3.99

$

In Stock, Qty 12

0

17

Toro 117-4085

REAR DOOR ASM

$53.99

$

Usually ships in 3-6 days

0

17:1

Toro 114-7982

DECAL-WARNING

$

$

Not available

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

19

Toro 117-9385

BRACKET-CABLE, TRACTION
(Superseded to 138-3230)

$10.99

$

Usually ships in 3-6 days

0

35

Toro 117-4062

COVER-BELT

$18.99

$

Usually ships in 3-6 days

0

37

Toro 117-9378

ROD-DEFLECTOR

$41.99

$

Usually ships in 3-6 days

0

38

Toro 119-2267

SCREW-SHOULDER, BHTF

$5.99

$

In Stock, Qty 20+

0

39

Toro 119-2283

DECAL-HOC

$7.99

$

Usually ships in 3-6 days

0
