20899 - Toro 53cm Super Bagger Walk-Behind Mower (SN: 401000000 - 999999999) Upper Handle Assembly Parts Diagram

53cm Super Bagger Walk-Behind Mower

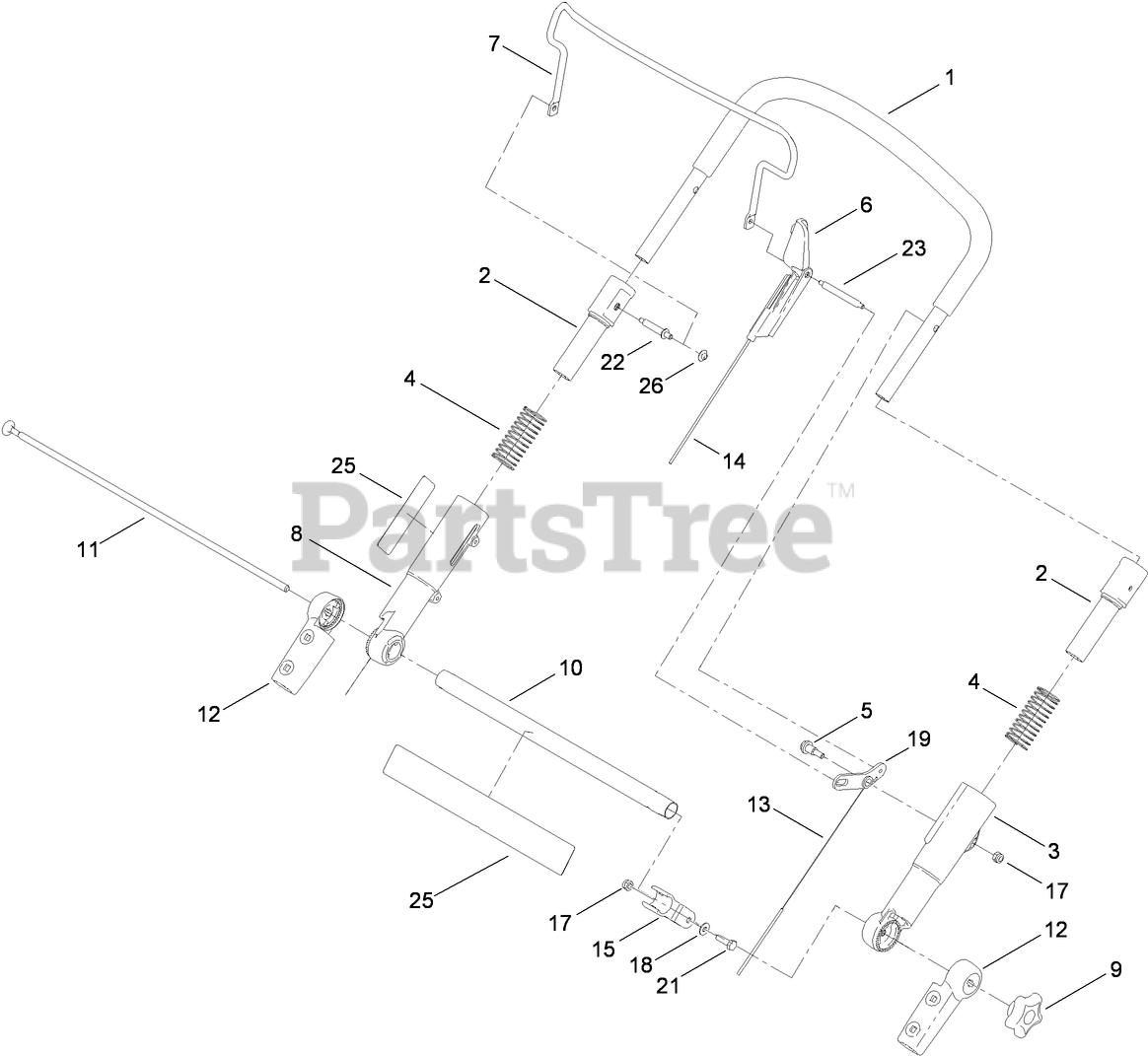

Upper Handle Assembly Parts Diagram

  • Title

1

Toro 108-0974

UPPER HANDLE ASM

$94.99

$

Usually ships in 3-6 days

0

2

Toro 112-8754

SLEEVE-INNER

$7.49

$

Usually ships in 3-6 days

0

3

Toro 112-1544

SLEEVE-OUTER, LH

$18.99

$

In Stock, only 2 left!

0

4

Toro 107-3869

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

5

Toro 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

6

Toro 112-8764

STOP-PIVOT

$5.49

$

In Stock, only 4 left!

0

7

Toro 110-1819-03

BAIL-BRAKE

$29.99

$

Usually ships in 3-6 days

0

8

Toro 112-1545

SLEEVE-OUTER, RH

$18.99

$

In Stock, only 1 left!

0

9

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

10

Toro 107-3867-03

TUBE-CROSS

$28.99

$

Usually ships in 3-6 days

0

11

Toro 107-3871

ROD-THREADED

$22.99

$

Usually ships in 3-6 days

0

12

Toro 107-3865

MOUNT-HANDLE, LOWER

$13.99

$

Usually ships in 3-6 days

0

13

Toro 110-9465

CABLE-TRACTION

$64.99

$

In Stock, only 2 left!

0

14

Toro 107-3903

CABLE-BRAKE

$55.99

$

In Stock, only 2 left!

0

15

Toro 112-8801

CLAMP-CABLE

$12.99

$

In Stock, only 1 left!

0

17

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 107-3893

LEVER-TRACTION

$4.49

$

In Stock, Qty 20+

0

21

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 108-0959

PIN-HANDLE

$7.49

$

In Stock, only 1 left!

0

23

Toro 108-1008

PIN-BAIL, LH

$7.49

$

In Stock, only 1 left!

0

25

Toro 120-3907

DECAL-ADS

$10.99

$

Usually ships in 3-6 days

0

26

Toro 108-9378

RETAINER-PUSH ON

$1.49

$

In Stock, only 4 left!

0
