20922 BC - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Engine Assembly Parts Diagram

48cm Rear Bagging Walk-Behind Mower

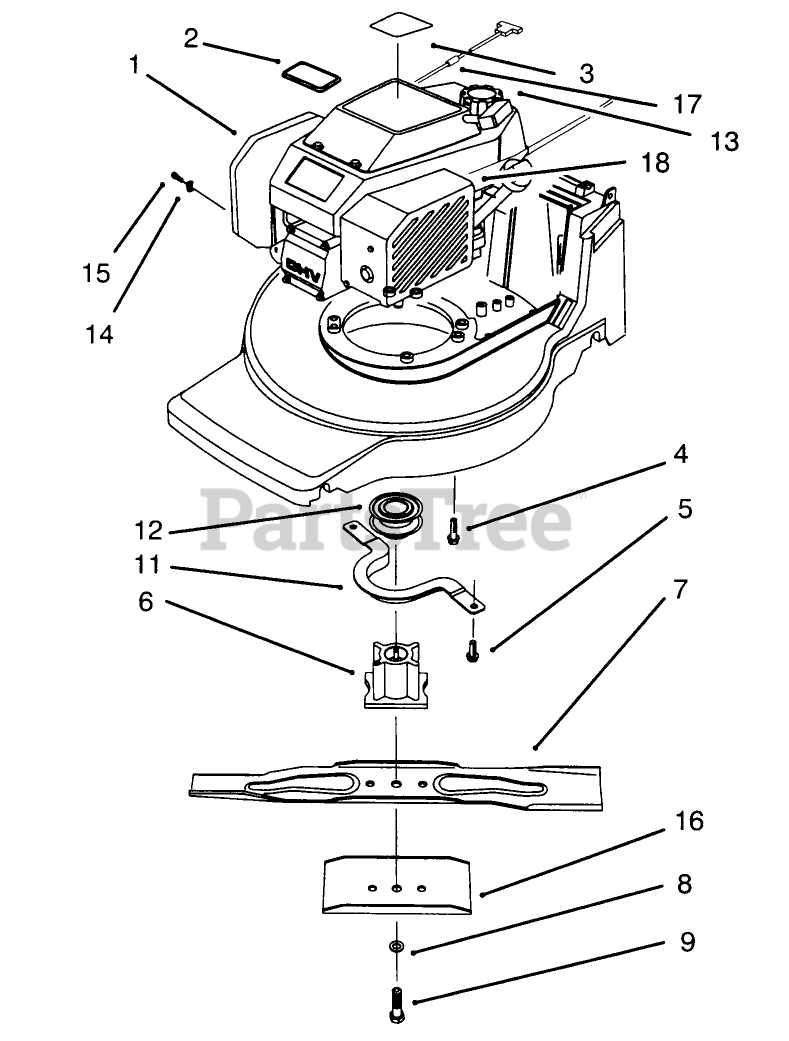

Engine Assembly Parts Diagram

  • Title

1

Toro 93-1368

See Supercession: 77-9280
(Superseded to 77-9280)

$1315.99

$

Usually ships in 3-6 days

0

2

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 93-4355

DISCONTINUED

$

$

Not available

4

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

5

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 71-7940

DISCONTINUED

$

$

Not available

7

Toro 92-9813

Blade
(Superseded to 92-9813-03)

Note: Obtain from Toro Europe N.V.

$89.99

$

Usually ships in 3-6 days

0

8

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

9

Toro 26-0672

BOLT-BLADE

$7.49

$

Usually ships in 3-6 days

0

11

Toro 71-7960

See Supercession: 71-7960-03
(Superseded to 71-7960-03)

$

$

Not available

12

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

13

Toro 93-7198

CAP-GAS

$17.99

$

In Stock, Qty 8

0

14

Toro 2210-249

CLAMP-CASING

$

$

Not available

15

Toro 86-7990

CLAMP SCREW F/W ENGINE

$

$

Not available

16

Toro 92-9812

Stiffener Blade
(Superseded to 92-9812-03)

Note: Obtain from Toro Europe N.V.

$28.99

$

Usually ships in 3-6 days

0

17

Toro 2210-316

STOP-ROPE

$8.99

$

Usually ships in 3-6 days

0

18

Toro 77-9550

COVER - BRAKE F/W

$

$

Not available
