20950 - Toro 48cm Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) Transmission and Rear Wheel Drive Assembly Parts Diagram

48cm Recycler Walk-Behind Mower

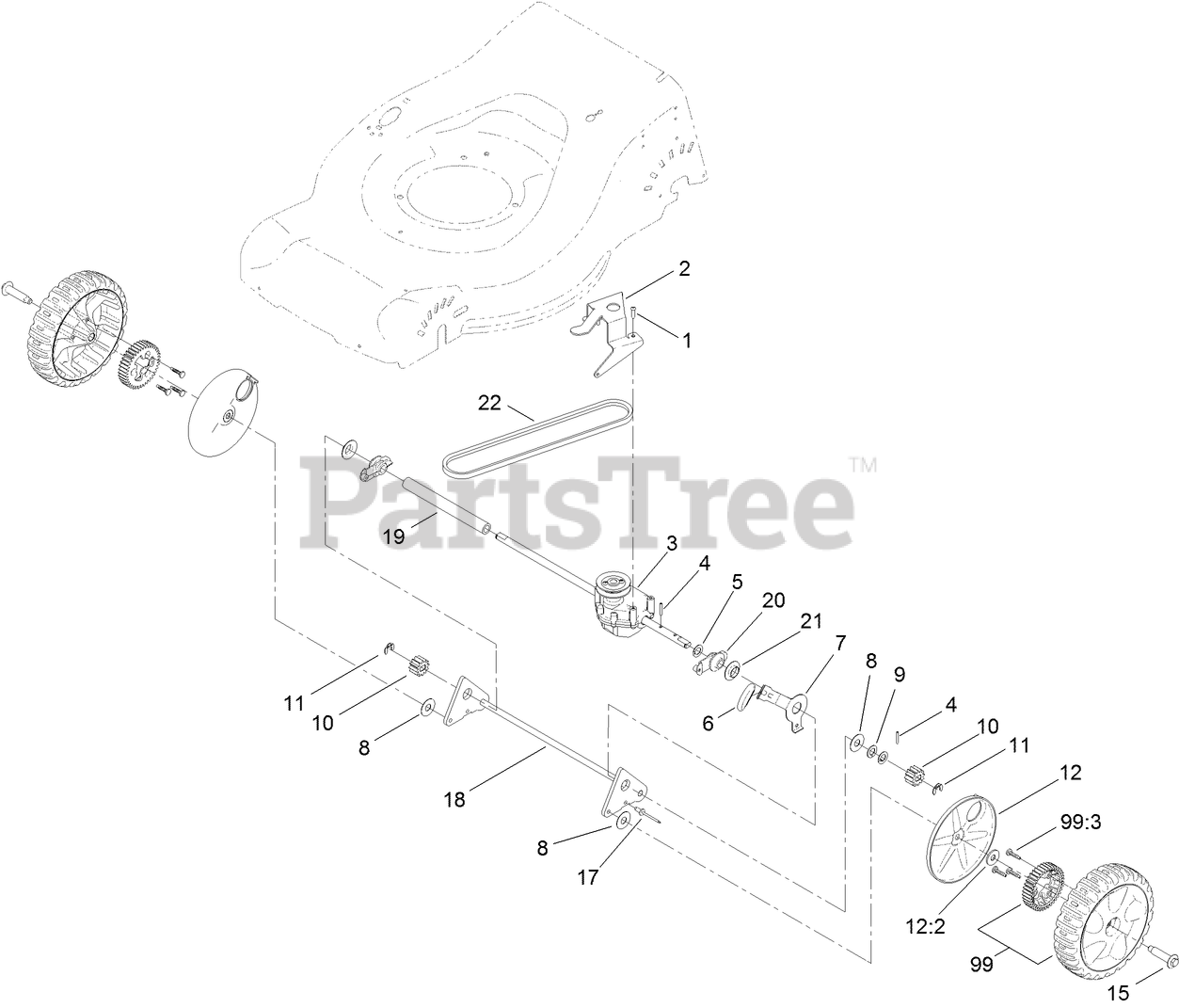

Transmission and Rear Wheel Drive Assembly Parts Diagram

  • Title

1

Toro 110-1271

SCREW-TORX, PAN HEAD

$

$

Currently unavailable

2

Toro 110-7158

BRACKET-GEAR CASE

$

$

Currently unavailable

3

Toro 120-0181

TRANSMISSION

$132.99

$

Usually ships in 3-6 days

0

4

Toro 110-7192

PIN-ROLL

$

$

Currently unavailable

5

Toro 112-3911

WASHER-THRUST, KEYED

$19.99

$

Usually ships in 3-6 days

0

6

Toro 110-7125

KNOB-HOC

$

$

Not available

7

Toro 120-0191

ARM-SPRING, REAR

$

$

Currently unavailable

8

Toro 110-7179

WASHER-PLAIN

$

$

Currently unavailable

9

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

10

Toro 115-4668

GEAR-PINION

$17.99

$

In Stock, Qty 20+

0

11

Toro 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 20+

0

12

Toro 110-1792

See Supercession: 127-6840
(Superseded to 127-6840)

$6.49

$

In Stock, Qty 20+

0

12:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

15

Toro 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

17

Toro 110-7193

RIVET-POP

$

$

Currently unavailable

18

Toro 120-0178

REAR PIVOT BAR ASM

$64.99

$

Usually ships in 3-6 days

0

19

Toro 115-3850

SPACER

$

$

Not available

20

Toro 110-7112

BUSHING-CAMLOCK

$

$

Currently unavailable

21

Toro 110-7171

SPACER-FLANGE

$

$

Currently unavailable

22

Toro 110-9429

V-BELT

$18.99

$

In Stock, Qty 20+

0

99

Toro 119-7068

8 INCH WHEEL AND GEAR ASM

$50.99

$

In Stock, Qty 5

0

99:3

Toro 27-6260

SCREW-DRIVE

$1.49

$

In Stock, Qty 20+

0
