20956 - Toro 55cm Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) Electrical Assembly Parts Diagram

55cm Recycler Walk-Behind Mower

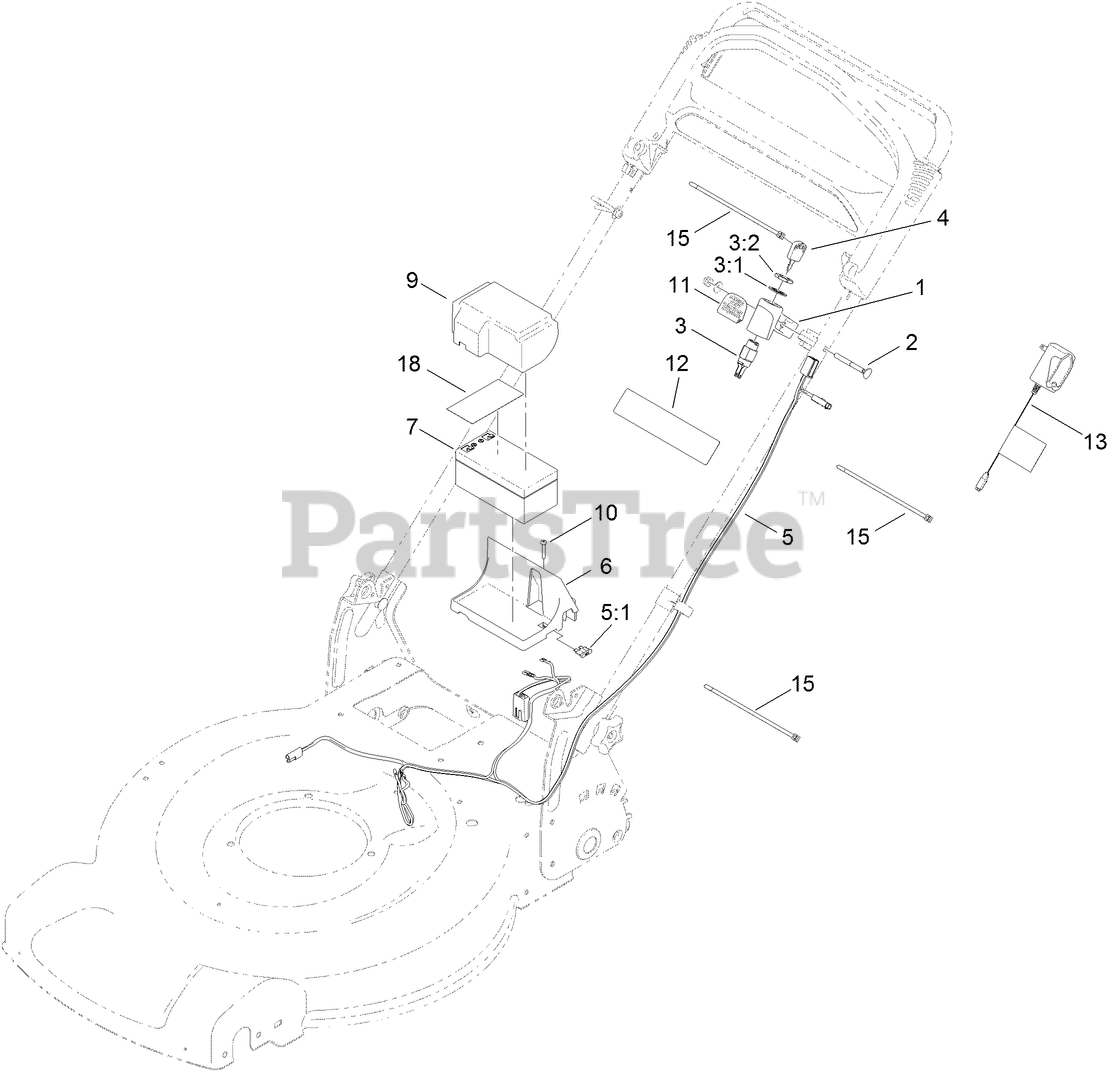

Electrical Assembly Parts Diagram

  • Title

1

Toro 120-5242

MOUNT-SWITCH

$

$

Not available

2

Toro 92-2270

SCREW-HANDLE

$9.49

$

In Stock, only 2 left!

0

3

Toro 46-5780

STARTER SWITCH ASM

$33.99

$

In Stock, Qty 10

0

3:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

3:2

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

4

Toro 700918

KEY

$6.99

$

In Stock, Qty 11

0

5

Toro 120-7035

HARNESS-WIRE

$113.99

$

Usually ships in 3-6 days

0

5:1

Toro 99-6124

FUSE-40 AMP

$5.99

$

In Stock, Qty 9

0

6

Toro 114-7936

TRAY-BATTERY

$12.99

$

In Stock, only 2 left!

0

7

Toro 106-8397

BATTERY-WET

$82.99

$

In Stock, only 3 left!

0

9

Toro 120-3329

COVER-BATTERY

$7.49

$

Usually ships in 3-6 days

0

10

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 13

0

11

Toro 114-2619

DECAL-ELECTRIC START

$

$

Not available

12

Toro 104-7953

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

13

Toro 120-3947

See Supercession: 136-9127
(Superseded to 137-9153)

$58.99

$

Usually ships in 3-6 days

0

15

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

18

Toro 112-8763

DECAL-TERMINAL, BATTERY

$4.49

$

Usually ships in 3-6 days

0
