20960 - Toro 55cm Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) Engine and Blade Assembly Parts Diagram

55cm Recycler Walk-Behind Mower

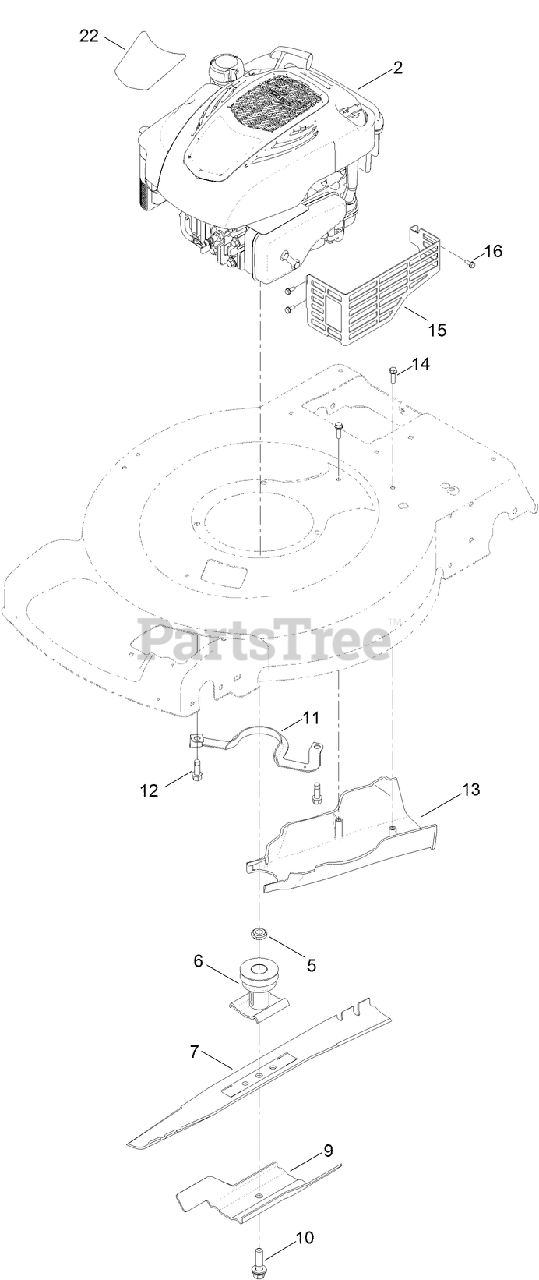

Engine and Blade Assembly Parts Diagram

  • Title

2

ENGINE-BRIGGS 126M020119F1

Note: Not serviced separately

$

$

Not available

2

ENGINE-BRIGGS 126M020119F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

5

Toro 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

6

Toro 130-6705

DRIVER-BLADE

$45.99

$

In Stock, only 3 left!

0

7

Toro 108-9783-03

See Supercession: 131-9683-03
(Superseded to 131-9683-03)

$35.99

$

In Stock, only 1 left!

0

9

Toro 105-6848-03

ACCELERATOR-BLADE

$19.99

$

In Stock, only 2 left!

0

10

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

11

Toro 130-6702-03

GUIDE-BELT

$9.49

$

In Stock, only 1 left!

0

12

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

13

Toro 130-6709

COVER-BELT, REAR

$17.99

$

In Stock, only 2 left!

0

14

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

15

Toro 104-7577-03

SHIELD-MUFFLER

$29.99

$

In Stock, only 2 left!

0

16

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

22

Toro 120-1935

DECAL-SHROUD

$

$

Not available
