20975 - Toro 76cm TimeMaster Walk-Behind Mower (SN: 314000001 - 314999999) (2014) Handle Assembly Parts Diagram

76cm TimeMaster Walk-Behind Mower

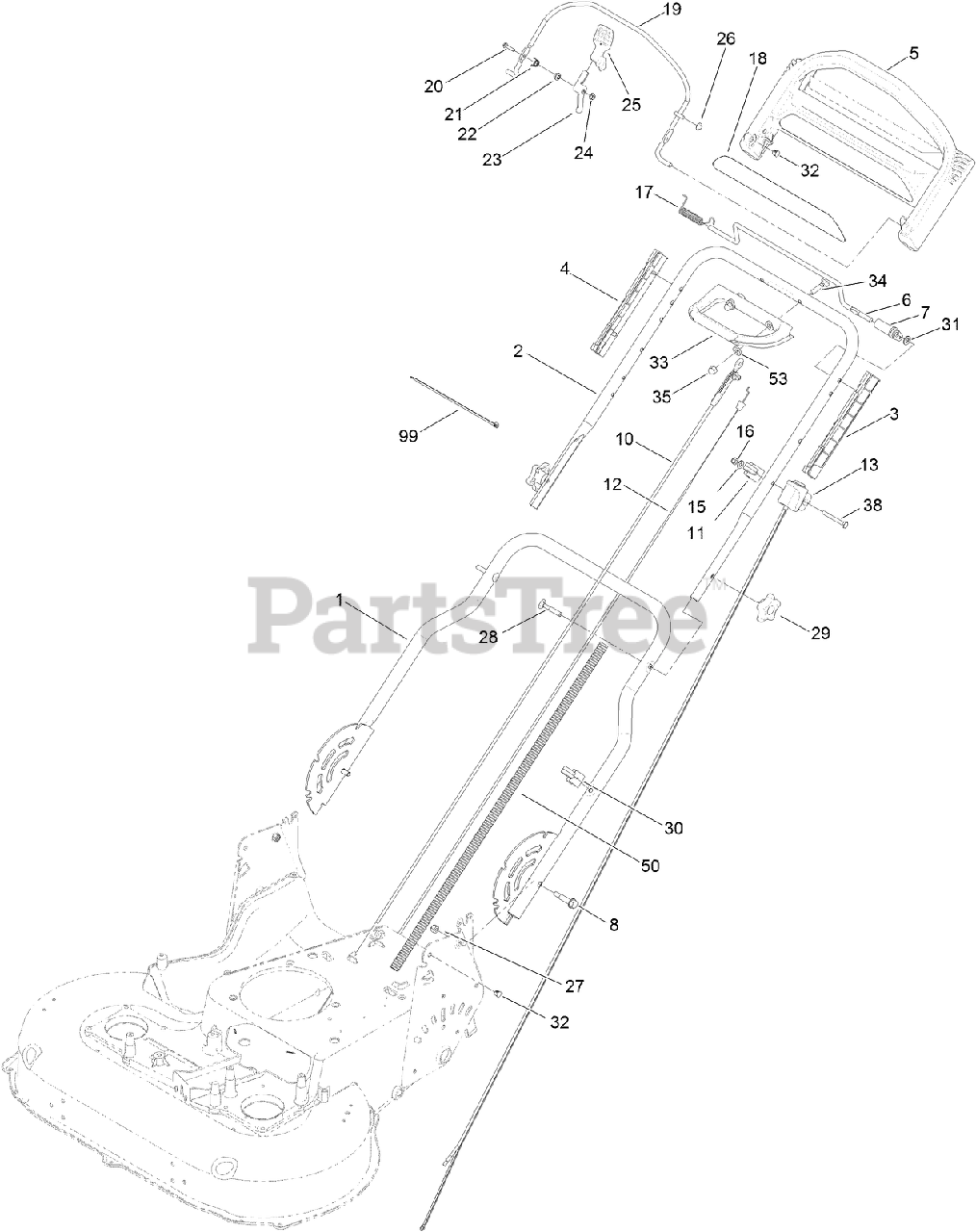

Handle Assembly Parts Diagram

  • Title

1

Toro 120-5204-05

HANDLE-LOWER

$110.99

$

In Stock, Qty 9

0

2

Toro 121-5783-05

HANDLE-UPPER

$195.99

$

Usually ships in 3-6 days

0

3

Toro 105-6842

GUIDE-LH

$9.49

$

In Stock, only 2 left!

0

4

Toro 105-6841

GUIDE-RH

$9.49

$

In Stock, only 2 left!

0

5

Toro 104-8678

HANDLE-CONTROL

$92.99

$

In Stock, Qty 10

0

6

Toro 99-1588

See Supercession: 136-7150
(Superseded to 136-7150)

$18.99

$

In Stock, only 2 left!

0

7

Toro 99-1589

LEVER-TRACTION

$8.49

$

In Stock, Qty 15

0

8

Toro 120-7025

BOLT-SHOULDER, HHF

$4.49

$

In Stock, Qty 10

0

10

Toro 120-6243

See Supercession: 133-8158
(Superseded to 133-8158)

$68.99

$

In Stock, Qty 20+

0

11

Toro 99-5239

See Supercession: 136-5864
(Superseded to 136-5864)

$3.49

$

In Stock, Qty 20+

0

12

Toro 127-6867

CABLE-TRACTION

$30.99

$

In Stock, Qty 20+

0

13

Toro 117-5975

SWITCH HOUSING ASM

$22.99

$

In Stock, Qty 20+

0

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

17

Toro 121-9118

See Supercession: 136-7166
(Superseded to 136-7166)

$3.99

$

In Stock, Qty 20+

0

18

Toro 120-3911

DECAL-HANDLE

$17.99

$

Usually ships in 3-6 days

0

19

Toro 108-3788-03

BAIL-BRAKE

$47.99

$

In Stock, only 2 left!

0

20

Toro 106-9169

SCREW-HWH

$8.99

$

In Stock, only 2 left!

0

21

Toro 107-7462

SPRING-TORSION

$9.49

$

In Stock, only 2 left!

0

22

Toro 107-7463

SPACER

$3.99

$

In Stock, only 2 left!

0

23

Toro 106-6802

LEVER
(Superseded to 138-3220)

$3.49

$

In Stock, Qty 6

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, only 4 left!

0

25

Toro 112-8884

KNOB

$7.49

$

In Stock, Qty 9

0

26

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

29

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

30

Toro 114-7988

GUIDE-CABLE

$3.49

$

In Stock, Qty 20+

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 104-9368

PLUG-DOME

$0.99

$

In Stock, Qty 9

0

33

Toro 120-7087

HANDLE-ASSIST, TRACTION

$22.99

$

In Stock, only 2 left!

0

34

Toro 130-2356

SCREW-HANDLE, LOCK

$1.99

$

Usually ships in 3-6 days

0

35

Toro 130-2341

NUT-ACORN

$1.49

$

Usually ships in 3-6 days

0

38

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

50

Toro 121-5801

CONDUIT-CONVOLUTED

$5.49

$

Usually ships in 3-6 days

0

53

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

99

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0
