21-08K804 (308-8) - Toro Lawn Tractor (1988) Mechanical Transmission-8-Speed Parts Diagram

Lawn Tractor

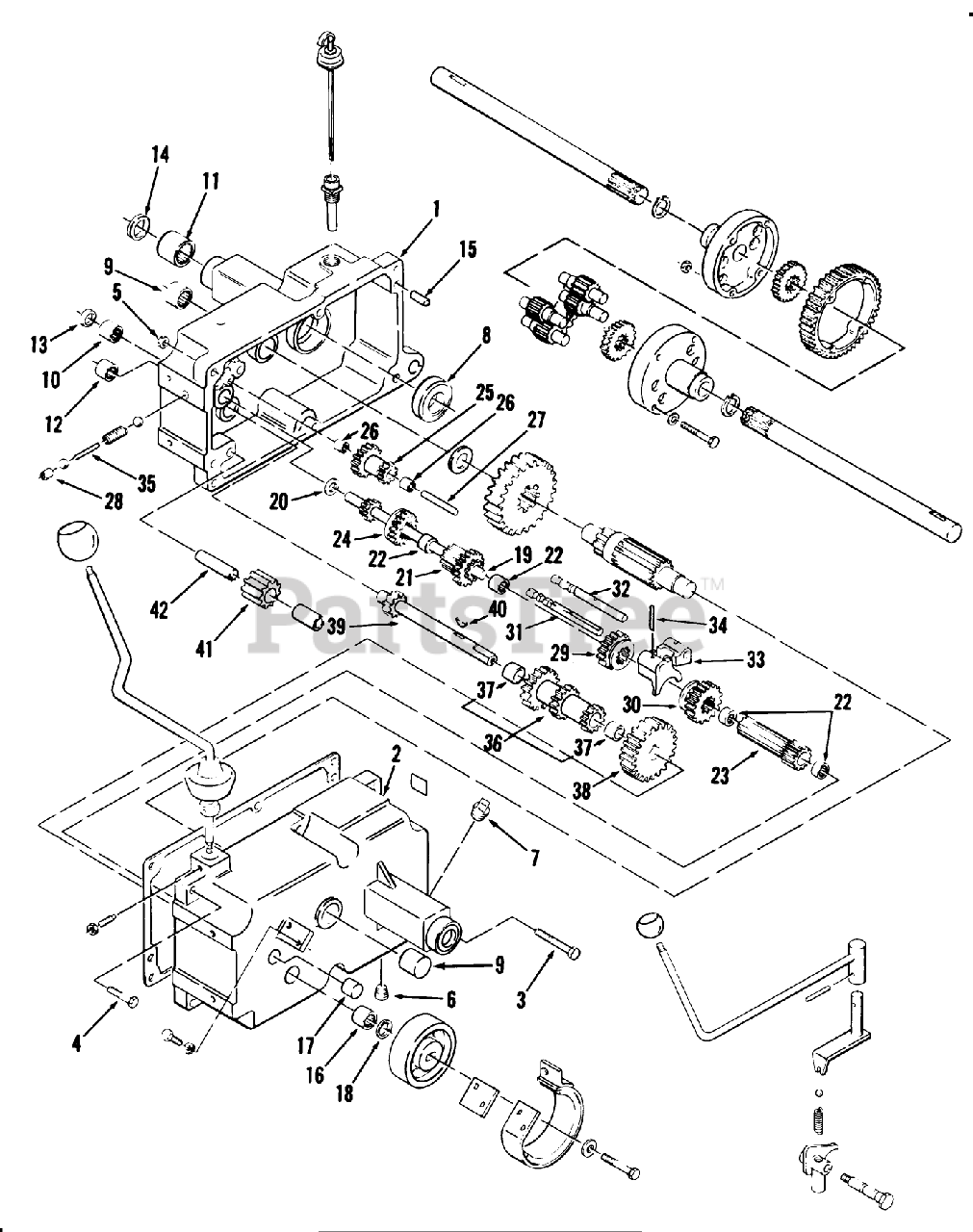

Mechanical Transmission-8-Speed Parts Diagram

  • Title

Toro 110996

REPAIR AS NEEDED

$

$

Not available

Toro 110995

See Supercession: 94-6671
(Superseded to 94-6671)

$7684.99

$

Usually ships in 3-6 days

0

1

Toro 111204

CASE TRANS RH

$1759.99

$

Usually ships in 3-6 days

0

Toro 114678

Case-Trans RH 300-Series Only Note: this case half has recess in axle housing for oil seal

$

$

Currently unavailable

Toro 111200

See Supercession: 111200-01
(Superseded to 111200-01)

$

$

Not available

Toro 114680

Case-Trans RH 400-Series Only Note: this case half has recess in axle housing for oil seal

$

$

Currently unavailable

2

Toro 111203

DISCONTINUED

$

$

Not available

Toro 114679

Case-Trans LH 300-Series Only Note: this case half has recess in axle housing for oil seal

$

$

Currently unavailable

Toro 111198

See Supercession: 95-5143-01
(Superseded to 95-5143-01)

$1285.99

$

Usually ships in 3-6 days

0

Toro 114681

Case-Trans LH 400-Series Only Note: this case half has recess in axle housing for oil seal

$

$

Currently unavailable

3

Toro 908043

See Supercession: 323-15
(Superseded to 323-15)

$2.49

$

In Stock, Qty 20+

0

4

Toro 908038

See Supercession: 323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

5

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

6

Toro 943460

See Supercession: 285-22
(Superseded to 285-22)

$

$

Not available

7

Toro 943420

See Supercession: 281-2
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0

8

Toro 111199

BEARING-BALL

$143.99

$

In Stock, only 2 left!

0

9

Toro 1532

BEARING-NEEDLE

$65.99

$

In Stock, only 2 left!

0

10

Toro 1542

BEARING-NEEDLE

$47.99

$

In Stock, only 2 left!

0

11

Toro 1528

BEARING-NEEDLE

$67.99

$

Usually ships in 3-6 days

0

Toro 9416

BEARING

$

$

Not available

12

Toro 1529

BEARING-NEEDLE

$56.99

$

Usually ships in 3-6 days

0

13

Toro 100442

SEAL-OIL

$8.99

$

In Stock, only 1 left!

0

14

Toro 100863

OIL SEAL

$19.99

$

In Stock, only 4 left!

0

Toro 114677

See Supercession: 100863
(Superseded to 100863)

$19.99

$

In Stock, only 4 left!

0

Toro 100443

SEAL-OIL

$16.99

$

In Stock, Qty 9

0

Toro 6449

SEAL-OIL

$29.99

$

In Stock, Qty 20+

0

15

Toro 3915

PIN-DOWEL

$8.99

$

Usually ships in 3-6 days

0

16

Toro 1523

BEARING-NEEDLE

$47.99

$

Usually ships in 3-6 days

0

17

Toro 1531

DUP PART SEE $BOOK

$

$

Not available

18

Toro 100441

SEAL-OIL

$10.99

$

In Stock, Qty 8

0

19

Toro 7201

SHAFT-INPUT

$

$

Not available

20

Toro 7418

WASHER-THRUST

$8.49

$

In Stock, only 3 left!

0

21

Toro 7204

GEAR

$

$

Not available

22

Toro 1518

BEARING-NEEDLE

$34.99

$

Usually ships in 3-6 days

0

23

Toro 5175

GEAR

$

$

Not available

24

Toro 7205

GEAR-SLIDING

$

$

Not available

25

Toro 7206

See Supercession: 100-1338
(Superseded to 100-1338)

$349.99

$

Usually ships in 3-6 days

0

26

Toro 7207

BEARING-NEEDLE

$40.99

$

Usually ships in 3-6 days

0

27

Toro 7208

GEAR-SHAFT REDUCTION

$11.99

$

Usually ships in 3-6 days

0

28

Toro 1243

CUP-PLUG

$6.49

$

In Stock, Qty 5

0

29

Toro 5173

GEAR-HI AND 2ND

$165.99

$

Usually ships in 3-6 days

0

30

Toro 5174

GEAR-LOW AND REVERSE

$

$

Not available

31

Toro 5615

RAIL-SHIFT

$134.99

$

Usually ships in 3-6 days

0

32

Toro 5616

RAIL-REAR SHIFT

$103.99

$

Usually ships in 3-6 days

0

33

Toro 3503

FORK-SHIFT

$151.99

$

Usually ships in 3-6 days

0

34

Toro 933156

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

35

Toro 5614

PIN-SHIFT

$

$

Not available

36

Toro 7269

GEAR-CLUSTER

$

$

Not available

37

Toro 1504

BUSHING-BRONZE

$54.99

$

Usually ships in 3-6 days

0

38

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

39

Toro 9840

See Supercession: 704156
(Superseded to 704156)

$

$

Not available

40

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

41

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$182.99

$

Usually ships in 3-6 days

0

42

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available
