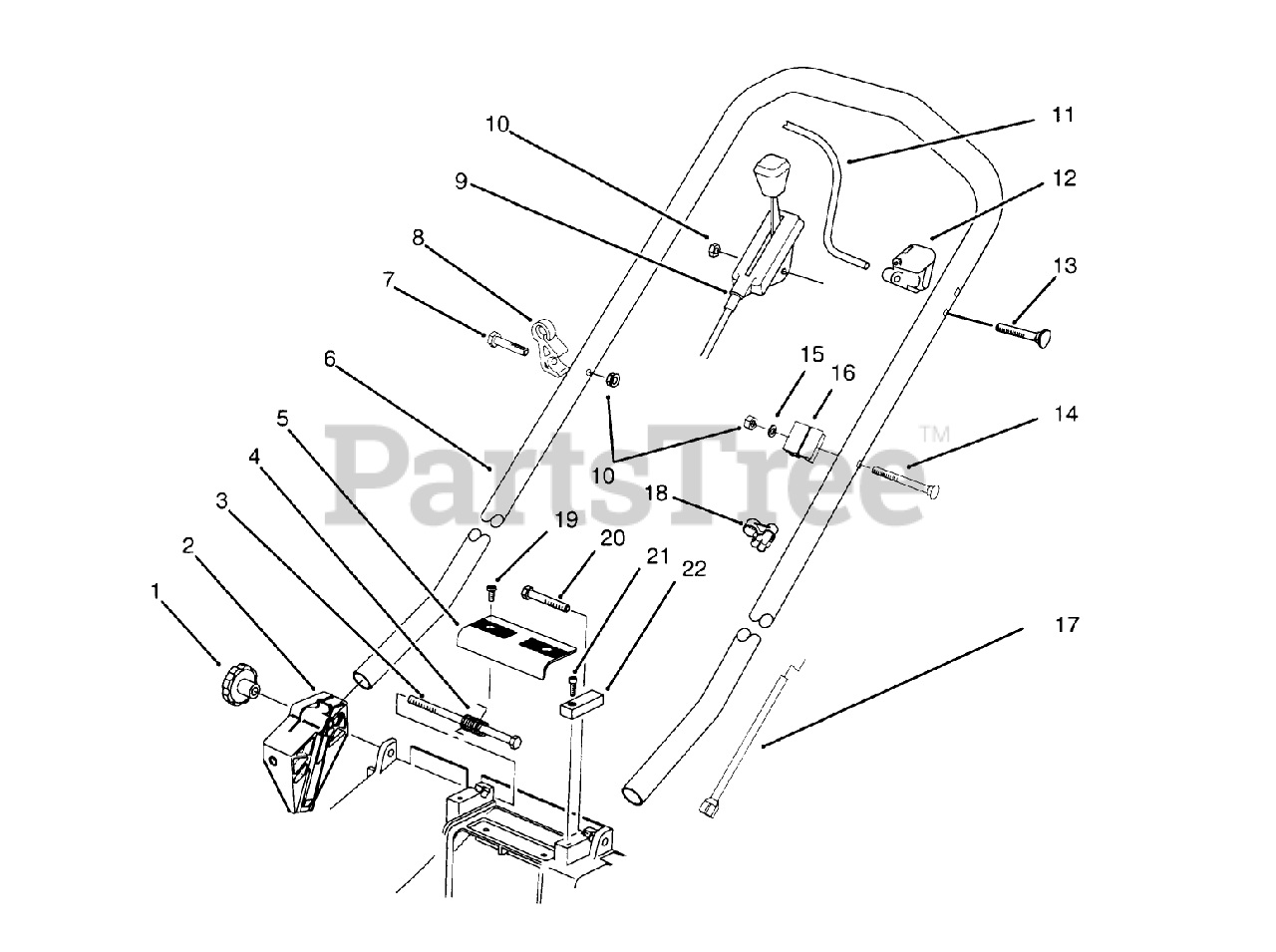

21010 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Handle Assembly Parts Diagram

Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Toro 19-4050

KNOB

$18.99

$

In Stock, Qty 5

0

2

Toro 93-4082

Mount-Handle R.H.

$

$

Not available

Toro 93-4083

Mount-Handle L.H
(Superseded to 99-1705)

Note: Not illustrated

$

$

Not available

3

Toro 93-4058

BOLT-LONG

$16.99

$

Usually ships in 3-6 days

0

4

Toro 93-4057

SPRING-DOOR

$

$

Not available

5

Toro 71-7860

GRIP-UPPER

$

$

Not available

6

Toro 93-4089

HANDLE

$

$

Not available

7

Toro 321-52

DISCONTINUED

$

$

Not available

8

Toro 93-3772

GUIDE - ROPE

$

$

Not available

9

Toro 93-1118

CONTROL - THROTTLE

$138.99

$

Usually ships in 3-6 days

0

10

Toro 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

11

Toro 93-0336

DISCONTINUED

$

$

Not available

12

Toro 93-5412

Stop-Pivot

$

$

Currently unavailable

13

Toro 92-2266

SCREW-HANDLE

$6.99

$

Usually ships in 3-6 days

0

14

Toro 92-2270

SCREW-HANDLE

$9.49

$

In Stock, only 2 left!

0

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

17

Toro 93-1116

CABLE - BRAKE

$77.99

$

Usually ships in 3-6 days

0

18

Toro 93-4084

DISCONTINUED

$

$

Not available

19

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 13

0

20

Toro 93-4060

DISCONTINUED

$

$

Not available

21

Toro 93-4094

DISCONTINUED

$

$

Not available

22

Toro 93-4056

DISCONTINUED

$

$

Not available
