21200 - Toro 30" TimeMaster Walk-Behind Mower (SN: 413000000 - 414514168) Engine and Belt Assembly Parts Diagram

30" TimeMaster Walk-Behind Mower

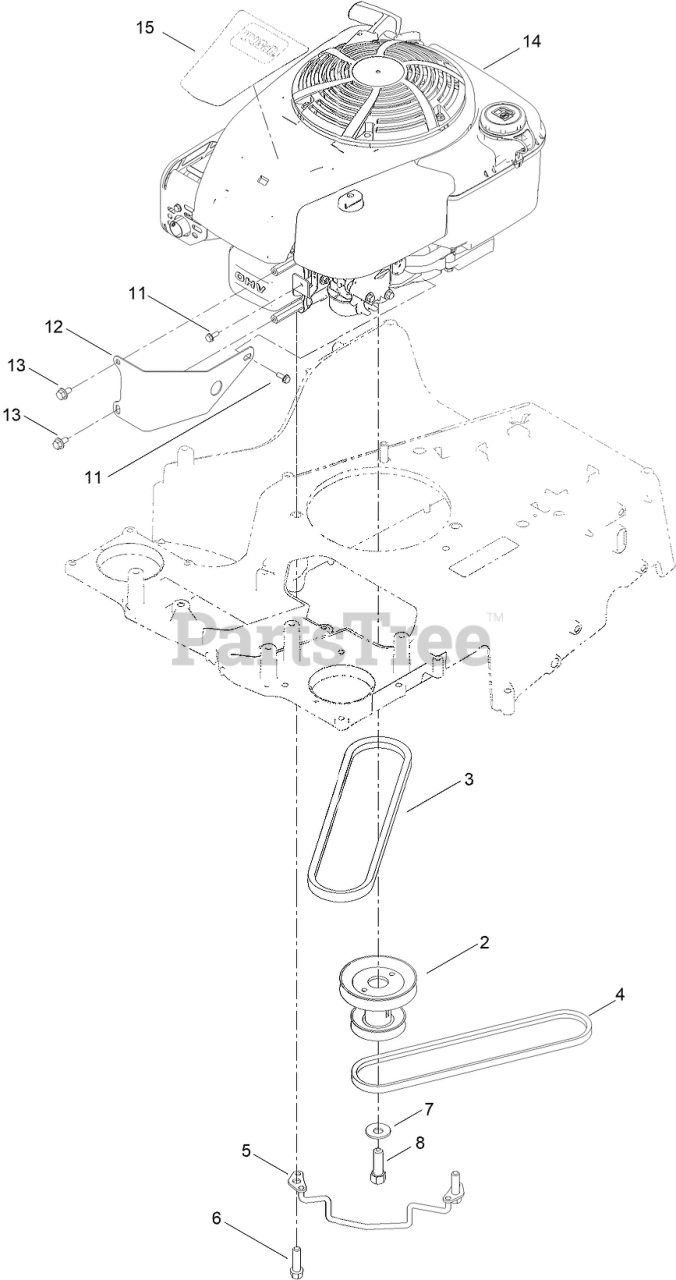

Engine and Belt Assembly Parts Diagram

  • Title

2

Toro 137-9176

PULLEY-ENGINE

$66.99

$

In Stock, only 2 left!

0

3

Toro 121-5765

V-BELT

$21.99

$

In Stock, Qty 20+

0

4

Toro 120-9470

V-BELT, TRACTION

$15.99

$

In Stock, Qty 20+

0

5

Toro 139-1734

GUIDE-BELT, WA

$26.99

$

In Stock, Qty 13

0

6

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

11

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

12

Toro 131-0889-03

GUARD-ENGINE

$11.99

$

In Stock, only 3 left!

0

13

Toro 126-2713

SCREW-HHF

$5.99

$

In Stock, only 4 left!

0

14

ENGINE-BRIGGS,14D9350111F1

Note: Not serviced separately

$

$

Not available

14

ENGINE-BRIGGS,14D9350111F1

Note: This is a Briggs & Stratton part. Please use the Briggs & Stratton catalog.

$

$

Not available

15

Toro 133-8113

DECAL-SHROUD

$6.99

$

In Stock, only 2 left!

0
