21468 - Toro 22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 413000000 - 999999999) Lower Shroud Assembly Parts Diagram

22" Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

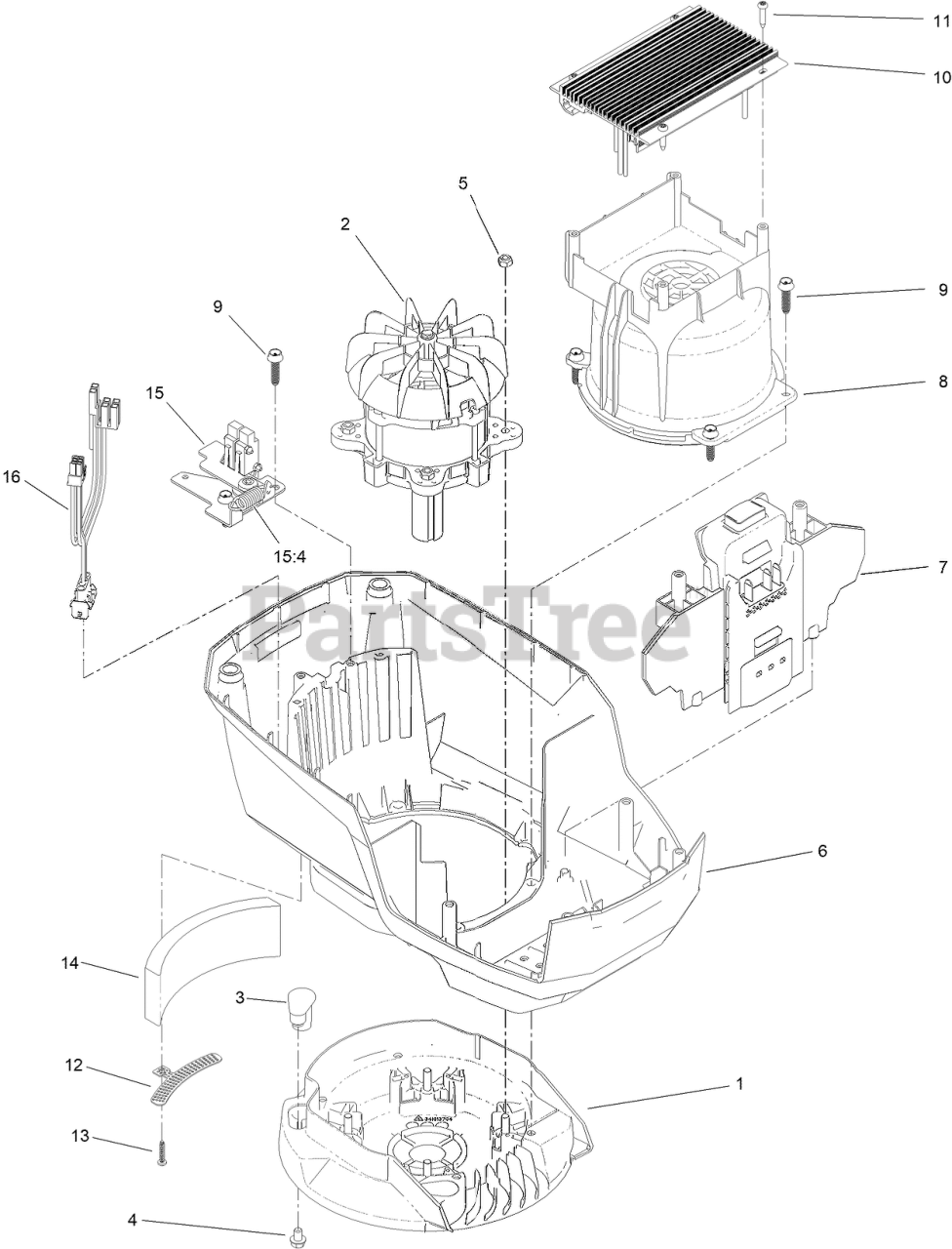

Lower Shroud Assembly Parts Diagram

  • Title

1

Toro 139-6628

BASE-MOUNT, MOTOR

$39.99

$

Usually ships in 3-6 days

0

2

Toro 140-4119

MOTOR-2KW

$284.99

$

Usually ships in 3-6 days

0

3

Toro 131-9732

INSERT-MOUNT, Motor

$14.99

$

Usually ships in 3-6 days

0

4

Toro 137-4795

SCREW

$1.49

$

In Stock, Qty 20+

0

5

Toro 115-7373

NUT-LOCK

$0.99

$

In Stock, only 1 left!

0

6

Toro 139-6631

SHROUD-LOWER

$49.99

$

Usually ships in 3-6 days

0

7

Toro 139-6632

BATTERY RECIEVER ASM

$41.99

$

Usually ships in 3-6 days

0

8

Toro 139-6633

SHROUD-MOTOR

$29.99

$

Usually ships in 3-6 days

0

9

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0

10

Toro 140-4164

CONTROLLER-MOTOR

$337.99

$

Usually ships in 3-6 days

0

11

Toro 139-6642

SCREW

$0.99

$

Usually ships in 3-6 days

0

12

Toro 139-6635

BRACKET-FOAM

$5.49

$

Usually ships in 3-6 days

0

13

Toro 138-3273

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 139-6636

FOAM

$3.99

$

Usually ships in 3-6 days

0

15

Toro 133-1918

BAIL SWITCH ASM

$54.99

$

Usually ships in 3-6 days

0

15:4

Toro 145-5800

SPRING-EXTENSION

$7.49

$

Usually ships in 3-6 days

0

16

Toro 139-6637

HARNESS-WIRE

$23.99

$

Usually ships in 3-6 days

0
