21625 - Toro 21" 60V Walk-Behind Mower (SN: 400000000 - 999999999) Power Assembly No. 161-1131 Parts Diagram

21" 60V Walk-Behind Mower

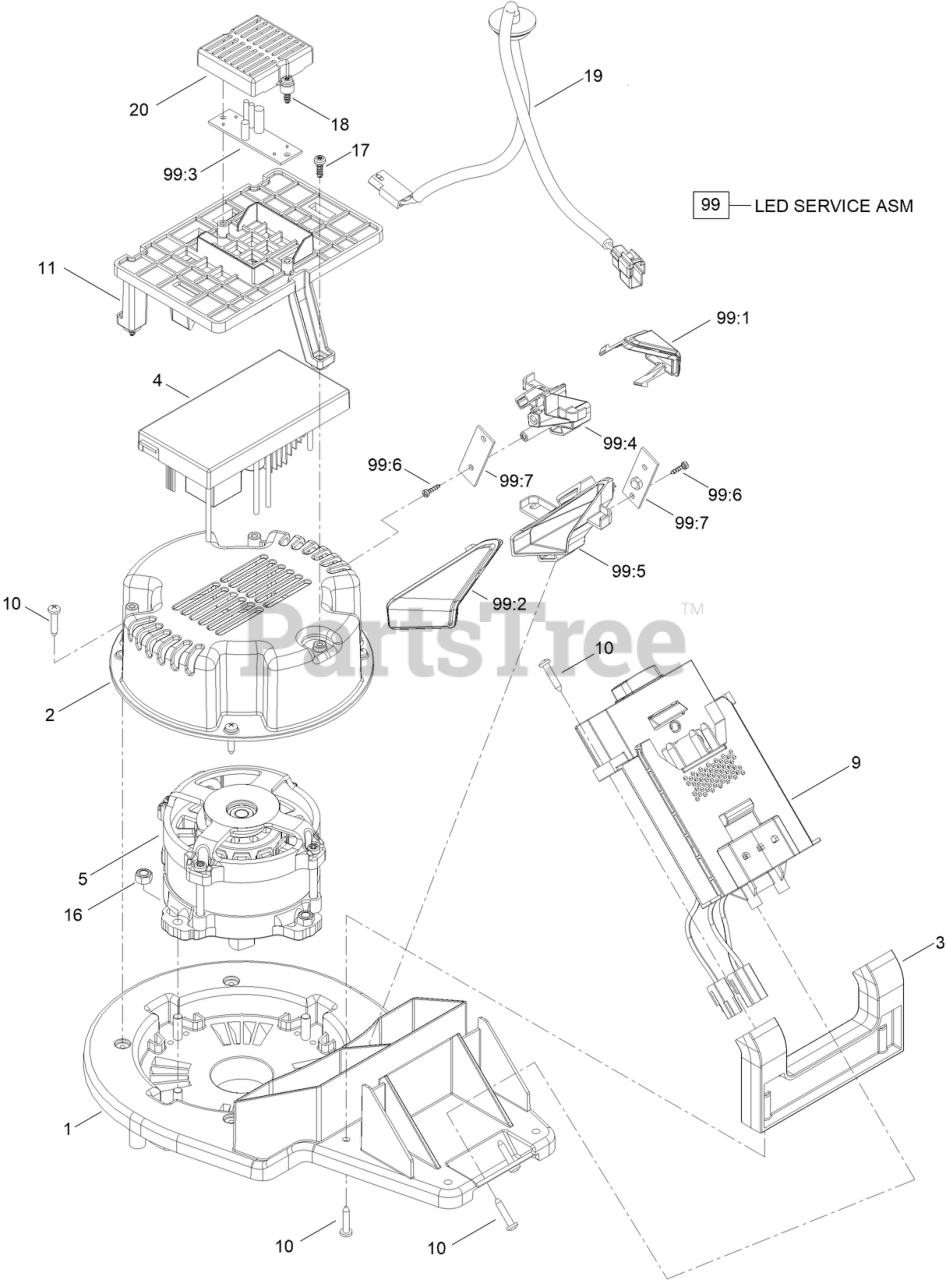

Power Assembly No. 161-1131 Parts Diagram

  • Title

1

Toro 144-6511

ASM-MOUNT, MOTOR

$35.99

$

Usually ships in 3-6 days

0

2

Toro 144-6487

COVER-MOTOR

$23.99

$

Usually ships in 3-6 days

0

3

Toro 144-6489

SUPPORT-RECEIVER

$10.99

$

Usually ships in 3-6 days

0

4

Toro 161-1135

CONTROLLER-MOTOR, EPP LED

$160.99

$

Usually ships in 3-6 days

0

5

Toro 144-6491

MOTOR-1KW, 60V

$403.99

$

Usually ships in 3-6 days

0

9

Toro 137-9404

BATTERY TRACK ASM

$43.77

$

Usually ships in 5-8 days

0

10

Toro 145-5628

SCREW-PPH, ST4.2x20

$

$

Currently unavailable

11

Toro 147-4215

BRKT-CONTROLLER

$11.99

$

Usually ships in 3-6 days

0

16

Toro 145-5617

NUT-HEX, M6

$2.99

$

Usually ships in 3-6 days

0

17

Toro 145-5627

SCREW-TPH, ST4.2x12

$

$

Currently unavailable

18

Toro 147-4238

SCREW-TPH, ST4.2X16

$

$

Currently unavailable

19

Toro 145-5698

ASM-WIRE, COBRA SP

$15.99

$

Usually ships in 3-6 days

0

20

Toro 147-4211

COVER-DRIVER, LED

$8.49

$

Usually ships in 3-6 days

0

99

Toro 147-4245

LED Service ASM

$58.99

$

Usually ships in 3-6 days

0

99:1

Toro 144-6492

LENS-LED, RIGHT

$

$

Currently unavailable

99:2

Toro 144-6493

LENS-LED, LEFT

$

$

Currently unavailable

99:3

Toro 144-6494

BOARD-LED, CONTROL

$

$

Currently unavailable

99:4

Toro 144-6548

HOUSING-LED, RIGHT

$

$

Currently unavailable

99:5

Toro 144-6549

HOUSING-LED, LEFT

$

$

Currently unavailable

99:6

Toro 145-5608

SCREW-PPH, ST3x12

$

$

Currently unavailable

99:7

Toro 145-5607

LED-BOARD

$

$

Currently unavailable
