21848 - Toro 48cm 60V Super Recycler Walk-Behind Mower (SN: 418000000 - 999999999) Traction Drive Assembly Parts Diagram

48cm 60V Super Recycler Walk-Behind Mower

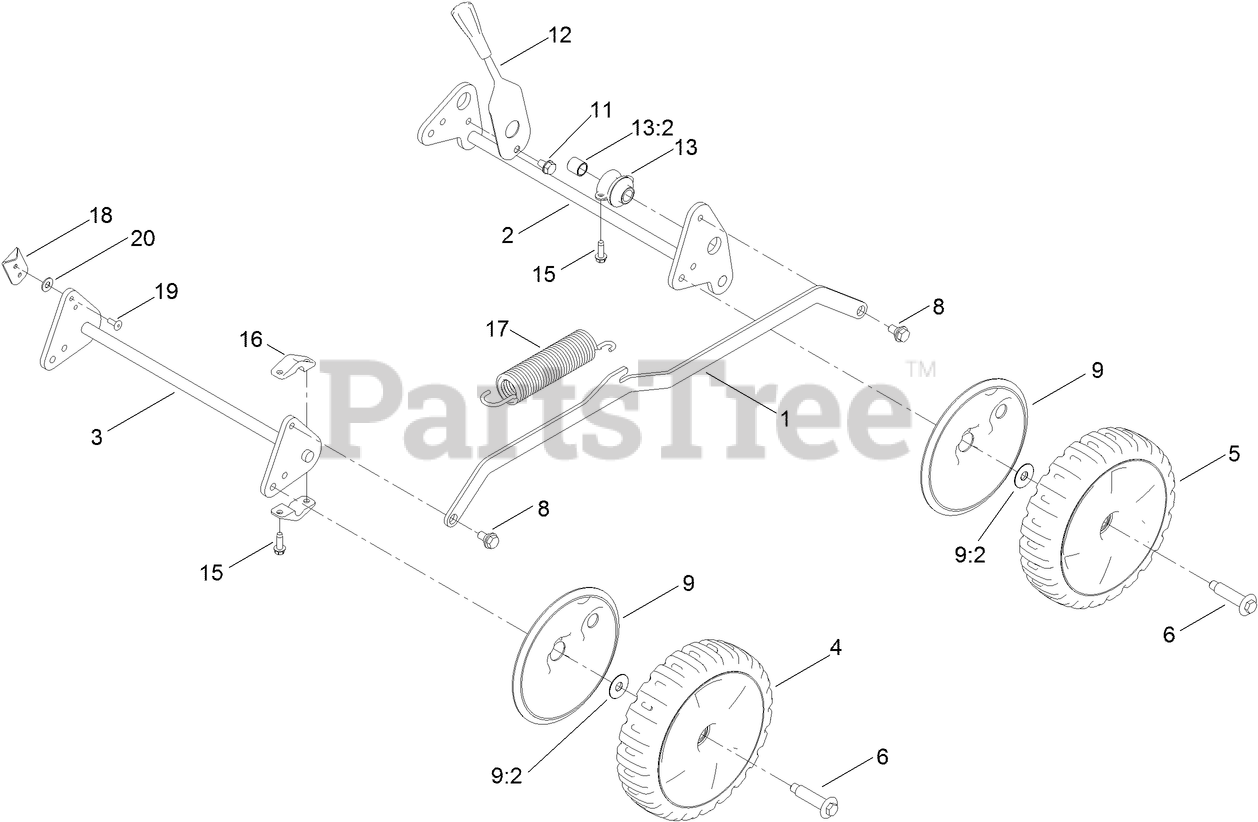

Traction Drive Assembly Parts Diagram

  • Title

1

Toro 117-4066-01

BAR-CROSS, HOC

$56.99

$

Usually ships in 3-6 days

0

2

Toro 120-0196-03

BAR-PIVOT, REAR

$84.99

$

Usually ships in 3-6 days

0

3

Toro 120-3902-03

BAR-PIVOT, FRONT

$84.99

$

Usually ships in 3-6 days

0

4

Toro 117-4082

8 INCH WHEEL ASM

$50.99

$

Usually ships in 3-6 days

0

5

Toro 117-4083

8 INCH WHEEL AND GEAR ASM

$60.99

$

In Stock, Qty 16

0

6

Toro 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

8

Toro 27-0411

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

9

Toro 117-4088

WHEEL COVER ASM

$12.99

$

Usually ships in 3-6 days

0

9:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

11

Toro 139-1710

SCREW-THD CUT, HWH

$2.49

$

Usually ships in 3-6 days

0

12

Toro 117-4084

HANDLE-LIFT ASSIST

$54.99

$

Usually ships in 3-6 days

0

13

Toro 119-2278

BUSHING ASM

$28.99

$

Usually ships in 3-6 days

0

13:2

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

15

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

16

Toro 100-1500

MOUNT-AXLE, FRONT

$7.49

$

Usually ships in 3-6 days

0

17

Toro 119-2265

SPRING-EXTENSION

$29.99

$

Usually ships in 3-6 days

0

18

Toro 138-3231

INDICATOR-HOC

$4.99

$

Usually ships in 3-6 days

0

19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0
