21876 - Toro 76cm eTimeMaster 60V Walk-Behind Mower (SN: 414900000 - 999999999) Motor Module Assembly No. 145-4010 Parts Diagram

76cm eTimeMaster 60V Walk-Behind Mower

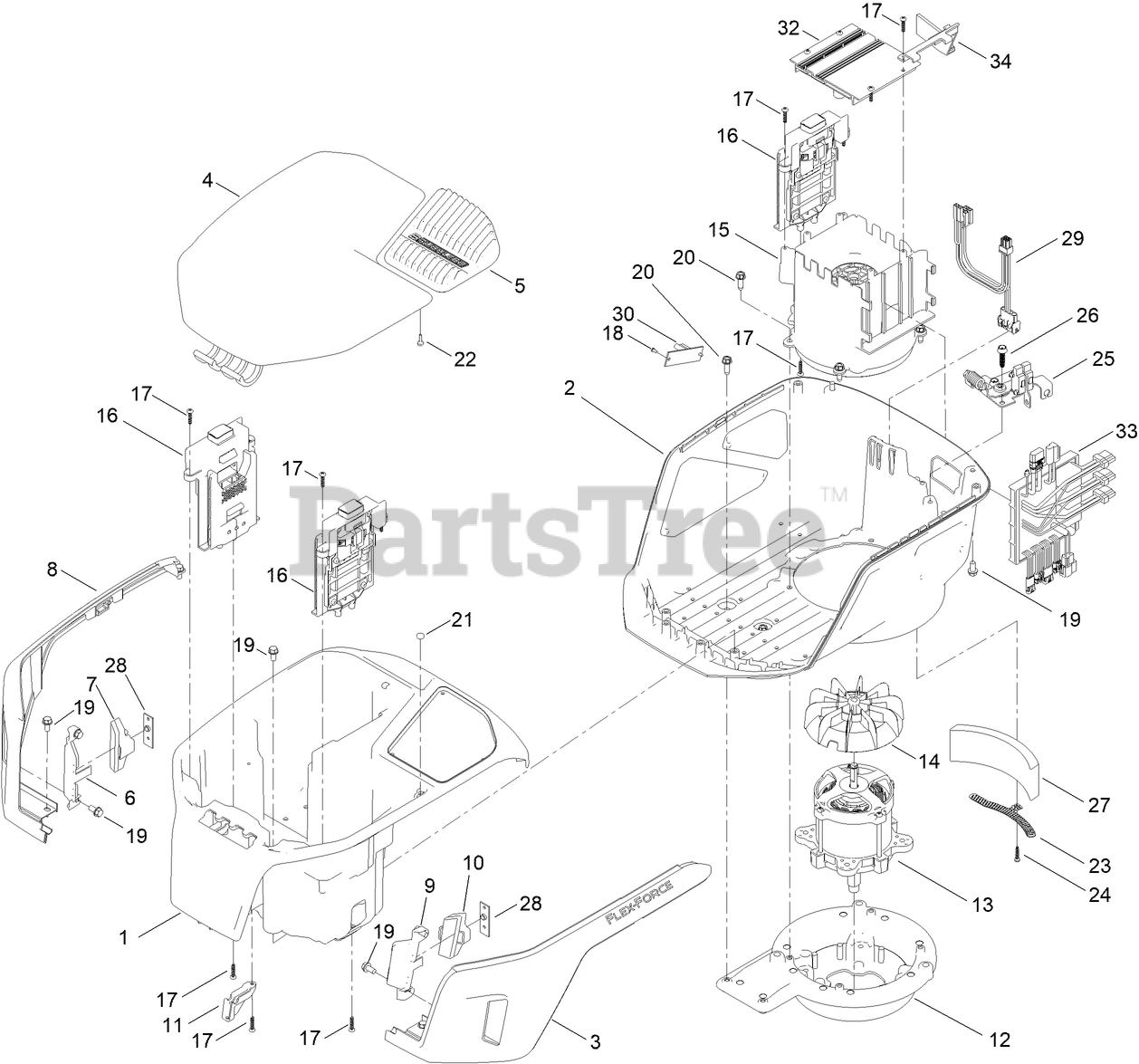

Motor Module Assembly No. 145-4010 Parts Diagram

  • Title

1

Toro 145-5882

BUCKET-BATTERY

$34.99

$

Usually ships in 3-6 days

0

2

Toro 145-5883

SHROUD-LOWER

$

$

Currently unavailable

3

Toro 145-5884

TRIM-SHROUD, LH

$14.99

$

Usually ships in 3-6 days

0

4

Toro 145-5885

LID-MOTOR

$27.99

$

Usually ships in 3-6 days

0

5

Toro 145-5886

HEATSINK-CONTROLLER

$

$

Currently unavailable

6

Toro 145-5887

LENS-LED, RH

$5.99

$

Usually ships in 3-6 days

0

7

Toro 145-5888

REFLECTOR-LED, RH

$

$

Currently unavailable

8

Toro 145-5889

TRIM-SHROUD, RH

$14.99

$

Usually ships in 3-6 days

0

9

Toro 145-5890

LENS-LED, LH

$5.99

$

Usually ships in 3-6 days

0

10

Toro 145-5891

REFLECTOR-LED, LH

$8.49

$

Usually ships in 3-6 days

0

11

Toro 145-5892

BRACKET-SUPPORT, LID

$

$

Currently unavailable

12

Toro 145-5895

MOUNT-BASE, MOTOR

$

$

Currently unavailable

13

Toro 145-4048

MOTOR-60V

$392.99

$

Usually ships in 3-6 days

0

14

Toro 145-5896

FAN-MOTOR

$17.99

$

Usually ships in 3-6 days

0

15

Toro 145-5897

SHROUD-MOTOR

$

$

Currently unavailable

16

Toro 147-0403

RECEIVER-BATTERY

$41.99

$

Usually ships in 3-6 days

0

17

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

18

Toro 112-8658

SCREW-PPH

$

$

Not available

19

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

20

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 114-5896

MAGNET

$7.49

$

In Stock, only 1 left!

0

22

Toro 95-4234

SCREW-PPH

$2.49

$

In Stock, only 1 left!

0

23

Toro 147-0449

BRACKET-FOAM

$

$

Currently unavailable

24

Toro 138-3273

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 133-1918

BAIL SWITCH ASM

$54.99

$

Usually ships in 3-6 days

0

26

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0

27

Toro 145-3972

FOAM

$

$

Currently unavailable

28

Toro 144-6448

BOARD-LIGHT, LED

$

$

Currently unavailable

29

Toro 139-6637

HARNESS-WIRE

$23.99

$

Usually ships in 3-6 days

0

30

Toro 145-1530

DRIVER-LED

$

$

Currently unavailable

32

Toro 147-0451

CONTROLLER-PMU

$216.99

$

Usually ships in 3-6 days

0

33

Toro 147-0452

CONTROLLER-MOTOR

$213.99

$

Usually ships in 3-6 days

0

34

Toro 161-3110

BRACKET-PMU

$

$

Currently unavailable
