22-11BE01 (211-A) - Toro Yard Tractor (1985) Frame, Sheet Metal And Covers Parts Diagram

Yard Tractor

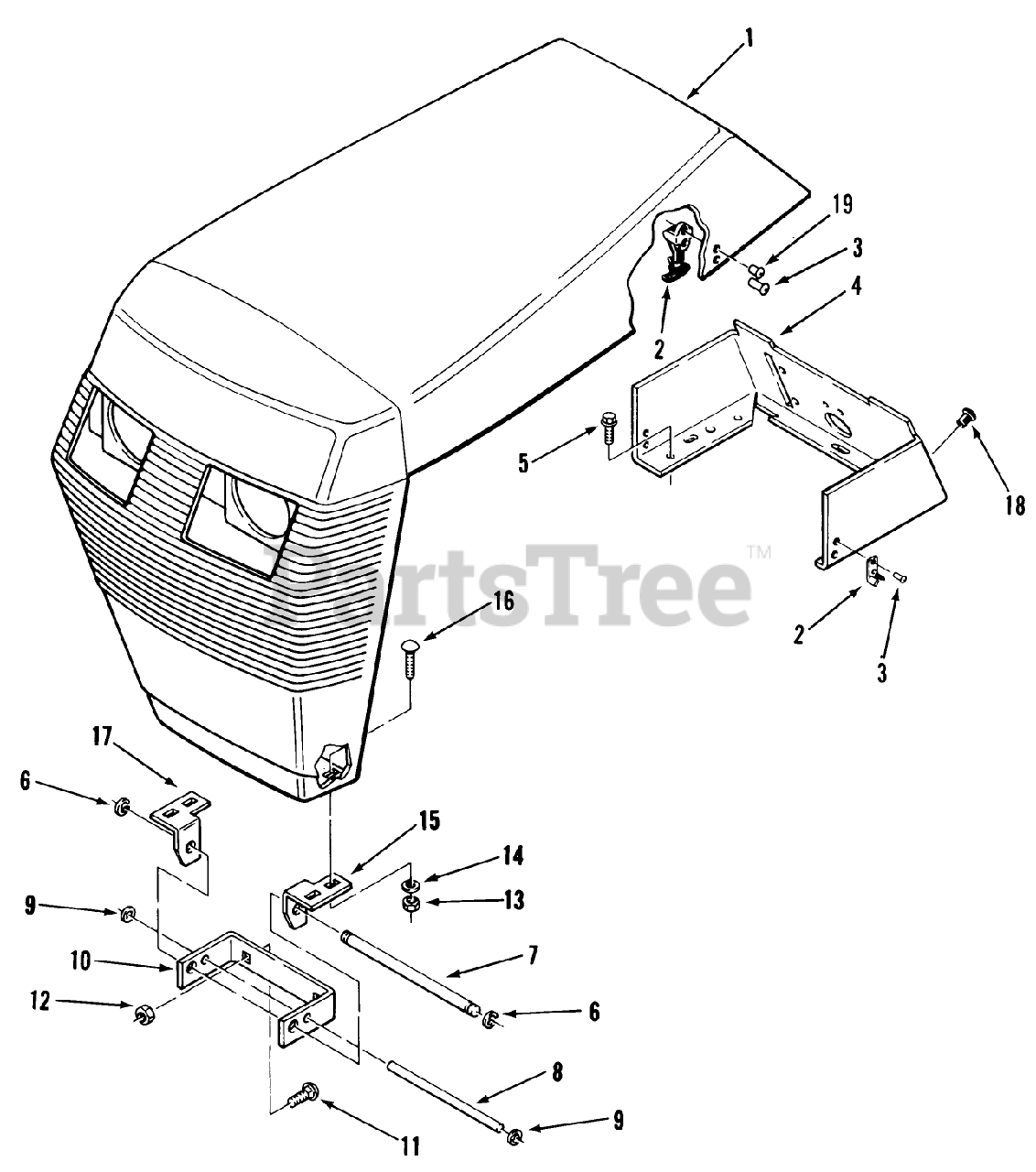

Frame, Sheet Metal And Covers Parts Diagram

  • Title

1

Toro 110134

DISCONTINUED
(Superseded to 114219)

$

$

Not available

Toro 110135

See Supercession: 114218
(Superseded to 114218)

$

$

Not available

2

Toro 106825

ASSY-FLEX DRAW LATCH

$58.99

$

In Stock, only 2 left!

0

3

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

4

Toro 110129B

DISCONTINUED

$

$

Not available

5

Toro 926694

SCREW

$

$

Not available

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 13

0

7

Toro 108458

ROD-GRILL PIVOT

$

$

Not available

8

Toro 108243

ROD-HOOD STOP

$

$

Not available

9

Toro 5466

DISCONTINUED

$

$

Not available

10

Toro 109194

DISCONTINUED

$

$

Not available

11

Toro 900038

See Supercession: 3230-2
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 20+

0

12

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 20+

0

13

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 9

0

14

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

15

Toro 109146

See Supercession: 109146-01
(Superseded to 109146-01)

$

$

Not available

16

Toro 900015

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

17

Toro 109145

See Supercession: 109145-01
(Superseded to 109145-01)

$38.99

$

Usually ships in 3-6 days

0

18

Toro 938052

NYLON PLUG

$0.99

$

Usually ships in 3-6 days

0

19

Toro 923784

See Supercession: 3290-54
(Superseded to 3290-54)

$0.99

$

Usually ships in 3-6 days

0
