22-13KE01 (252-H) - Toro Yard Tractor (1988) Kawasaki Fc540v Type As-08 Engine Parts Diagram

Yard Tractor

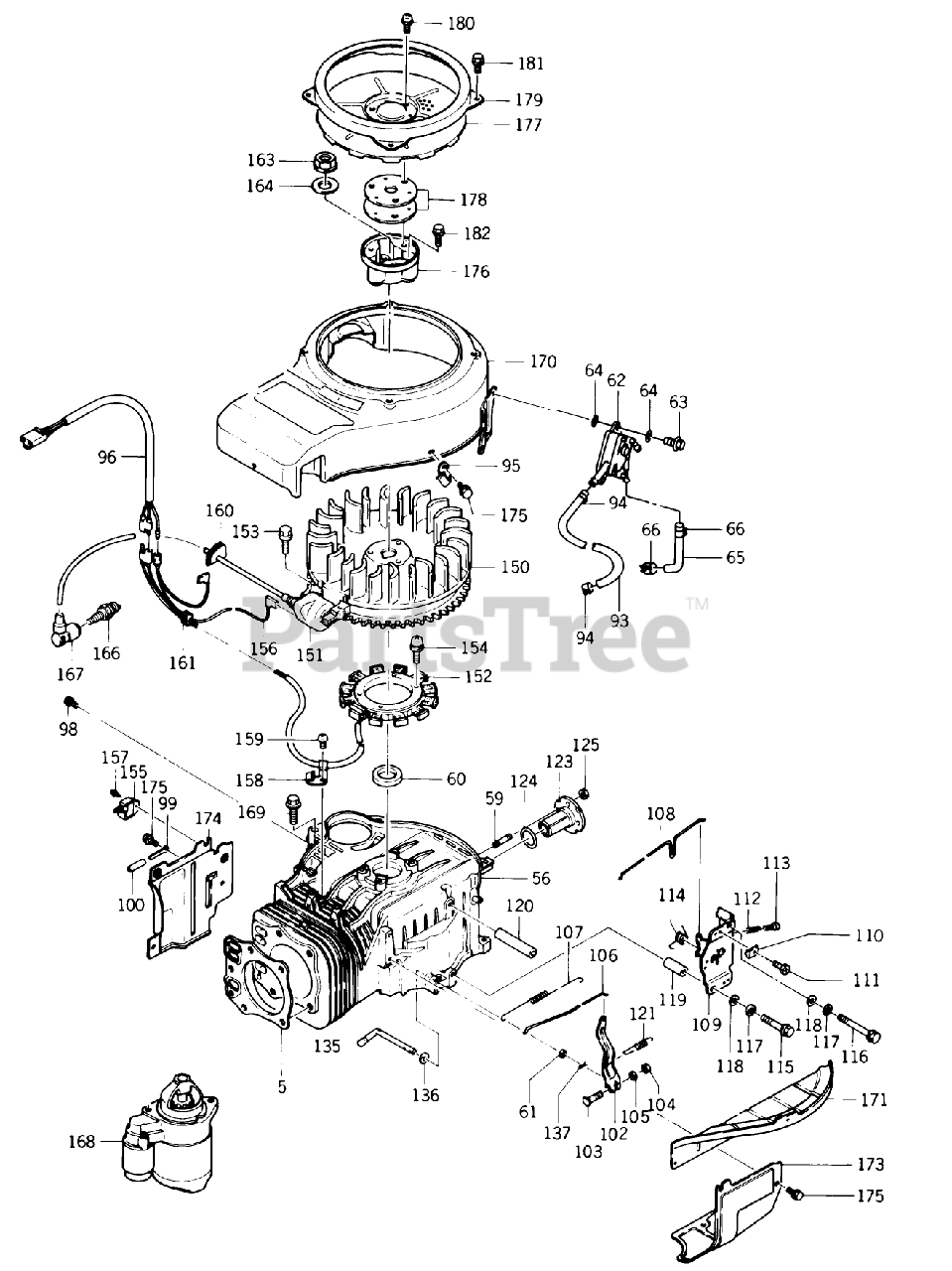

Kawasaki Fc540v Type As-08 Engine Parts Diagram

  • Title

5

Toro KW10479

DISCONTINUED

$

$

Not available

56

Toro KW10595

CASE-CRANK

$2852.99

$

Usually ships in 3-6 days

0

59

Toro KW10193

DISCONTINUED

$

$

Not available

60

Toro KW10226

DISCONTINUED

$

$

Not available

61

Toro KW10227

SEAL-OIL, VC (6X10X2.5)

$

$

Not available

62

Toro KW10584

DISCONTINUED

$

$

Not available

63

Toro KW10288

See Supercession: 93-8566
(Superseded to 93-8566)

$

$

Not available

64

Toro KW10629

DISCONTINUED

$

$

Not available

65

Toro KW10672

DISCONTINUED

$

$

Not available

66

Toro KW10570

DISCONTINUED

$

$

Not available

93

Toro KW10611

DISCONTINUED

$

$

Not available

94

Toro KW10570

DISCONTINUED

$

$

Not available

95

Toro KW10665

DISCONTINUED

$

$

Not available

96

Toro KW10560

DISCONTINUED

$

$

Not available

98

Toro KW10029

BOLT-FLANGED

$0.99

$

Usually ships in 3-6 days

0

99

Toro KW10107

DISCONTINUED

$

$

Not available

100

Toro KW10564

DISCONTINUED

$

$

Not available

102

Toro KW10553

DISCONTINUED

$

$

Not available

103

Toro KW10189

See Supercession: 93-8606
(Superseded to 93-8606)

$

$

Not available

104

Toro KW10101

NUT 6MM

$

$

Not available

105

Toro KW10139

See Supercession: 93-8645
(Superseded to 93-8645)

$

$

Not available

106

Toro KW10544

DISCONTINUED

$

$

Not available

107

Toro KW10680

DISCONTINUED

$

$

Not available

108

Toro KW10543

DISCONTINUED

$

$

Not available

109

Toro KW10591

DISCONTINUED

$

$

Not available

110

Toro KW10221

DISCONTINUED

$

$

Not available

111

Toro KW10099

DISCONTINUED

$

$

Not available

112

Toro KW10113

DISCONTINUED

$

$

Not available

113

Toro KW10091

DISCONTINUED

$

$

Not available

114

Toro KW10242

DISCONTINUED

$

$

Not available

115

Toro KW10497

DISCONTINUED

$

$

Not available

116

Toro KW10498

DISCONTINUED

$

$

Not available

117

Toro KW10142

DISCONTINUED

$

$

Not available

118

Toro KW10102

DISCONTINUED

$

$

Not available

119

Toro KW10217

DISCONTINUED

$

$

Not available

120

Toro KW10661

DISCONTINUED

$

$

Not available

121

Toro KW10681

DISCONTINUED

$

$

Not available

123

Toro KW10049

DISCONTINUED

$

$

Not available

124

Toro KW10229

DISCONTINUED

$

$

Not available

125

Toro KW10195

See Supercession: 119-5954
(Superseded to 119-5954)

$11.99

$

In Stock, only 1 left!

0

135

Toro KW10577

DISCONTINUED

$

$

Not available

136

Toro KW10137

DISCONTINUED

$

$

Not available

137

Toro KW10167

See Supercession: 93-8607
(Superseded to 93-8607)

$

$

Not available

150

Toro KW10554

DISCONTINUED

$

$

Not available

151

Toro KW10551

DISCONTINUED

$

$

Not available

152

Toro KW10604

DISCONTINUED

$

$

Not available

153

Toro KW10028

DISCONTINUE

$

$

Not available

154

Toro KW10559

DISCONTINUED

$

$

Not available

155

Toro KW10085

DISCONTINUED

$

$

Not available

156

Toro KW10561

DISCONTINUED

$

$

Not available

157

Toro KW10558

DISCONTINUED

$

$

Not available

158

Toro KW10666

DISCONTINUED

$

$

Not available

159

Toro KW10567

DISCONTINUED

$

$

Not available

160

Toro KW10677

DISCONTINUED

$

$

Not available

161

Toro KW10233

DISCONTINUED

$

$

Not available

163

Toro KW10624

DISCONTINUED

$

$

Not available

164

Toro KW10627

DISCONTINUED

$

$

Not available

166

Toro KW10676

SPARK PLUG

$10.99

$

In Stock, Qty 20+

0

167

Toro KW10087

CAP-SPARKPLUG

$60.99

$

Usually ships in 3-6 days

0

168

Toro KW10552

DISCONTINUED
(Superseded to KW10744)

$

$

Not available

169

Toro KW10515

DISCONTINUED

$

$

Not available

170

Toro KW10607

DISCONTINUED

$

$

Not available

171

Toro KW10608

DISCONTINUED

$

$

Not available

173

Toro KW10589

DISCONTINUED

$

$

Not available

174

Toro KW10590

DISCONTINUED

$

$

Not available

175

Toro KW10517

See Supercession: 93-8600
(Superseded to 93-8600)

$1.49

$

Usually ships in 3-6 days

0

176

Toro KW10478

DISCONTINUED

$

$

Not available

177

Toro KW10526

DISCONTINUED

$

$

Not available

178

Toro KW10202

DISCONTINUED

$

$

Not available

179

Toro KW10599

DISCONTINUED

$

$

Not available

180

Toro KW10107

DISCONTINUED

$

$

Not available

181

Toro KW10026

See Supercession: 93-8680
(Superseded to 93-8680)

$

$

Not available

182

Toro KW10513

BOLT (8 X 20)

$

$

Not available
