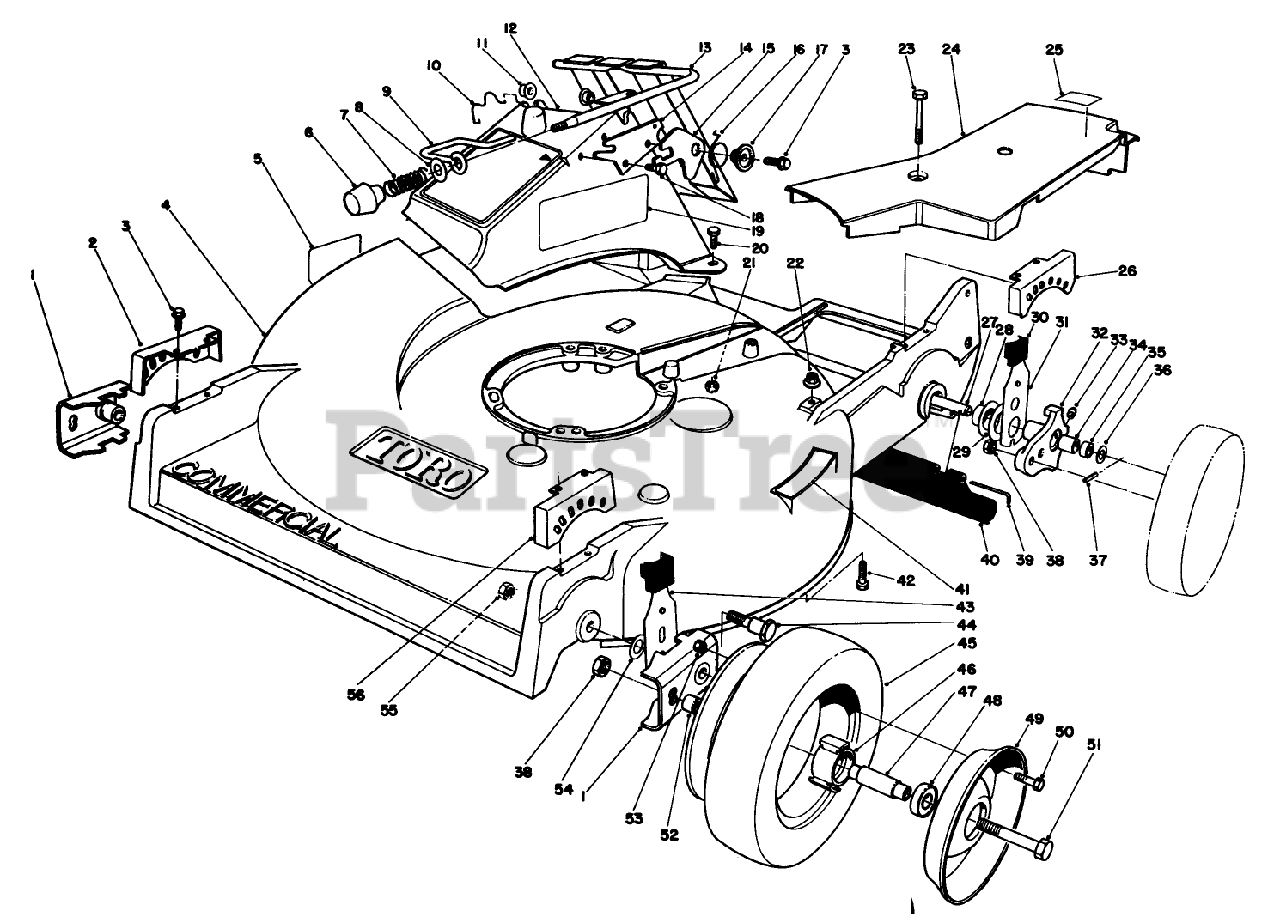

22015 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) Housing Assembly (model 22015) Parts Diagram

Walk-Behind Mower

Housing Assembly (model 22015) Parts Diagram

  • Title

1

Toro 49-9160

PIVOT ARM

$84.99

$

Usually ships in 3-6 days

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$30.99

$

In Stock, only 2 left!

0

3

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

4

Toro 11-7059

See Supercession: 11-7859
(Superseded to 11-7859)

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 5

0

6

Toro 233-37

KNOB

$37.99

$

Usually ships in 3-6 days

0

7

Toro 23-0920

COMPRESSION SPRING

$

$

Not available

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

9

Toro 23-0940

DOOR LATCH

$

$

Not available

10

Toro 33-4830

DOOR RETAINER

$

$

Not available

11

Toro 23-0880

BUSHING-NYLON

$

$

Not available

12

Toro 11-5639

DISCONTINUED

$

$

Not available

13

Toro 33-5660

DISCONTINUED

$

$

Not available

14

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

15

Toro 42-4010

SAFETY LATCH

$

$

Not available

16

Toro 33-4860

TORSION SPRING

$82.99

$

Usually ships in 3-6 days

0

17

Toro 43-4840

DOOR SPACER

$

$

Not available

18

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

19

Toro 29-4720

DISCONTINUED

$

$

Not available

20

Toro 321-7

SCREW-HH

$5.99

$

In Stock, Qty 5

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 37-7260

SCREW-HWH

$6.99

$

In Stock, Qty 9

0

24

Toro 48-2800

See Supercession: 63-9441
(Superseded to 63-9441)

$64.99

$

Usually ships in 3-6 days

0

25

Toro 52-2610

LABEL-GREASE, HP

$

$

Not available

26

Toro 49-8740

QUADRANT-REAR, LH

$30.99

$

In Stock, only 1 left!

0

Toro 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

$30.99

$

In Stock, only 3 left!

0

27

Toro 49-8790

SHAFT-AXLE, REAR

$

$

Not available

28

Toro 48-2170

CAP-END

$11.99

$

In Stock, Qty 6

0

29

Toro 36-4770

WASHER

$6.99

$

Usually ships in 3-6 days

0

30

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

31

Toro 49-8810

See Supercession: 66-7561
(Superseded to 66-7561)

$22.99

$

In Stock, only 3 left!

0

32

Toro 42-3510

PIVOT ARM ASM

$

$

Not available

33

Toro 302-56

FITTING-GREASE

$5.99

$

In Stock, Qty 8

0

34

Toro 47-2900

BUSHING

$6.99

$

In Stock, Qty 17

0

35

Toro 47-2890

BUSHING

$4.49

$

Usually ships in 3-6 days

0

36

Toro 36-4780

WASHER-PLAIN

$8.99

$

In Stock, Qty 20+

0

37

Toro 32121-108

PIN-SPIROL

$7.49

$

In Stock, only 1 left!

0

38

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 20+

0

39

Toro 33-3208

ROD-SHIELD

$17.99

$

In Stock, Qty 7

0

40

Toro 44-0580

See Supercession: 112-9989
(Superseded to 112-9989)

$31.99

$

In Stock, only 1 left!

0

41

Toro 46-7370

STEP PAD DECAL

$29.99

$

Usually ships in 3-6 days

0

42

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 49-8800

SPRING ARM ASM-FRONT

$50.99

$

Usually ships in 3-6 days

0

44

Toro 49-9180

PIVOT SCREW

$

$

Not available

45

Toro 53-7740

TIRE

$44.99

$

In Stock, Qty 6

0

46

Toro 52-2410

HUB-BEARING

$37.99

$

In Stock, Qty 13

0

47

Toro 52-2440

SPACER-BEARING

$11.99

$

In Stock, only 3 left!

0

48

Toro 52-2450

BEARING-WHEEL

$21.99

$

In Stock, Qty 20+

0

49

Toro 53-7780

See Supercession: 121-1365-06
(Superseded to 121-1365-06)

$20.99

$

In Stock, only 2 left!

0

50

Toro 3234-26

SCREW-HHF

$3.99

$

In Stock, Qty 9

0

51

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

52

Toro 52-2480

SPACER-WHEEL

$6.99

$

In Stock, Qty 20+

0

53

Toro 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

54

Toro 49-9150

WASHER-PIVOT

$1.49

$

Usually ships in 3-6 days

0

55

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

56

Toro 49-8760

QUADRANT-FRONT, LH

$30.99

$

In Stock, Qty 6

0

Toro 53-7720

See Supercession: 121-1380
(Superseded to 121-1380)

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0
