22031 - Toro 21" ProLine Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Engine Assembly Parts Diagram

21" ProLine Recycler Walk-Behind Mower

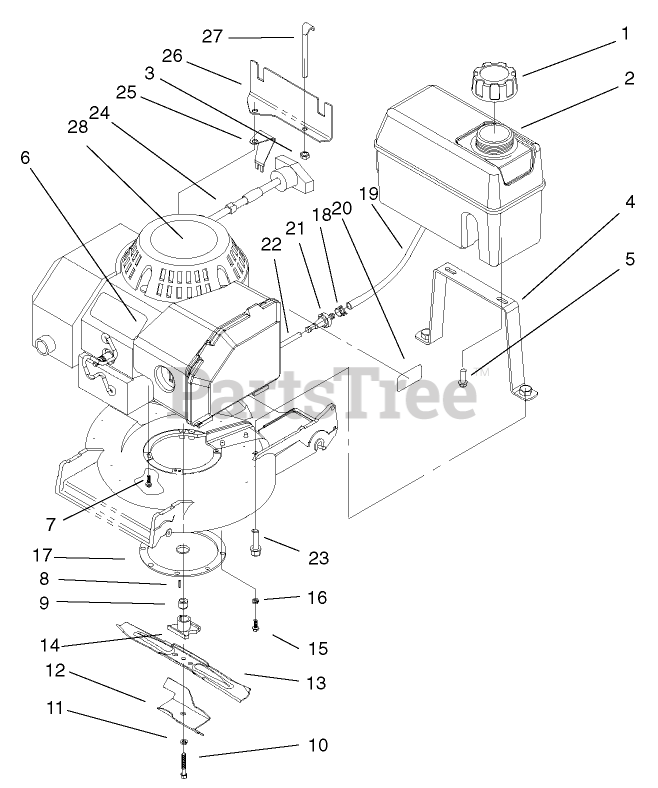

Engine Assembly Parts Diagram

  • Title

1

Toro 55-3575

GAS CAP ASM

$21.99

$

In Stock, only 3 left!

0

2

Toro 94-5827

See Supercession: 117-3510
(Superseded to 117-3510)

$107.99

$

In Stock, only 1 left!

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 84-9160-03

BASE-TANK
(Superseded to 107-4131-03)

$

$

Not available

5

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

6

Toro 71-1260

DECAL - PROLINE

$8.99

$

Usually ships in 3-6 days

0

7

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

8

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

9

Toro 52-2190

SPACER-BLADE RETAINER

$13.99

$

Usually ships in 3-6 days

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

12

Toro 92-1599-03

STIFFENER-BLADE

$96.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$35.99

$

In Stock, Qty 10

0

14

Toro 52-2170

See Supercession: 52-2170-03
(Superseded to 52-2170-03)

$84.99

$

In Stock, only 2 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 48-2591

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$118.99

$

In Stock, only 2 left!

0

18

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 20+

0

19

Toro 68-3633

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

20

Toro 62-7600

DECAL - FUEL

$

$

Not available

21

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

22

Toro 51-3211

HOSE-FUEL

$8.49

$

In Stock, only 1 left!

0

23

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

24

Toro 3290-443

DISCONTINUED

$

$

Not available

25

Toro 77-0520-03

SUPPORT-TANK BRACKET

$6.99

$

Usually ships in 3-6 days

0

26

Toro 74-2110-03

BRACKET-TANK

$

$

Not available

27

Toro 77-2840

RETAINER - FUEL TANK

$

$

Not available

28

Toro 77-0040

DECAL-2 CYC RECOIL COMM

$14.99

$

Usually ships in 3-6 days

0
