22037 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Gas Tank Assembly Parts Diagram

Walk-Behind Mower

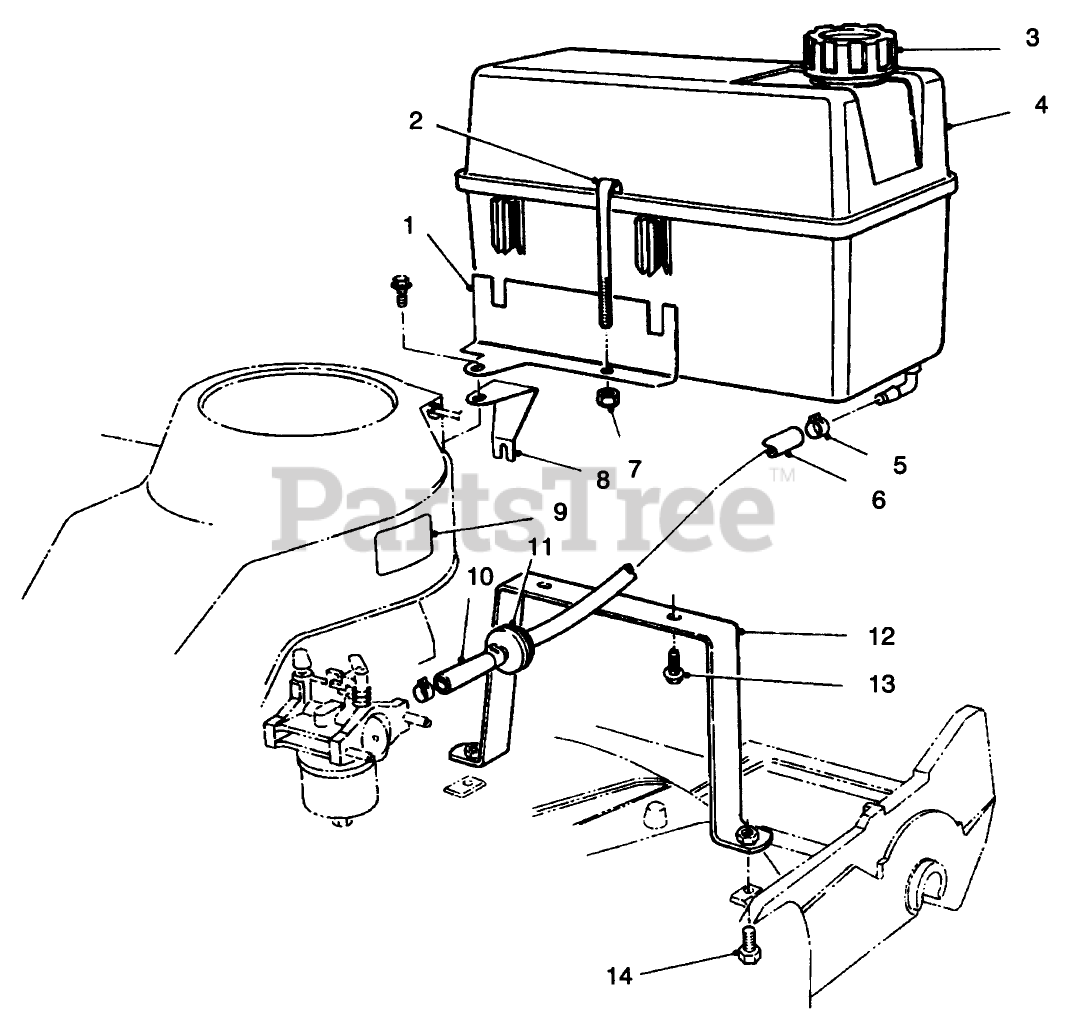

Gas Tank Assembly Parts Diagram

  • Title

1

Toro 74-2110

See Supercession: 74-2110-03
(Superseded to 74-2110-03)

$

$

Not available

2

Toro 77-2840

RETAINER - FUEL TANK

$

$

Not available

3

Toro 93-7199

GAS CAP ASM

$

$

Not available

4

Toro 82-8460

See Supercession: 17-4909
(Superseded to 17-4909)

$157.99

$

Usually ships in 3-6 days

0

5

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 20+

0

6

Toro 51-3214

HOSE-FUEL

$5.99

$

In Stock, only 2 left!

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 77-0520

See Supercession: 77-0520-03
(Superseded to 77-0520-03)

$6.99

$

Usually ships in 3-6 days

0

9

Toro 93-6659

DECAL-FUEL, 2 CYCLE

$8.99

$

Usually ships in 3-6 days

0

10

Toro 51-3211

HOSE-FUEL

$8.49

$

In Stock, only 1 left!

0

11

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

12

Toro 84-9160

See Supercession: 84-9160-03
(Superseded to 84-9160-03)

$47.99

$

Usually ships in 3-6 days

0

13

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

14

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
